ASV40L-AETNKA (2009)

Toyota Camry (Jpp)

Production Jan 2009 - Aug 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )2ARFE..JPP

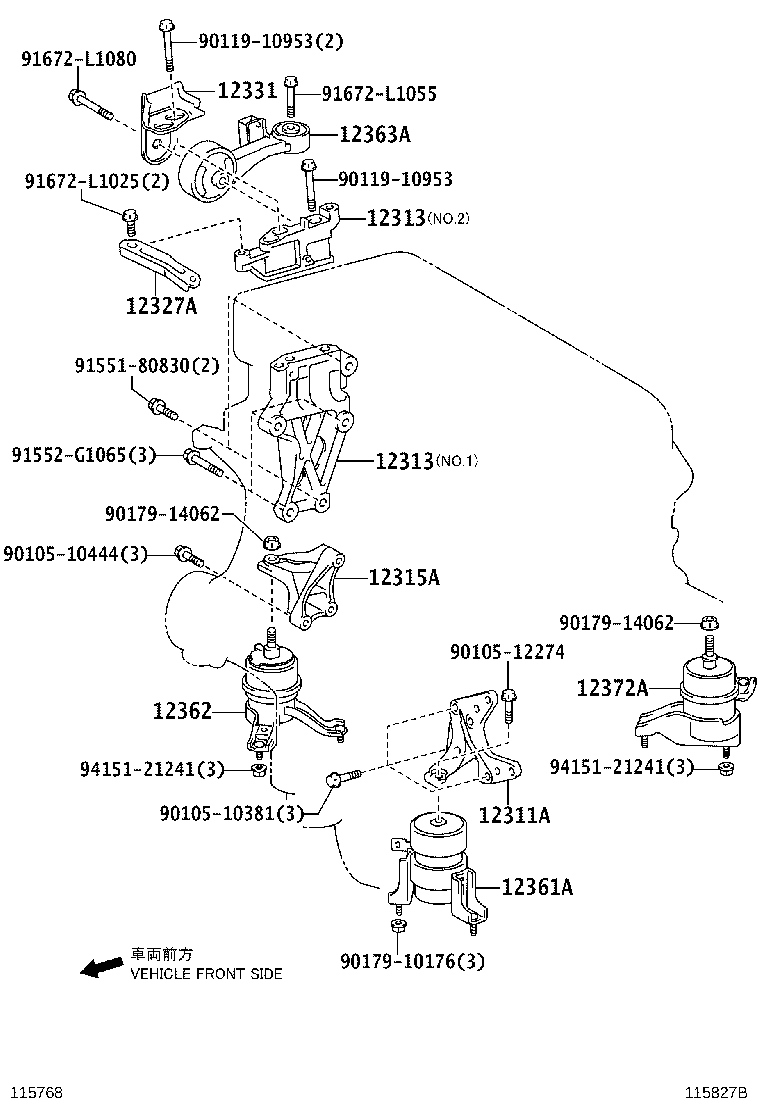

Click highlighted areas on diagram

diagram 12311A 12313 12313 12315A 12327A 12331 12361A 12362 12363A 12372A 9010510381 9010510444 9010512274 9011910953 9011910953 9017910176 9017914062 9017914062 9155180830 91552G1065 91672L1025 91672L1055 91672L1080 9415121241 9415121241
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-36030

2ARFE..ASV40..JPP

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-36010

2ARFE..ASV40..JPP

NO.1

 1
12313-36030

2ARFE..ASV40..JPP

NO.2

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-36010

2ARFE..ASV40..JPP

NO.1

 1
12313-36030

2ARFE..ASV40..JPP

NO.2

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-36010

2ARFE..ASV40..JPP

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-36010

2ARFE..ASV40..JPP

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-36020

2ARFE..ASV40..JPP

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28220

2ARFE..ASV40..JPP

 1
12361-28221

2ARFE..ASV40..JPP

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-36030

2ARFE..ASV40..JPP

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-36020

2ARFE..ASV40..JPP

 1
12363-36021

2ARFE..ASV40..JPP

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-28200

2ARFE..ASV40..JPP

 1
Common parts
90105-10381
90105-10444
90105-12274
90119-10953
90179-10176
90179-14062
91551-80830
91552-G1065
91672-L1025
91672-L1055
91672-L1080
94151-21241
