ASV40L-AETNKA (2009)
Toyota Camry (Jpp)

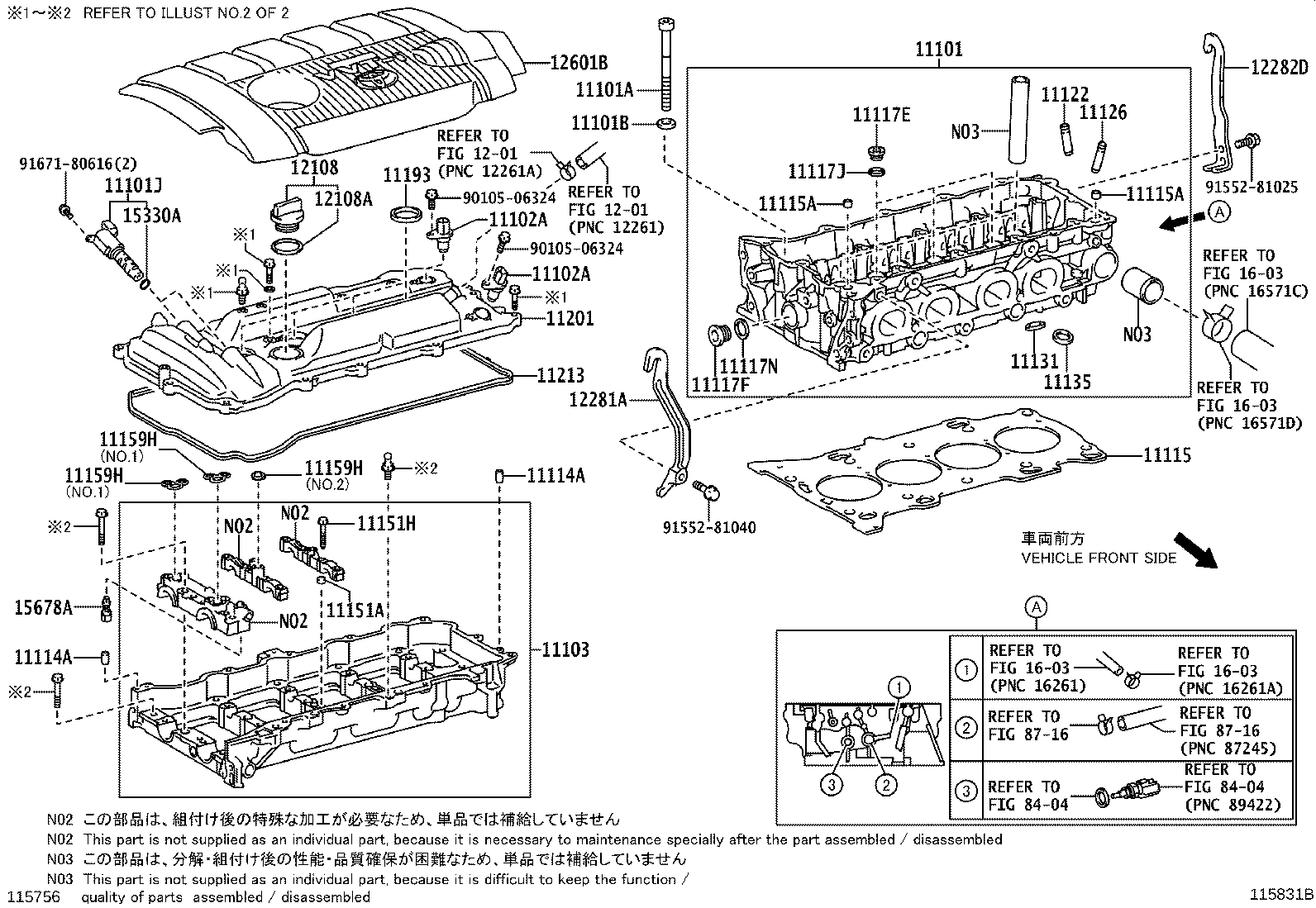

ILLUST NO. 1 OF 2(0901- )2ARFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39715 |
2ARFE..ASV40..JPP |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
2ARFE..ASV40..JPP |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2ARFE..ASV40..JPP |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-37010 |
2ARFE..ASV40..JPP |
2 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
2ARFE..ASV40..JPP |
2 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
2ARFE..ASV40..JPP |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-36010 |
2ARFE..ASV40..JPP |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06003 |
2ARFE..ASV40..JPP L=14,OD=6 |
2 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06003 |
2ARFE..ASV40..JPP L=14,OD=6 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-36030 |
2ARFE..ASV40..JPP |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
2ARFE..ASV40..JPP |
2 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
2ARFE..ASV40..JPP |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
2ARFE..ASV40..JPP |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-24011 |
2ARFE..ASV40..JPP |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-20004 |
2ARFE..ASV40..JPP |
3 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-24246 |
2ARFE..ASV40..JPP |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31050 |
2ARFE..ASV40..JPP STD |
8 | ||
| 11123-31050 |
2ARFE..ASV40..JPP O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
2ARFE..ASV40..JPP O/S 0.05 |
8 | ||
| 11126-31030 |
2ARFE..ASV40..JPP STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-36020 |
2ARFE..ASV40..JPP O/S 0.03 |
8 | ||
| 11132-36030 |
2ARFE..ASV40..JPP O/S 0.03 |
8 | ||
| 11131-36020 |
2ARFE..ASV40..JPP STD |
8 | ||
| 11131-36030 |
2ARFE..ASV40..JPP STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-36010 |
2ARFE..ASV40..JPP STD |
8 | ||
| 11136-36010 |
2ARFE..ASV40..JPP O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
2ARFE..ASV40..JPP L=12.5,OD=8 |
10 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
2ARFE..ASV40..JPP |
11 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-36011 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 90430-10024 |
2ARFE..ASV40..JPP NO.2 |
1 | ||
| 11159-36010 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-36011 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 90430-10024 |
2ARFE..ASV40..JPP NO.2 |
1 | ||
| 11159-36010 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-36011 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 90430-10024 |
2ARFE..ASV40..JPP NO.2 |
1 | ||
| 11159-36010 |
2ARFE..ASV40..JPP NO.1 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-36010 |
2ARFE..ASV40..JPP |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-36010 |
2ARFE..ASV40..JPP |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-36020 |
2ARFE..ASV40..JPP |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-31010 |
2ARFE..ASV40..JPP |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2ARFE..ASV40..JPP |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-36020 |
2ARFE..ASV40..JPP |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-36021 |
2ARFE..ASV40..JPP |
1 | ||
| 12282-36020 |
2ARFE..ASV40..JPP |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-36070 |
2ARFE..ASV40..JPP TOYOTA MARK:BLACK |
1 | ||
| 12601-36010 |
2ARFE..ASV40..JPP TOYOTA MARK:SILVER |
1 | ||
| 12601-36110 |
2ARFE..ASV40..JPP |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2ARFE..ASV40..JPP |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-37010 |
2ARFE..ASV40..JPP |
1 | ||
| Common parts | ||||
| 90105-06324 | ||||
| 91552-81025 | ||||
| 91552-81040 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8404 | ||||
| 8716 | ||||

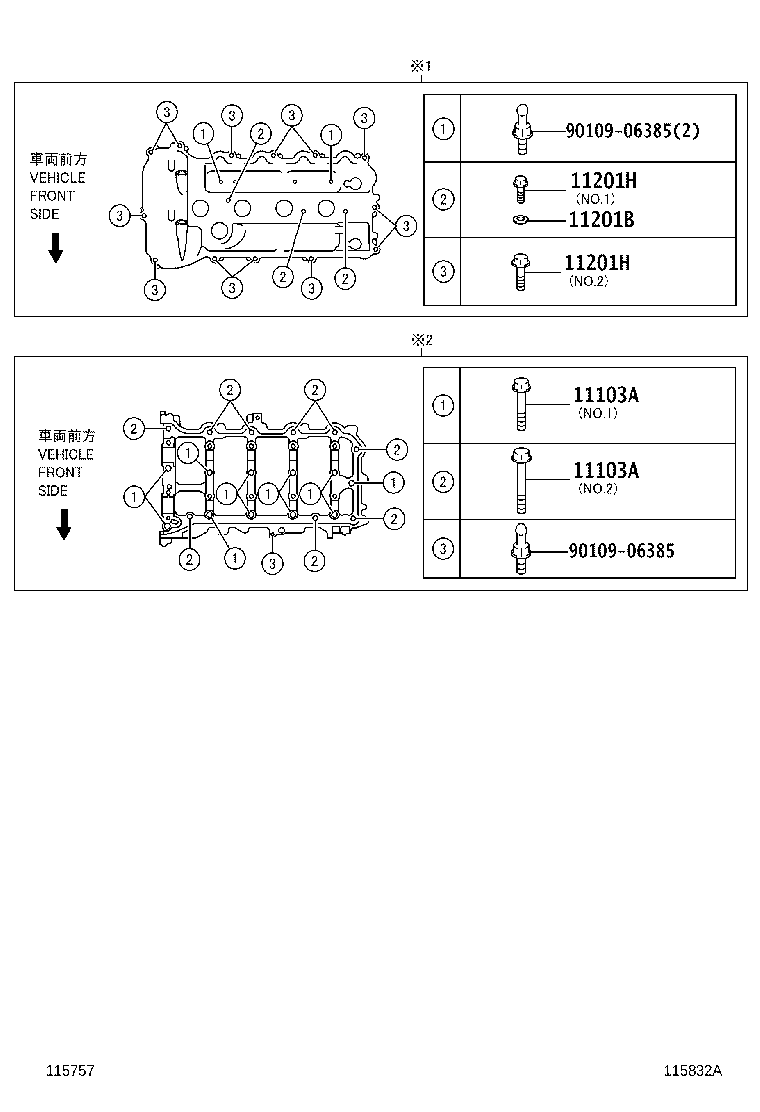

ILLUST NO. 2 OF 2(0901- )2ARFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-G0845 |
2ARFE..ASV40..JPP NO.2 |
9 | ||
| 90105-08455 |
2ARFE..ASV40..JPP NO.1 |
11 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-G0845 |
2ARFE..ASV40..JPP NO.2 |
9 | ||
| 90105-08455 |
2ARFE..ASV40..JPP NO.1 |
11 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-05008 |
2ARFE..ASV40..JPP |
3 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-A0625 |
2ARFE..ASV40..JPP NO.2 |
13 | ||
| 91551-80635 |
2ARFE..ASV40..JPP NO.1 |
3 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-A0625 |
2ARFE..ASV40..JPP NO.2 |
13 | ||
| 91551-80635 |
2ARFE..ASV40..JPP NO.1 |
3 | ||
| Common parts | ||||
| 90109-06385 | ||||
