ASV40L-AETGKA (2009)

Toyota Camry (Jpp)

Production Jan 2009 - Aug 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )2ARFE..JPP

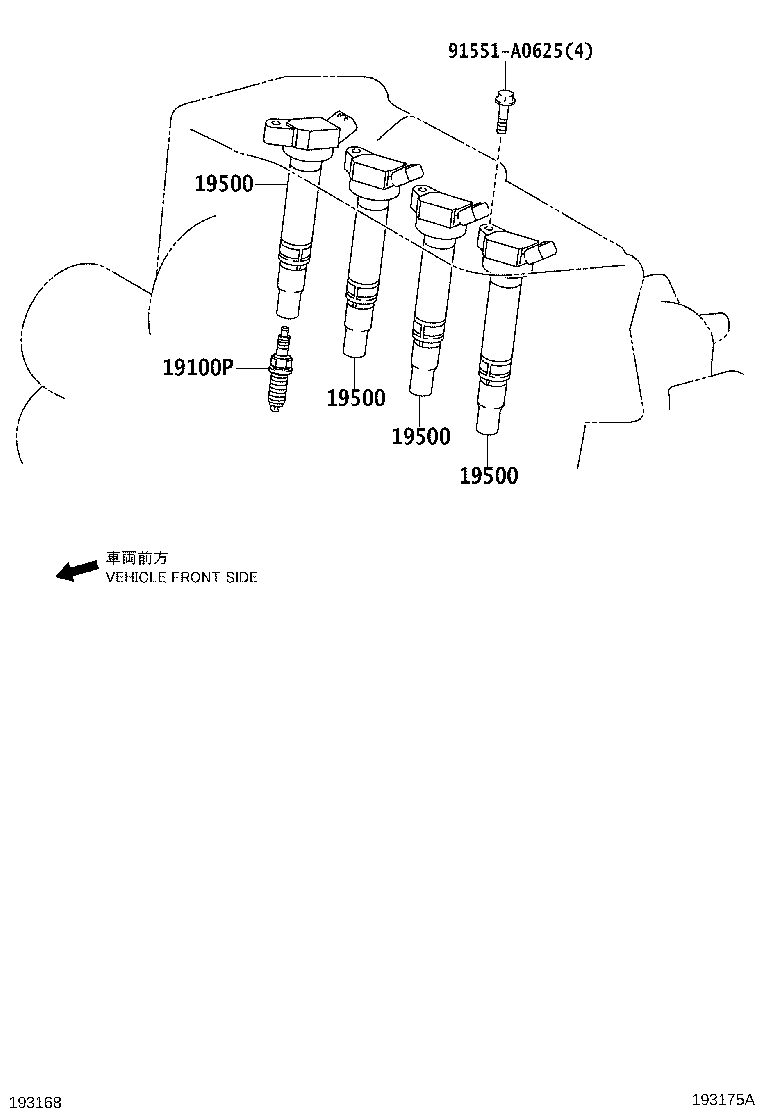

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 91551A0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01233

2ARFE..ASV40..JPP

SK16HR11

 4
19500 - COIL ASSY, IGNITION
90919-02256

2ARFE..ASV40..JPP

 4
19500 - COIL ASSY, IGNITION
90919-02256

2ARFE..ASV40..JPP

 4
19500 - COIL ASSY, IGNITION
90919-02256

2ARFE..ASV40..JPP

 4
19500 - COIL ASSY, IGNITION
90919-02256

2ARFE..ASV40..JPP

 4
Common parts
91551-A0625
