ASV40L-AETGKA (2009)

Toyota Camry (Jpp)

Production Jan 2009 - Aug 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )2ARFE..JPP

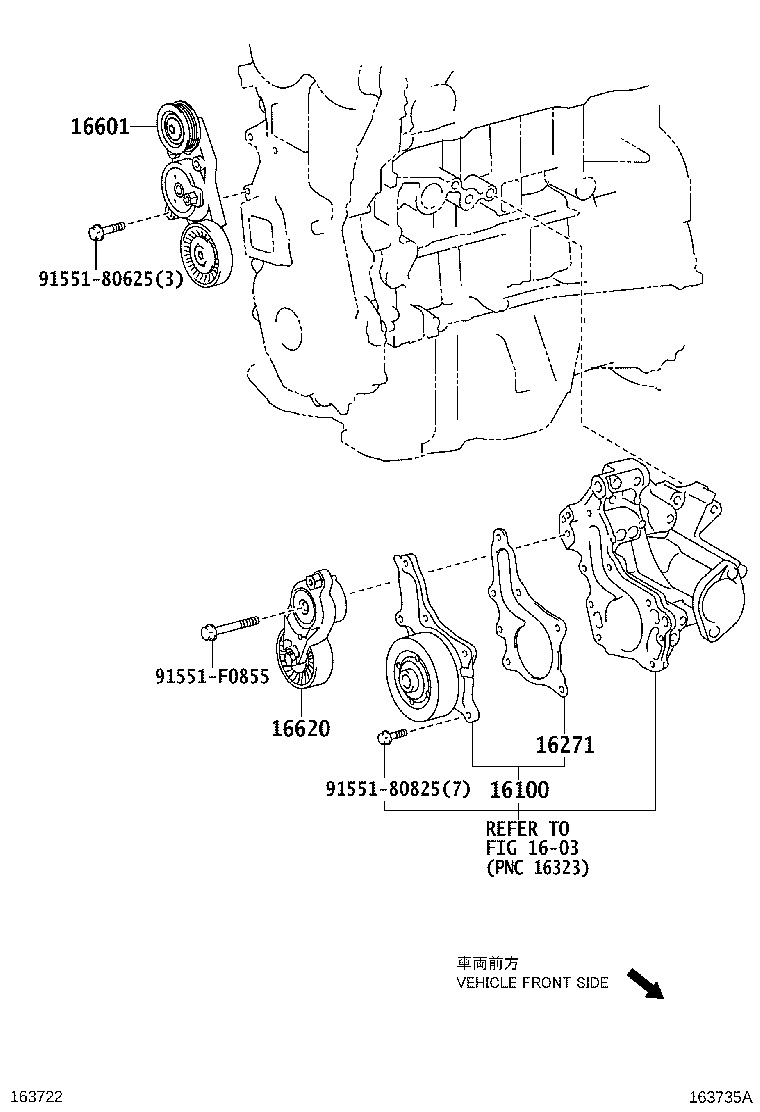

Click highlighted areas on diagram

diagram 1603 16100 16271 16601 16620 9155180625 9155180825 91551F0855
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39515

2ARFE..ASV40..JPP

 1
16271 - GASKET, WATER PUMP
16271-36010

2ARFE..ASV40..JPP

 1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-0V010

2ARFE..ASV40..JPP

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-36030

2ARFE..ASV40..JPP

 1
Common parts
91551-80625
91551-80825
91551-F0855
Linked diagrams
1603
