ACV40L-AEAGKA (2006)

Toyota Camry (Jpp)

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0901)JPP

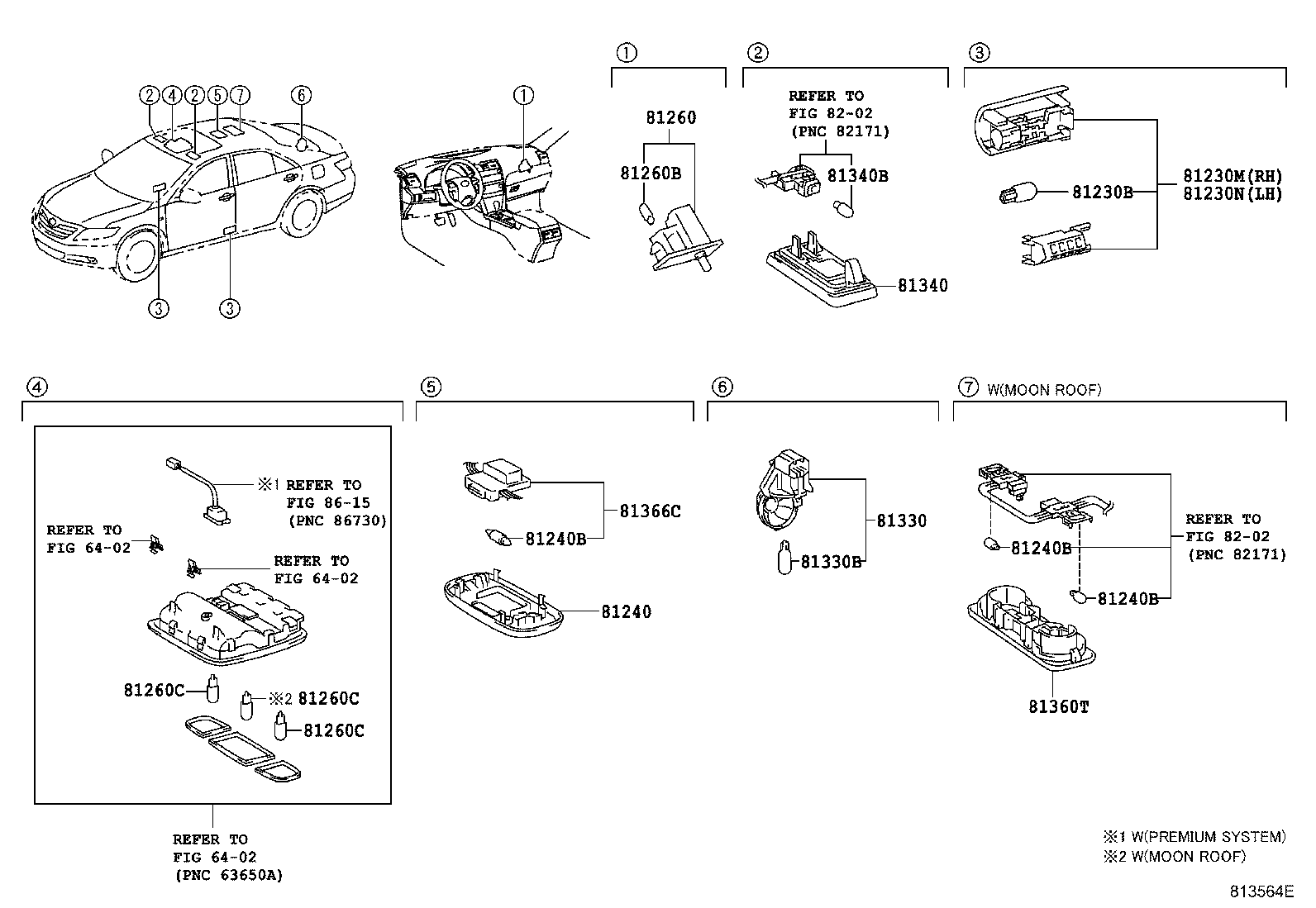

Click highlighted areas on diagram

diagram 6402 6402 6402 81230B 81230M 81230N 81240 81240B 81240B 81240B 81260 81260B 81260C 81260C 81260C 81330 81330B 81340 81340B 81360T 81366C 8202 8202 8615
Part # Description Qty Price
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ACV40,GSV40..JPP

12V 5W

 2
81230M - LAMP ASSY, COURTESY, RH
81230-47010

ACV40,GSV40..JPP

 1
81230N - LAMP ASSY, COURTESY, LH
81230-47010

ACV40,GSV40..JPP

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-52040B0

ACV40,GSV40..JPP..LE

GRAY,TRIM1#

 1
81240-52040E0

ACV40,GSV40..JPP..LE

GREGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11062

ACV40,GSV40..JPP..LE

12V 8W,MOON ROOF-WITH

 2
90981-14011

ACV40,GSV40..JPP..LE

12V 8W

 1
90981-11062

ACV40,GSV40..JPP..XLE

12V 8W

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11062

ACV40,GSV40..JPP..LE

12V 8W,MOON ROOF-WITH

 2
90981-14011

ACV40,GSV40..JPP..LE

12V 8W

 1
90981-11062

ACV40,GSV40..JPP..XLE

12V 8W

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11062

ACV40,GSV40..JPP..LE

12V 8W,MOON ROOF-WITH

 2
90981-14011

ACV40,GSV40..JPP..LE

12V 8W

 1
90981-11062

ACV40,GSV40..JPP..XLE

12V 8W

 2
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ACV40,GSV40..JPP

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACV40,GSV40..JPP

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..XLE

12V 5W

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W

 2
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH

 3
81260C - BULB(FOR MAP LAMP)
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..XLE

12V 5W

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W

 2
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH

 3
81260C - BULB(FOR MAP LAMP)
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM&GARAGE OPENER-WITH

 3
90084-81002

ACV40,GSV40..JPP..XLE

12V 5W

 3
90084-81002

ACV40,GSV40..JPP..LE

12V 5W

 2
90084-81002

ACV40,GSV40..JPP..LE

12V 5W,MOON ROOF-WITH

 3
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

ACV40,GSV40..JPP

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

ACV40,GSV40..JPP

12V 3.8W

 1
81340 - LAMP ASSY, VANITY
81340-30100E1

ACV40,GSV40..JPP..XLE

GREGE,TRIM4#

 2
81340-30100E1

ACV40,GSV40..JPP..LE

MOON ROOF-WITH,GREGE,TRIM4#

 2
81340-30100B1

ACV40,GSV40..JPP..LE

MOON ROOF-WITH,GRAY,TRIM1#

 2
81340-30100B1

ACV40,GSV40..JPP..XLE

GRAY,TRIM1#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ACV40,GSV40..JPP..XLE

12V 8W

 2
90981-11062

ACV40,GSV40..JPP..LE

12V 8W,MOON ROOF-WITH

 2
81360T - LAMP ASSY, SPOT
81360-30040B1

ACV40,GSV40..JPP..XLE

GRAY,TRIM1#

 1
81360-30040B1

ACV40,GSV40..JPP..LE

MOON ROOF-WITH,GRAY,TRIM1#

 1
81360-30040E0

ACV40,GSV40..JPP..XLE

GREGE,TRIM4#

 1
81360-30040E0

ACV40,GSV40..JPP..LE

MOON ROOF-WITH,GREGE,TRIM4#

 1
81366C - BASE, ROOM LAMP SWITCH
81366-68010

ACV40,GSV40..JPP..LE

 1
