Toyota Camry (jpp) ACV30 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
CAMRY (JPP)
ACV30L-AEPGKA (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004

Engine 2AZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

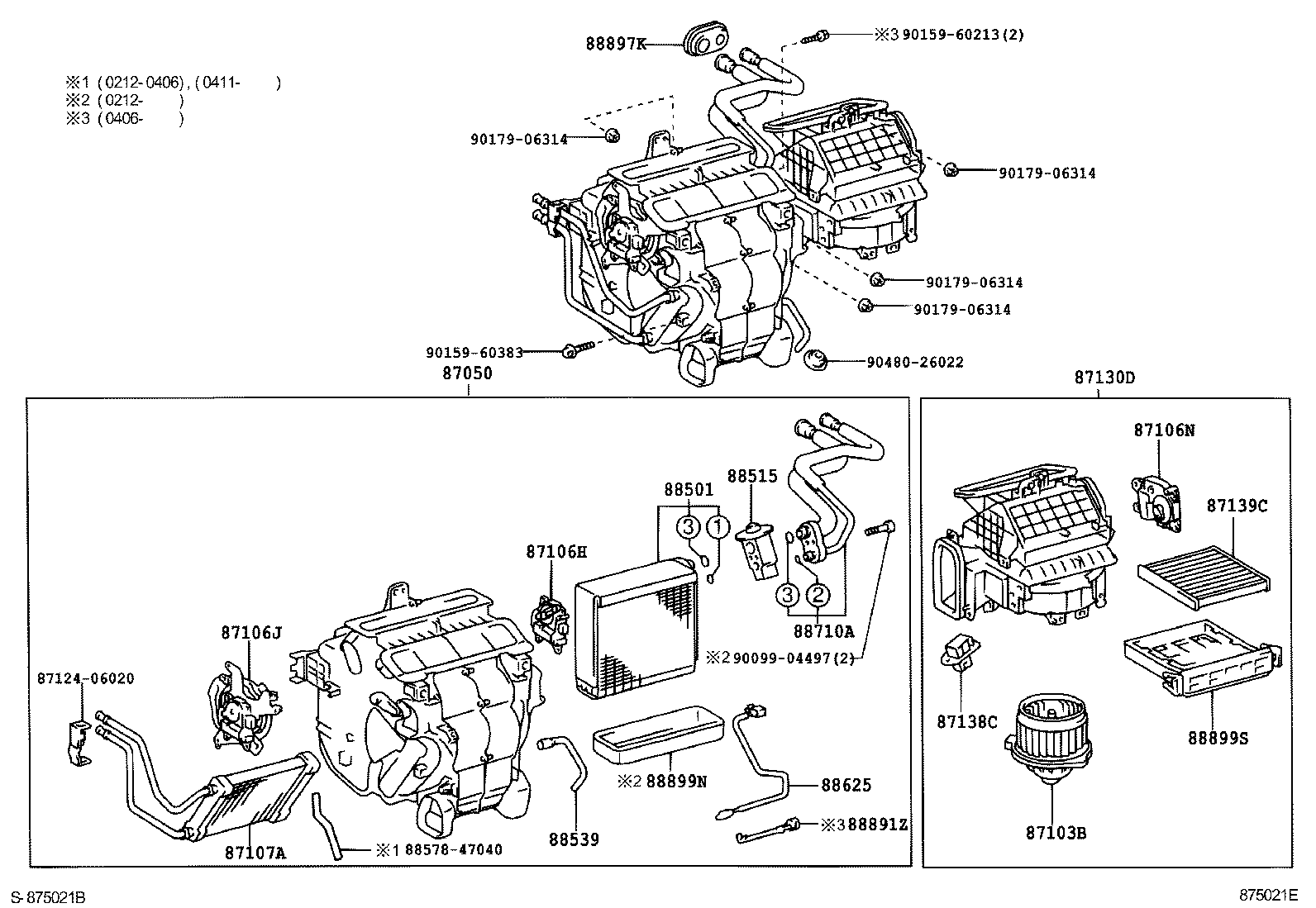

ILLUST NO. 1 OF 2(0107- )JPP..LE,SE

Click highlighted areas on diagram

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-06220	ACV30,MCV30..JPP..XLE	07/2001 - 07/2002	1
87050-06221	ACV30,MCV30..JPP..XLE	07/2002 - 12/2002	1
87050-06251	ACV30,MCV30..JPP..(LE,SE)	07/2002 - 12/2002	1
87050-06250	ACV30,MCV30..JPP..(LE,SE)	07/2001 - 07/2002	1
87050-06252	ACV30,MCV3#..JPP..(LE,SE)	12/2002 - 06/2004	1
87050-06222	ACV30,MCV30..JPP..XLE	12/2002 - 06/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-06030	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-07080	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
87106-07081	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-06130	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87106-06140	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-06110	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87106-06120	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-06040	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
87130D - BLOWER ASSY
87130-06090	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87130-06080	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87138C - RESISTOR, BLOWER
87138-41020	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87139C - FILTER, CLEAN AIR
87139-06030	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
87139-32010	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-07020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88515 - VALVE, COOLER EXPANSION
88515-07020	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
88515-07040	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-06030	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-33170	ACV30,MCV3#..JPP..(LE,SE)	12/2002 - 06/2004	2
88625-33170	ACV30,MCV30..JPP..XLE	12/2002 - 06/2004	1
88625-17130	ACV30,MCV30..JPP	07/2001 - 12/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-07060	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88897K - GROMMET, (FOR COOLER PIPE)
88897-33020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88899N - PLATE, COVER
88899-41020	ACV30,MCV3#..JPP	12/2002 - 06/2004	1
88899S - FRAME, FRONT COOLER
88899-06020	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
88899-41010	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
Common parts
87124-06020
88578-47040
90099-04497
90159-60213
90159-60383
90179-06314
90480-26022

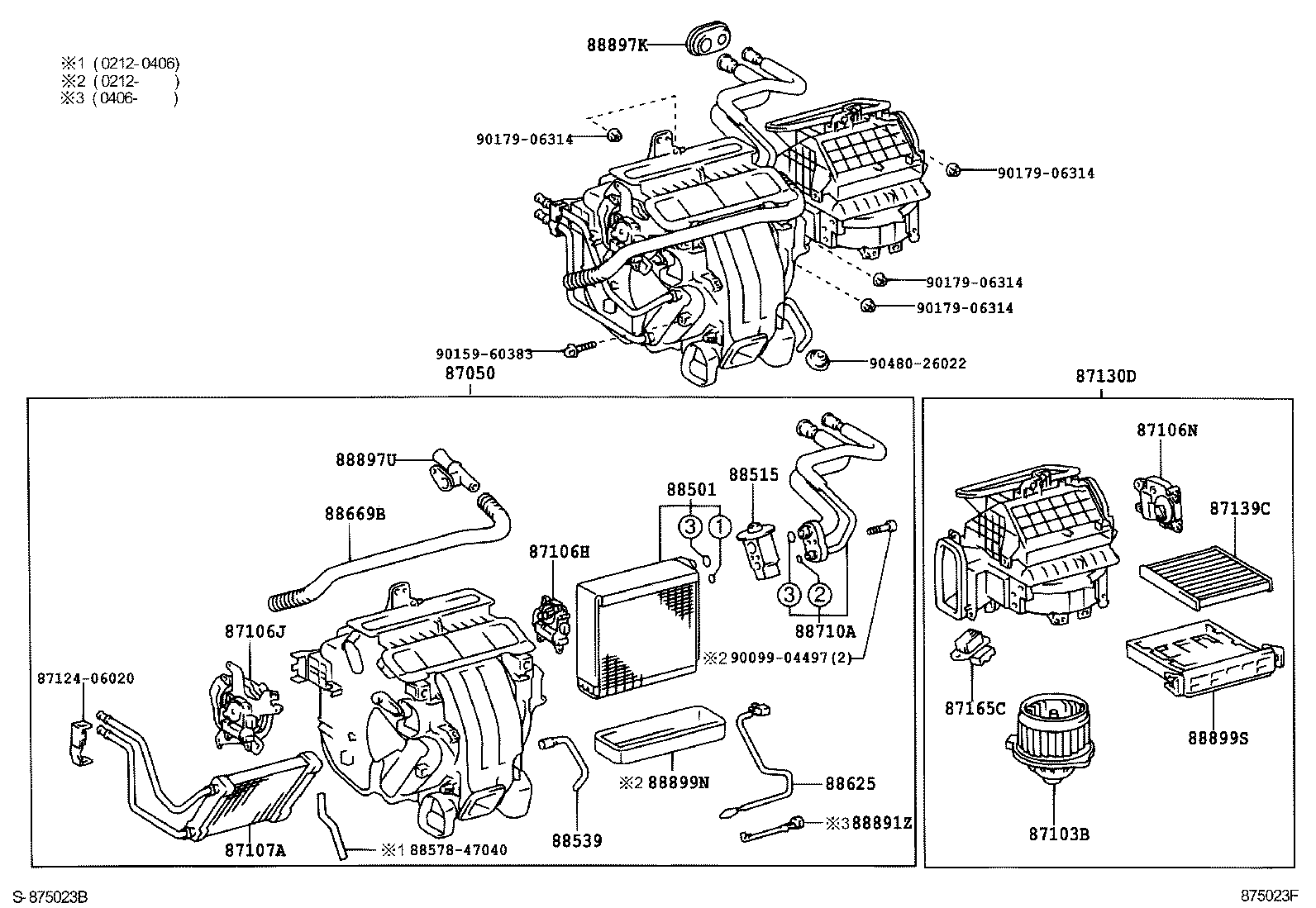

ILLUST NO. 1 OF 2(0107- )JPP..XLE

Click highlighted areas on diagram

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-06220	ACV30,MCV30..JPP..XLE	07/2001 - 07/2002	1
87050-06221	ACV30,MCV30..JPP..XLE	07/2002 - 12/2002	1
87050-06251	ACV30,MCV30..JPP..(LE,SE)	07/2002 - 12/2002	1
87050-06250	ACV30,MCV30..JPP..(LE,SE)	07/2001 - 07/2002	1
87050-06252	ACV30,MCV3#..JPP..(LE,SE)	12/2002 - 06/2004	1
87050-06222	ACV30,MCV30..JPP..XLE	12/2002 - 06/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-06030	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-07080	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
87106-07081	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-06130	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87106-06140	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-06110	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87106-06120	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-06040	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
87130D - BLOWER ASSY
87130-06090	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
87130-06080	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
87139C - FILTER, CLEAN AIR
87139-06030	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
87139-32010	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
87165C - CONTROL, BLOWER MOTOR
87165-13010	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-07020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88515 - VALVE, COOLER EXPANSION
88515-07020	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
88515-07040	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-06030	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88625 - THERMISTOR, COOLER, NO.1
88625-33170	ACV30,MCV3#..JPP..(LE,SE)	12/2002 - 06/2004	2
88625-33170	ACV30,MCV30..JPP..XLE	12/2002 - 06/2004	1
88625-17130	ACV30,MCV30..JPP	07/2001 - 12/2002	1
88669B - HOSE, COOLER AIR
88669-33060	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-07060	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88897K - GROMMET, (FOR COOLER PIPE)
88897-33020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
88897U - PIPE, ASPIRATOR
88897-12210	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
88899N - PLATE, COVER
88899-41020	ACV30,MCV3#..JPP	12/2002 - 06/2004	1
88899S - FRAME, FRONT COOLER
88899-06020	ACV30,MCV3#..JPP	12/2003 - 06/2004	1
88899-41010	ACV30,MCV3#..JPP	07/2001 - 12/2003	1
Common parts
87124-06020
88578-47040
90099-04497
90159-60383
90179-06314
90480-26022

ILLUST NO. 2 OF 2(0107- )JPP

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90068-14009
90068-14010
90069-08007
90069-08009
90069-08011
90099-14119
90099-14120
90099-14121
