ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )JPP

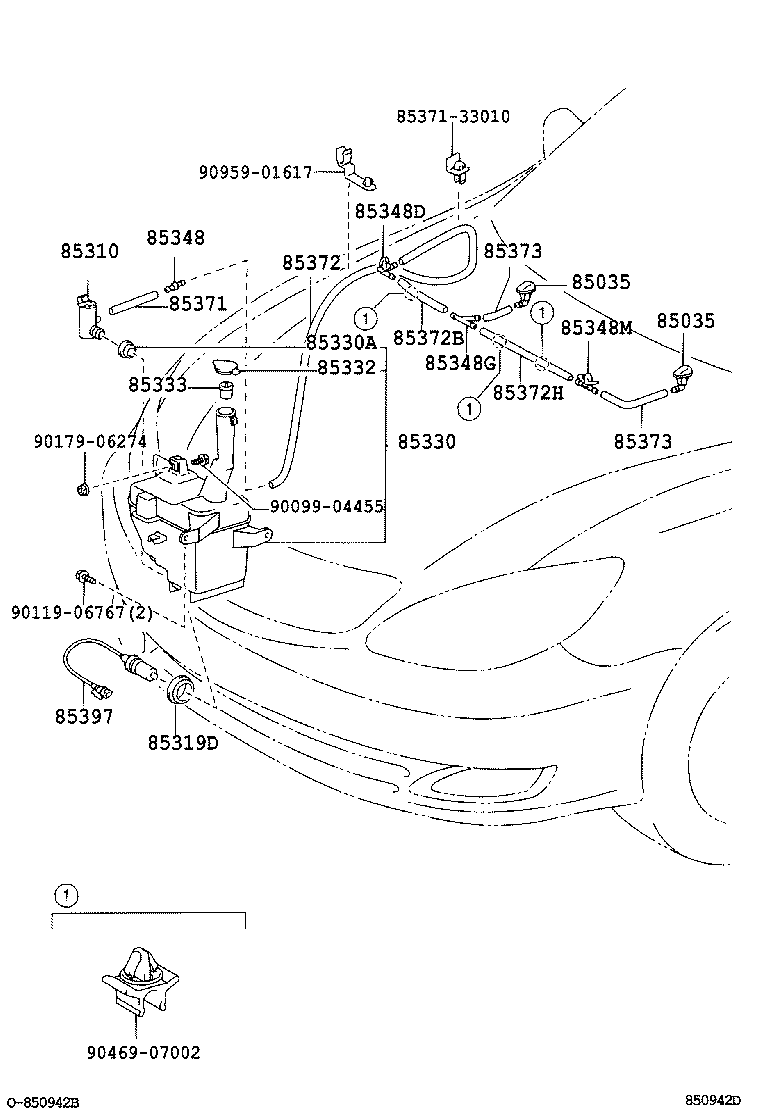

Click highlighted areas on diagram

diagram 85035 85035 85310 85319D 85330 85330A 85332 85333 85348 85348D 85348G 85348M 85371 8537133010 85372 85372B 85372H 85373 85373 85397 9009904455 9011906767 9017906274 9046907002 9095901617
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-AA040

ACV30,MCV30..JPP

 2
85381-AA042

ACV30,MCV3#..JPP

 2
85381-AA041

ACV30,MCV30..JPP

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-AA040

ACV30,MCV30..JPP

 2
85381-AA042

ACV30,MCV3#..JPP

 2
85381-AA041

ACV30,MCV30..JPP

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33020

ACV30,MCV3#..JPP

 1
85319D - PACKING, FRONT WASHER
85319-33230

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-33250

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-12470

ACV30,MCV3#..JPP

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85376-10250

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-20800

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

*H,L=100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

*H,L=1730

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

*H,L=350

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

*H,L=520

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33024

ACV30,MCV3#..JPP

L=170

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33024

ACV30,MCV3#..JPP

L=170

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-33230

ACV30,MCV31..JPP;MCV30..JPP..(LE,XLE)..5FC

 1
Common parts
85371-33010
90099-04455
90119-06767
90179-06274
90469-07002
90959-01617
