ACV30L-AEPGKA (2001)
Toyota Camry (Jpp)
Production
Jul 2001
-
Jun 2004
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )JPP

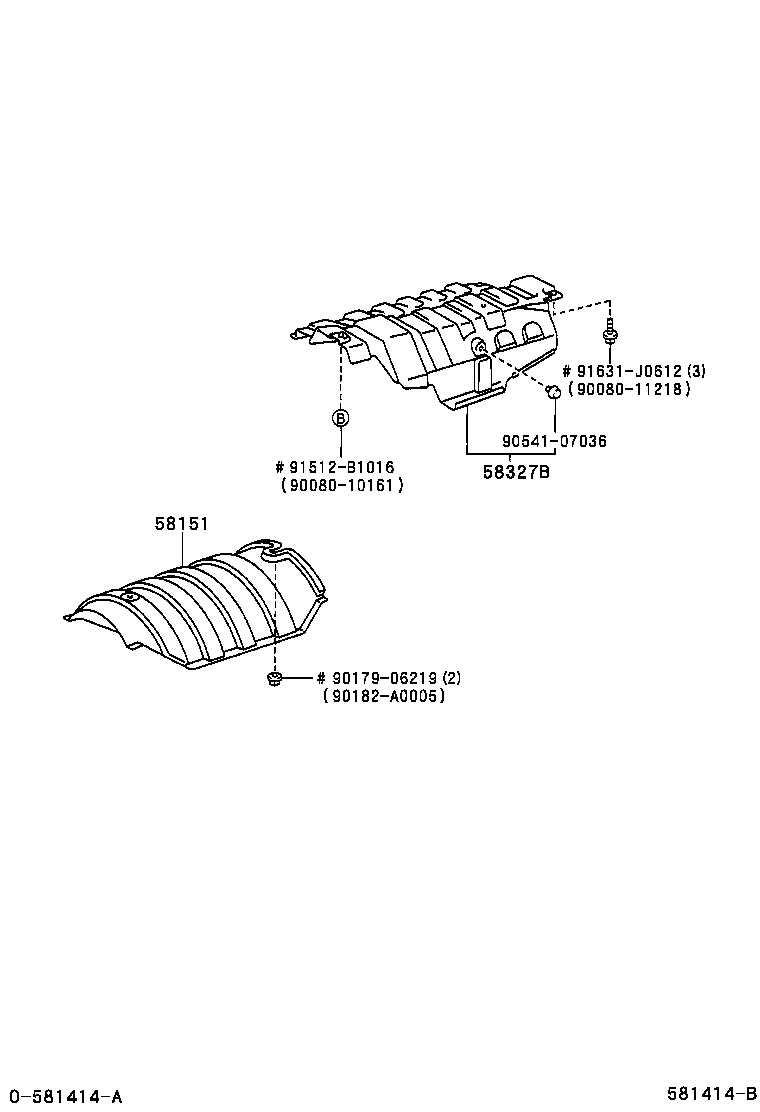

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-33040 |
ACV30,MCV30..JPP |
1 | ||
| 58152-33040 |
ACV30,MCV3#..JPP |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-33030 |
ACV30,MCV3#..JPP |
1 | ||
| 58327-33030 |
ACV30,MCV30..JPP |
1 | ||
| Common parts | ||||
| 90080-10161 | ||||
| 90080-11218 | ||||
| 90179-06219 | ||||
| 90182-A0005 | ||||
| 90541-07036 | ||||
| 91512-B1016 | ||||
| 91631-J0612 | ||||
