ACV30L-AEPGKA (2001)
Toyota Camry (Jpp)
(0107-0406)JPP

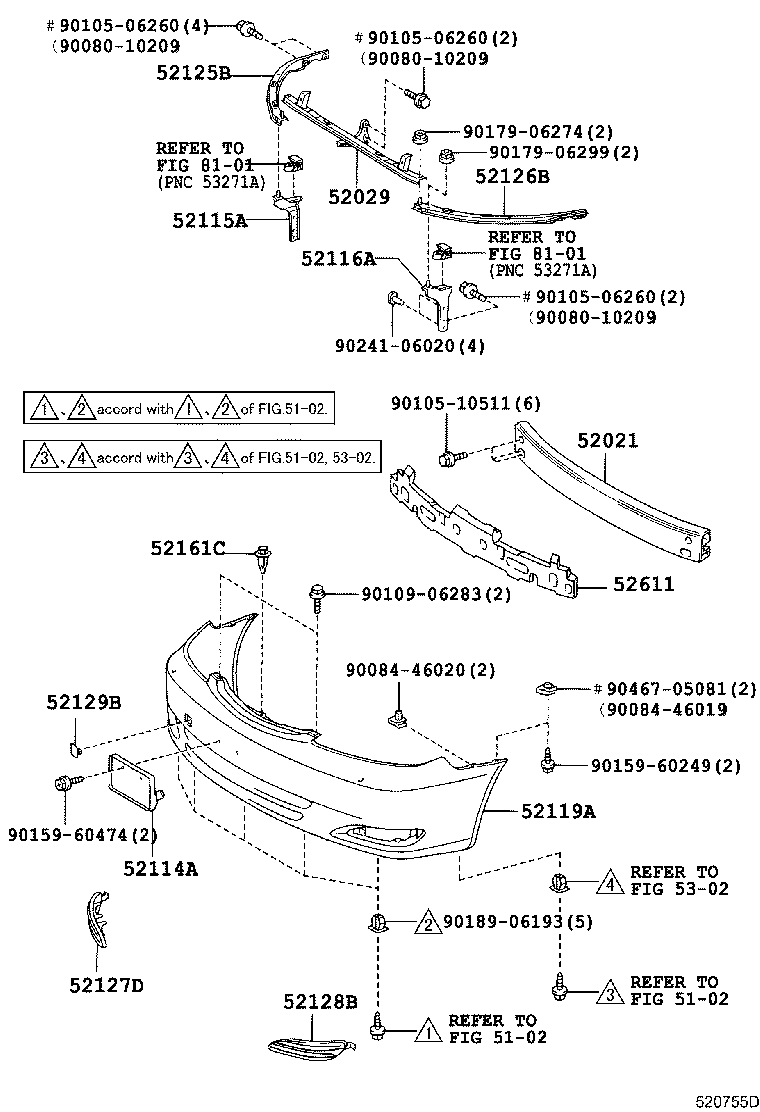

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-33110 |
ACV30,MCV3#..JPP |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-33070 |
ACV30,MCV3#..JPP |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 75111-33010 |
MCV31..JPP;ACV30..JPP..(LE,XLE);MCV30..JPP..(LE,XLE)..5FC |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-33060 |
ACV30,MCV3#..JPP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-33050 |
ACV30,MCV3#..JPP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-33924 |
ACV30,MCV3#..JPP PAINT REQ. |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-33050 |
ACV30,MCV3#..JPP |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-33050 |
ACV30,MCV3#..JPP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-33020A0 |
ACV30,MCV30..JPP..(LE,XLE) SUPER WHITE 2,040 |
1 | ||
| 52127-33020B0 |
ACV30,MCV30..JPP..(LE,XLE) SILVER ME.,1C8 |
1 | ||
| 52127-33020G0 |
ACV30,MCV30..JPP..(LE,XLE) DK. GREEN MC.,6S7 |
1 | ||
| 52127-33020J0 |
ACV30,MCV30..JPP..(LE,XLE) DK.BLUE MC.,8Q0 |
1 | ||
| 52127-33020D0 |
ACV30,MCV30..JPP..(LE,XLE) DK. RED MC.,3P5 |
1 | ||
| 52127-33020D1 |
ACV30,MCV30..JPP..(LE,XLE) DK. RED M.M.,3Q3 |
1 | ||
| 52127-33020C0 |
ACV30,MCV30..JPP..(LE,XLE) BLACK,202 |
1 | ||
| 52127-33020J1 |
ACV30,MCV30..JPP..(LE,XLE) BLUE M.M.,8Q2 |
1 | ||
| 52127-33020B1 |
ACV30,MCV30..JPP..(LE,XLE) GRAY M.M.,1E3 |
1 | ||
| 52127-33020E0 |
ACV30,MCV30..JPP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-33020B1 |
ACV30,MCV30..JPP..(LE,XLE) GRAY M.M.,1E3 |
1 | ||
| 52128-33020D0 |
ACV30,MCV30..JPP..(LE,XLE) DK. RED MC.,3P5 |
1 | ||
| 52128-33020D1 |
ACV30,MCV30..JPP..(LE,XLE) DK. RED M.M.,3Q3 |
1 | ||
| 52128-33020G0 |
ACV30,MCV30..JPP..(LE,XLE) DK. GREEN MC.,6S7 |
1 | ||
| 52128-33020J0 |
ACV30,MCV30..JPP..(LE,XLE) DK.BLUE MC.,8Q0 |
1 | ||
| 52128-33020B0 |
ACV30,MCV30..JPP..(LE,XLE) SILVER ME.,1C8 |
1 | ||
| 52128-33020C0 |
ACV30,MCV30..JPP..(LE,XLE) BLACK,202 |
1 | ||
| 52128-33020A0 |
ACV30,MCV30..JPP..(LE,XLE) SUPER WHITE 2,040 |
1 | ||
| 52128-33020E0 |
ACV30,MCV30..JPP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 52128-33020J1 |
ACV30,MCV30..JPP..(LE,XLE) BLUE M.M.,8Q2 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-33010A1 |
ACV30..JPP..LE..4FC 20TH ANNIVERSARY(USA),WHITE PEARL CS.,062 |
1 | ||
| 52129-33010B0 |
ACV30,MCV3#..JPP SILVER ME.,1C8 |
1 | ||
| 52129-33010A0 |
ACV30,MCV3#..JPP SUPER WHITE 2,040 |
1 | ||
| 52129-33010C0 |
ACV30,MCV3#..JPP BLACK,202 |
1 | ||
| 52129-33010G0 |
ACV30,MCV3#..JPP DK. GREEN MC.,6S7 |
1 | ||
| 52129-33010D0 |
ACV30,MCV3#..JPP DK. RED MC.,3P5 |
1 | ||
| 52129-33010J0 |
ACV30,MCV3#..JPP DK.BLUE MC.,8Q0 |
1 | ||
| 52129-33010D1 |
ACV30,MCV3#..JPP DK. RED M.M.,3Q3 |
1 | ||
| 52129-33010J1 |
ACV30,MCV3#..JPP BLUE M.M.,8Q2 |
1 | ||
| 52129-33010E0 |
ACV30,MCV3#..JPP BEIGE M. M.,4Q2 |
1 | ||
| 52129-33010B1 |
ACV30,MCV3#..JPP GRAY M.M.,1E3 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACV30,MCV3#..JPP |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-33121 |
ACV30,MCV3#..JPP |
1 | ||
| 52611-33120 |
ACV30,MCV3#..JPP |
1 | ||
| Common parts | ||||
| 90080-10209 | ||||
| 90084-46019 | ||||
| 90084-46020 | ||||
| 90105-06260 | ||||
| 90105-10511 | ||||
| 90109-06283 | ||||
| 90159-60249 | ||||
| 90159-60474 | ||||
| 90179-06274 | ||||
| 90179-06299 | ||||
| 90189-06193 | ||||
| 90241-06020 | ||||
| 90467-05081 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
