Toyota Camry (jpp) ACV30 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
US
CAMRY (JPP)
ACV30L-AEPGKA (2001)
4601 - PARKING BRAKE & CABLE

ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004

Engine 2AZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

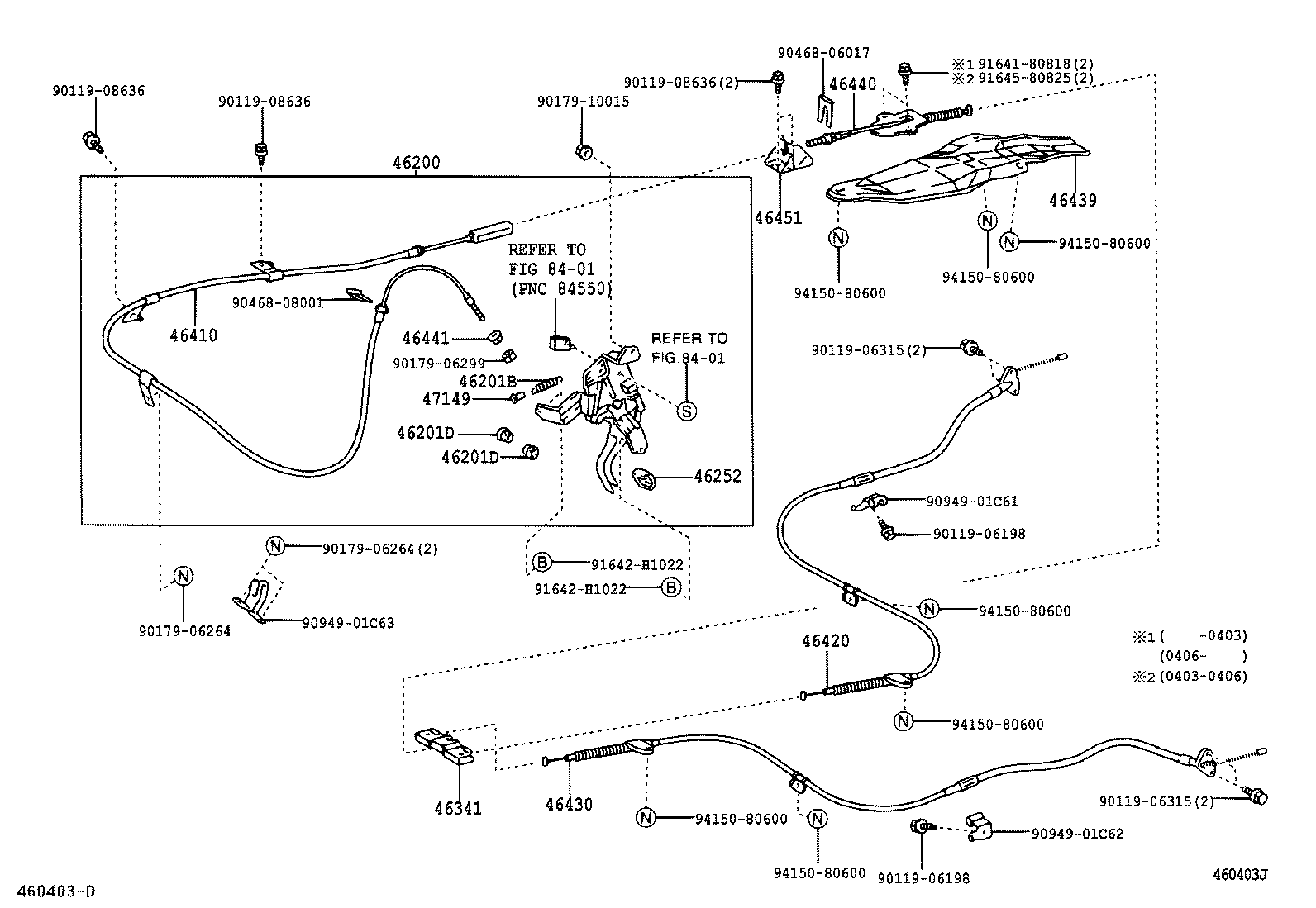

ILLUST NO. 1 OF 2(0107- )JPP..XLE

Click highlighted areas on diagram

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-33050	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46201B - SPRING, TENSION
90506-19005	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	2
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	2
46252 - PAD, PARKING PEDAL
46252-63010	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-33130	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
46410-33120	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-33090	ACV30..JPP..LE	07/2001 - 06/2004	1
46420-33100	MCV30..JPP;ACV30,MCV31..JPP..(SE,XLE)	07/2001 - 06/2004	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-33090	ACV30..JPP..LE	07/2001 - 06/2004	1
46430-33100	MCV30..JPP;ACV30,MCV31..JPP..(SE,XLE)	07/2001 - 06/2004	1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-33020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
46440 - CABLE ASSY, PARKING BRAKE, NO.4
46440-33030	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46451 - BRACKET, CABLE SUPPORT
46451-33040	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
47149 - DAMPER, RETURN SPRING
47149-22010	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
Common parts
90119-06198
90119-06315
90119-08636
90179-06264
90179-06299
90179-10015
90468-06017
90468-08001
90949-01C61
90949-01C62
90949-01C63
91641-80818
91642-H1022
91645-80825
94150-80600
Linked diagrams
8401

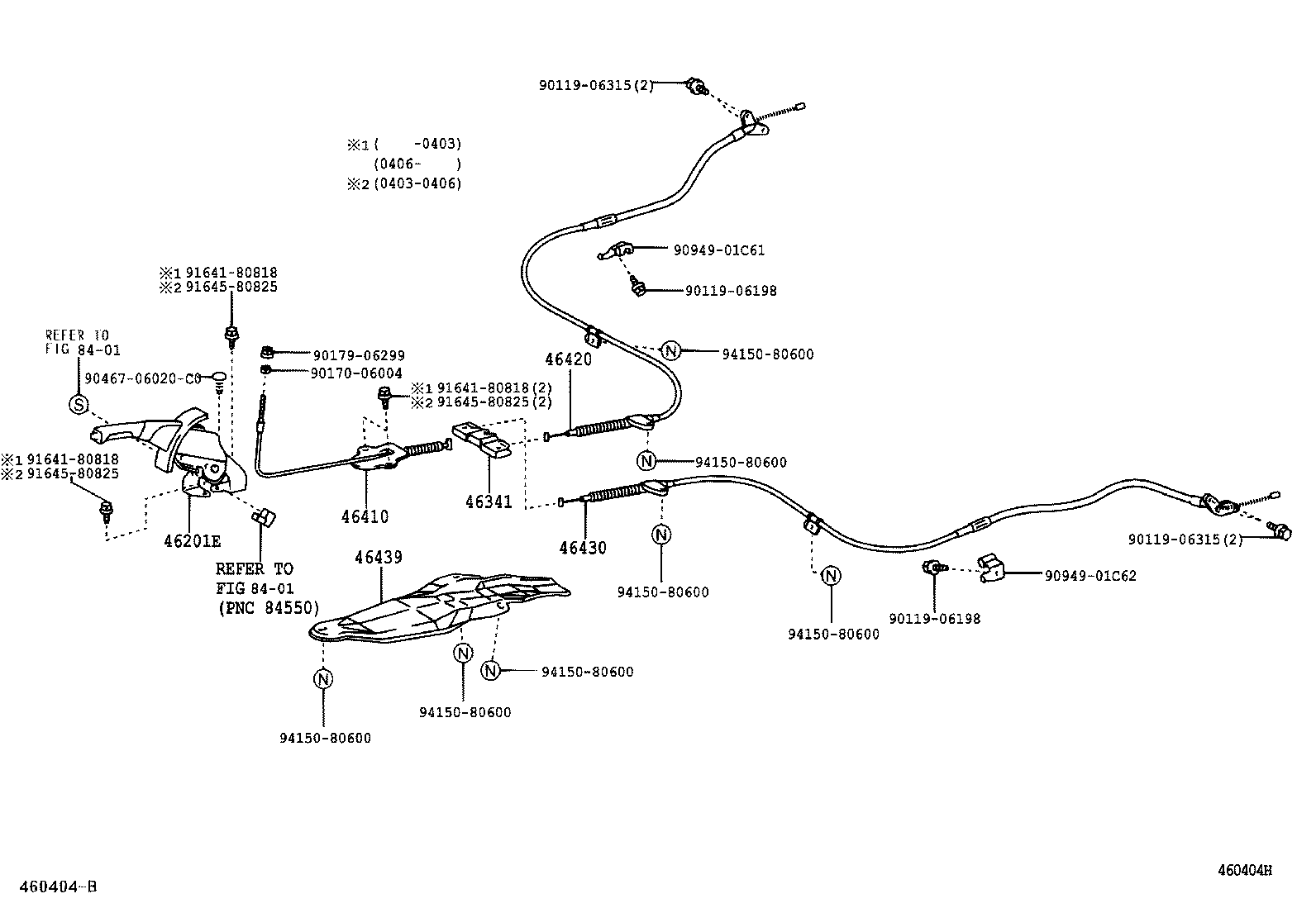

ILLUST NO. 1 OF 2(0107- )JPP..LE,SE

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-33160B0	ACV30..JPP..LE DK.CHARCOAL,TRIM1#	07/2001 - 07/2003	1
46201-33160E0	ACV30..JPP..LE SANDAL WOOD,TRIM4#	07/2001 - 07/2003	1
46201-33161B0	ACV30..JPP..LE DK.CHARCOAL,TRIM1#	07/2003 - 06/2004	1
46201-33161E0	ACV30..JPP..LE SANDAL WOOD,TRIM4#	07/2003 - 06/2004	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-33130	ACV30,MCV3#..JPP..(LE,SE)	07/2001 - 06/2004	1
46410-33120	ACV30,MCV30..JPP..XLE	07/2001 - 06/2004	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-33090	ACV30..JPP..LE	07/2001 - 06/2004	1
46420-33100	MCV30..JPP;ACV30,MCV31..JPP..(SE,XLE)	07/2001 - 06/2004	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-33090	ACV30..JPP..LE	07/2001 - 06/2004	1
46430-33100	MCV30..JPP;ACV30,MCV31..JPP..(SE,XLE)	07/2001 - 06/2004	1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-33020	ACV30,MCV3#..JPP	07/2001 - 06/2004	1
Common parts
90119-06198
90119-06315
90170-06004
90179-06299
90467-06020C0
90949-01C61
90949-01C62
91641-80818
91645-80825
94150-80600
Linked diagrams
8401

ACV30L-AEPGKA (2001)

ILLUST NO. 1 OF 2(0107- )JPP..XLE

ILLUST NO. 1 OF 2(0107- )JPP..LE,SE
