ACV30L-AEPGKA (2001)
Toyota Camry (Jpp)

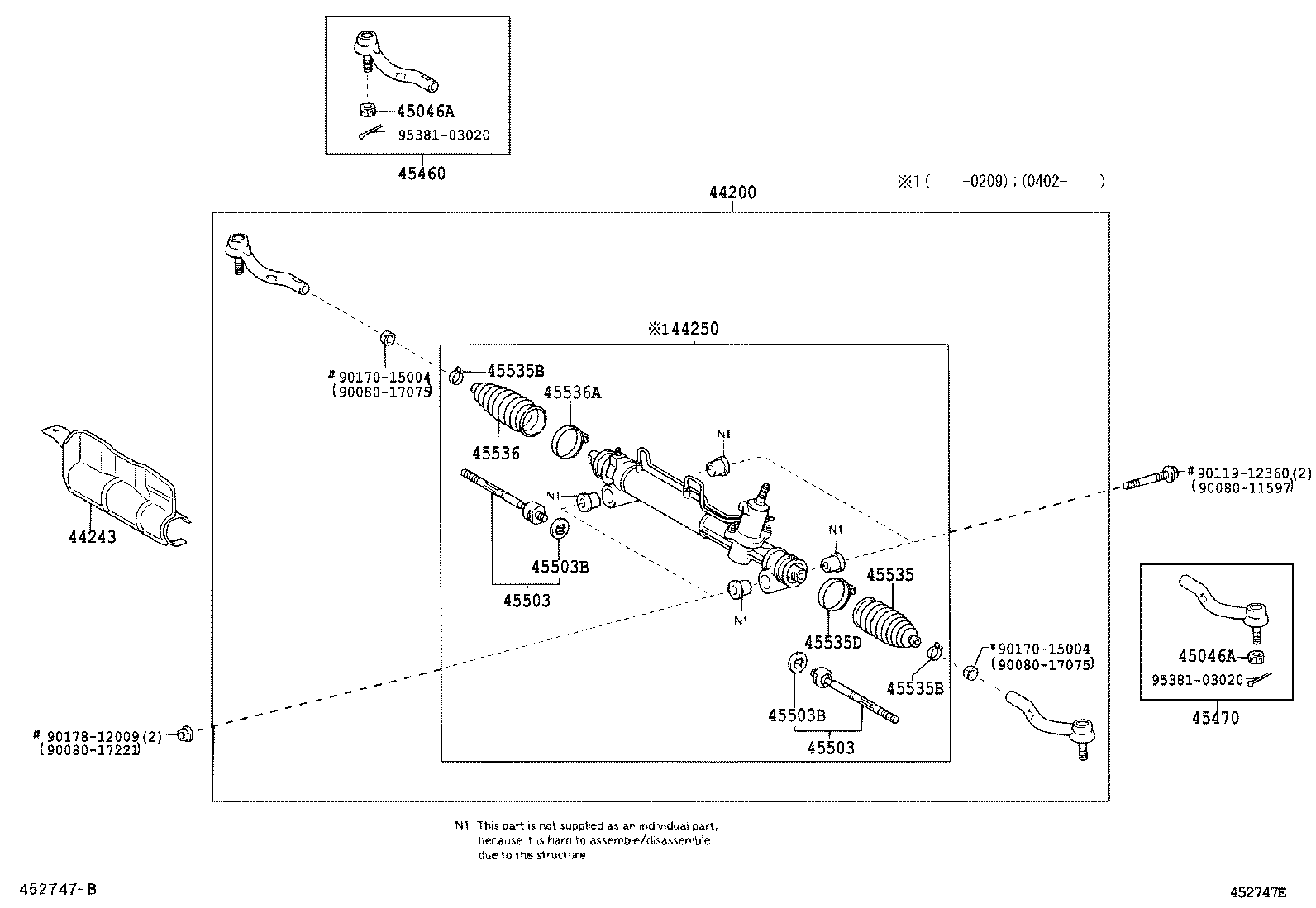

ILLUST NO. 1 OF 2(0107- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-33321 |
ACV30,MCV30..JPP..LE |
1 | ||
| 44200-33320 |
ACV30,MCV30..JPP..LE |
1 | ||
| 44200-33320 |
ACV30,MCV30..JPP..LE |
1 | ||
| 44200-33331 |
ACV30,MCV3#..JPP..(SE,XLE) |
1 | ||
| 44200-33332 |
ACV30..JPP..LE..4FC 20TH ANNIVERSARY(USA) |
1 | ||
| 44200-33332 |
ACV30,MCV3#..JPP..(SE,XLE) |
1 | ||
| 44200-33330 |
ACV30,MCV30..JPP..(SE,XLE) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-33320 |
ACV30,MCV30..JPP..LE |
1 | ||
| 44250-33330 |
ACV30,MCV30..JPP..(SE,XLE) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACV30,MCV3#..JPP |
2 | ||
| 90171-12028 |
ACV30,MCV30..JPP |
2 | ||
| 90171-12028 |
ACV30,MCV30..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACV30,MCV3#..JPP |
2 | ||
| 90171-12028 |
ACV30,MCV30..JPP |
2 | ||
| 90171-12028 |
ACV30,MCV30..JPP |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39635 |
ACV30,MCV3#..JPP |
1 | ||
| 45460-39615 |
ACV30,MCV30..JPP |
1 | ||
| 45460-39615 |
ACV30,MCV30..JPP |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39215 |
ACV30,MCV30..JPP |
1 | ||
| 45470-39215 |
ACV30,MCV30..JPP |
1 | ||
| 45470-39225 |
ACV30,MCV3#..JPP |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39225 |
ACV30,MCV3#..JPP |
2 | ||
| 45503-39225 |
ACV30,MCV30..JPP |
2 | ||
| 45503-39225 |
ACV30,MCV30..JPP |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39225 |
ACV30,MCV3#..JPP |
2 | ||
| 45503-39225 |
ACV30,MCV30..JPP |
2 | ||
| 45503-39225 |
ACV30,MCV30..JPP |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACV30,MCV3#..JPP OD=35.2 |
2 | ||
| 90214-14009 |
ACV30,MCV30..JPP OD=35.2 |
2 | ||
| 90214-14009 |
ACV30,MCV30..JPP OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACV30,MCV3#..JPP OD=35.2 |
2 | ||
| 90214-14009 |
ACV30,MCV30..JPP OD=35.2 |
2 | ||
| 90214-14009 |
ACV30,MCV30..JPP OD=35.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-33030 |
ACV30,MCV30..JPP (J) |
1 | ||
| 45535-33030 |
ACV30,MCV30..JPP (J) |
1 | ||
| 45535-06030 |
ACV30,MCV3#..JPP (L) |
1 | ||
| 45535-06030 |
ACV30,MCV30..JPP (L) |
1 | ||
| 45535-06030 |
ACV30,MCV30..JPP (L) |
1 | ||
| 45535-33030 |
ACV30,MCV3#..JPP (J) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACV30,MCV30..JPP |
2 | ||
| 90080-46153 |
ACV30,MCV3#..JPP (L) |
2 | ||
| 90467-19021 |
ACV30,MCV3#..JPP (J) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACV30,MCV30..JPP |
2 | ||
| 90080-46153 |
ACV30,MCV3#..JPP (L) |
2 | ||
| 90467-19021 |
ACV30,MCV3#..JPP (J) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58007 |
ACV30,MCV30..JPP (J) |
1 | ||
| 90080-46293 |
ACV30,MCV3#..JPP (L) |
1 | ||
| 90080-46293 |
ACV30,MCV30..JPP (L) |
1 | ||
| 90460-58007 |
ACV30,MCV3#..JPP (J) |
1 | ||
| 90080-46293 |
ACV30,MCV30..JPP (L) |
1 | ||
| 90460-58007 |
ACV30,MCV30..JPP (J) |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-33030 |
ACV30,MCV30..JPP (J) |
1 | ||
| 45535-06030 |
ACV30,MCV30..JPP (L) |
1 | ||
| 45535-33030 |
ACV30,MCV3#..JPP (J) |
1 | ||
| 45535-33030 |
ACV30,MCV30..JPP (J) |
1 | ||
| 45535-06030 |
ACV30,MCV30..JPP (L) |
1 | ||
| 45535-06030 |
ACV30,MCV3#..JPP (L) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46293 |
ACV30,MCV30..JPP (L) |
1 | ||
| 90460-58007 |
ACV30,MCV3#..JPP (J) |
1 | ||
| 90080-46293 |
ACV30,MCV3#..JPP (L) |
1 | ||
| 90460-58007 |
ACV30,MCV30..JPP (J) |
1 | ||
| 90460-58007 |
ACV30,MCV30..JPP (J) |
1 | ||
| 90080-46293 |
ACV30,MCV30..JPP (L) |
1 | ||
| Common parts | ||||
| 90080-11597 | ||||
| 90080-17075 | ||||
| 90080-17221 | ||||
| 90119-12360 | ||||
| 90170-15004 | ||||
| 90178-12009 | ||||
| 95381-03020 | ||||

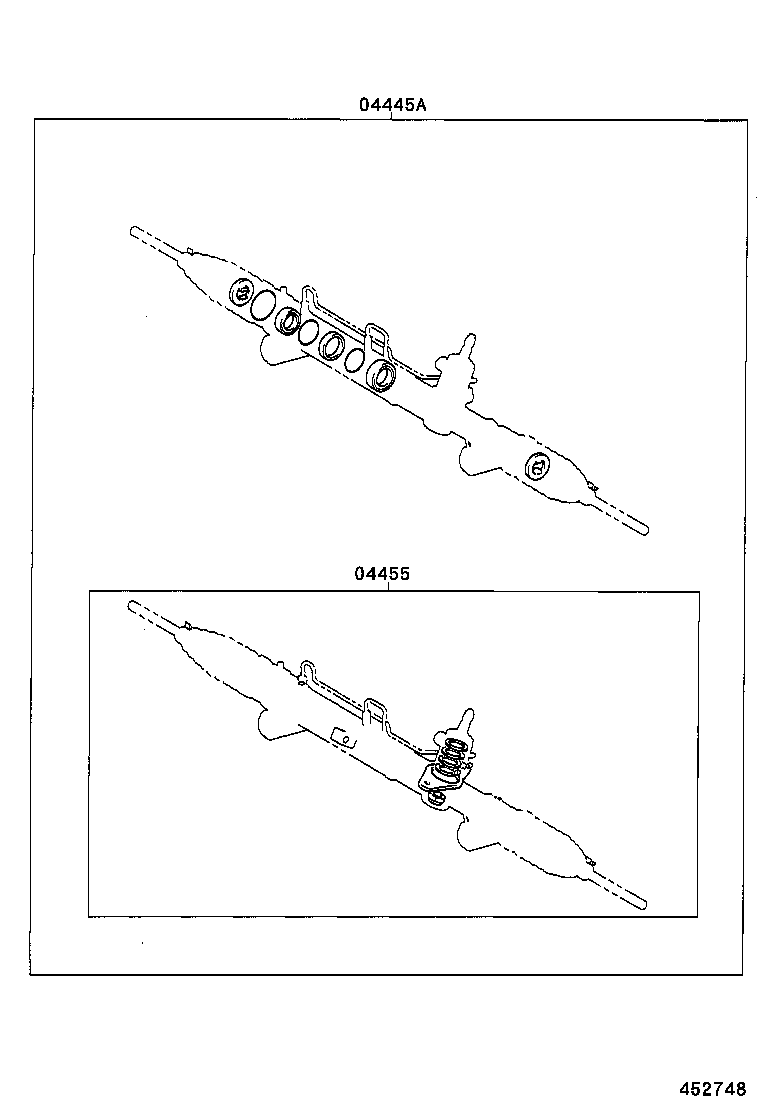

ILLUST NO. 2 OF 2(0107- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-48010 |
ACV30,MCV30..JPP |
1 | ||
| 04445-48010 |
ACV30,MCV3#..JPP |
1 | ||
| 04445-48010 |
ACV30,MCV30..JPP |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-48020 |
ACV30,MCV30..JPP |
1 | ||
| 04455-48020 |
ACV30..JPP..LE..4FC 20TH ANNIVERSARY(USA) |
1 | ||
| 04455-48020 |
ACV30,MCV3#..JPP |
1 | ||
