ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )JPP

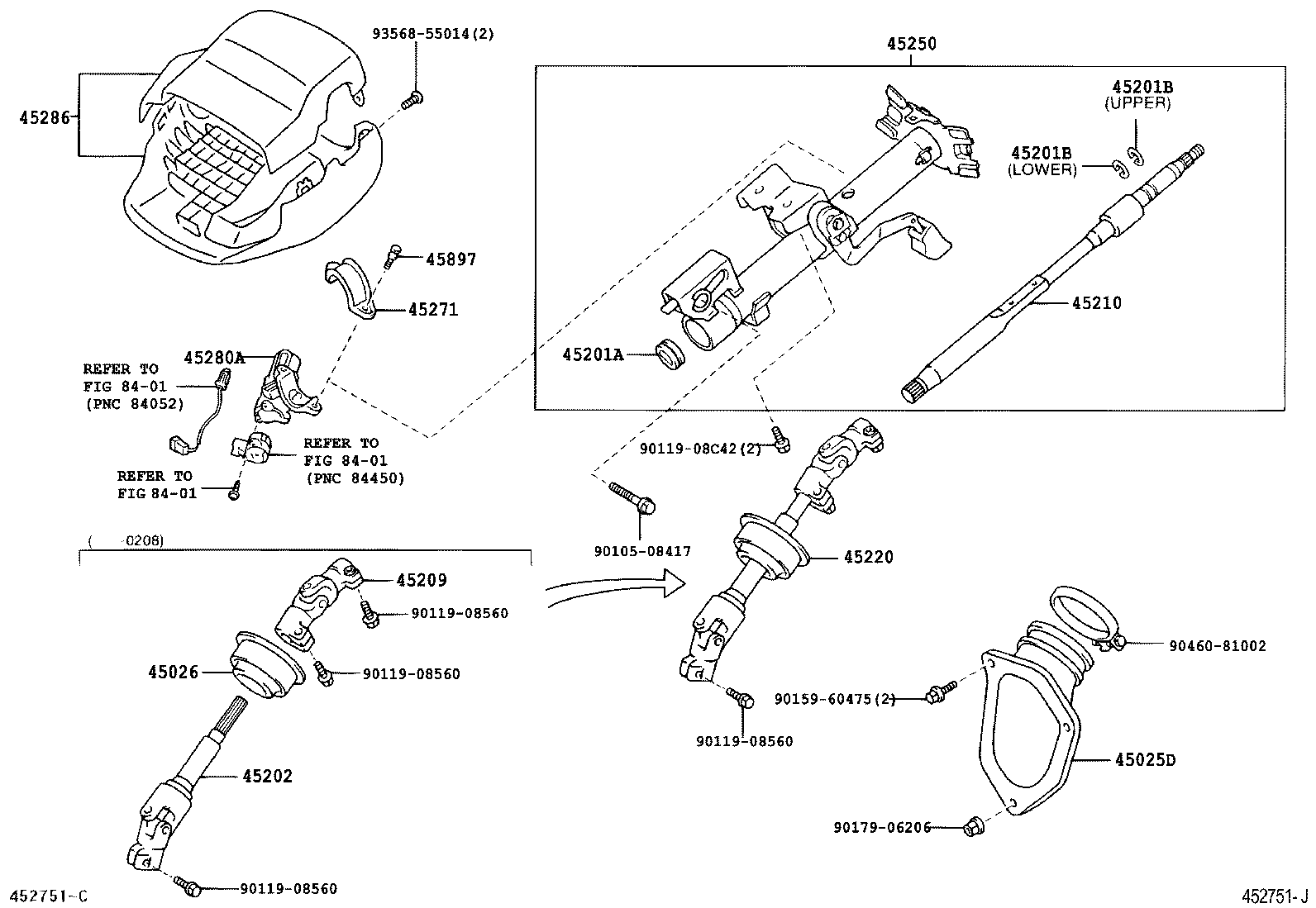

Click highlighted areas on diagram

diagram 45025D 45026 45201A 45201B 45201B 45202 45209 45210 45220 45250 45271 45280A 45286 45897 8401 8401 8401 9010508417 9011908560 9011908560 9011908560 9011908560 9011908C42 9015960475 9017906206 9046081002 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33060

ACV30,MCV30..JPP

 1
45025-33090

ACV30,MCV3#..JPP

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-33050

ACV30,MCV30..JPP

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010

ACV30,MCV3#..JPP

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACV30,MCV3#..JPP

T=1.20,UPPER

 1
90520-17042

ACV30,MCV3#..JPP

T=1.20,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACV30,MCV3#..JPP

T=1.20,UPPER

 1
90520-17042

ACV30,MCV3#..JPP

T=1.20,LOWER

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-33060

ACV30,MCV30..JPP

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-33010

ACV30,MCV30..JPP

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-33070

ACV30,MCV3#..JPP

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-33200

ACV30,MCV3#..JPP

 1
45250 - COLUMN ASSY, STEERING
45250-33510

ACV30,MCV30..JPP

 1
45250-33570

ACV30,MCV3#..JPP

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACV30,MCV30..JPP

 1
45271-33040

ACV30,MCV3#..JPP

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-33150

ACV30,MCV3#..JPP..ATM

 1
45280-33100

ACV30,MCV30..JPP..ATM

 1
45286 - COVER, STEERING COLUMN
45286-33924E0

ACV30,MCV30..JPP..(LE,XLE)

SANDAL WOOD,TRIM4#

 1
45286-33919B2

ACV30,MCV30..JPP..(LE,XLE)

DK. CHARCOAL,TRIM1#

 1
45286-33924B2

ACV30,MCV30..JPP..(LE,XLE)

DK.CHARCOAL,TRIM1#

 1
45286-33919E1

ACV30,MCV30..JPP..(LE,XLE)

SANDAL WOOD,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACV30,MCV3#..JPP

 2
Common parts
90105-08417
90119-08560
90119-08C42
90159-60475
90179-06206
90460-81002
93568-55014
Linked diagrams
8401
