ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0406)JPP..4FC

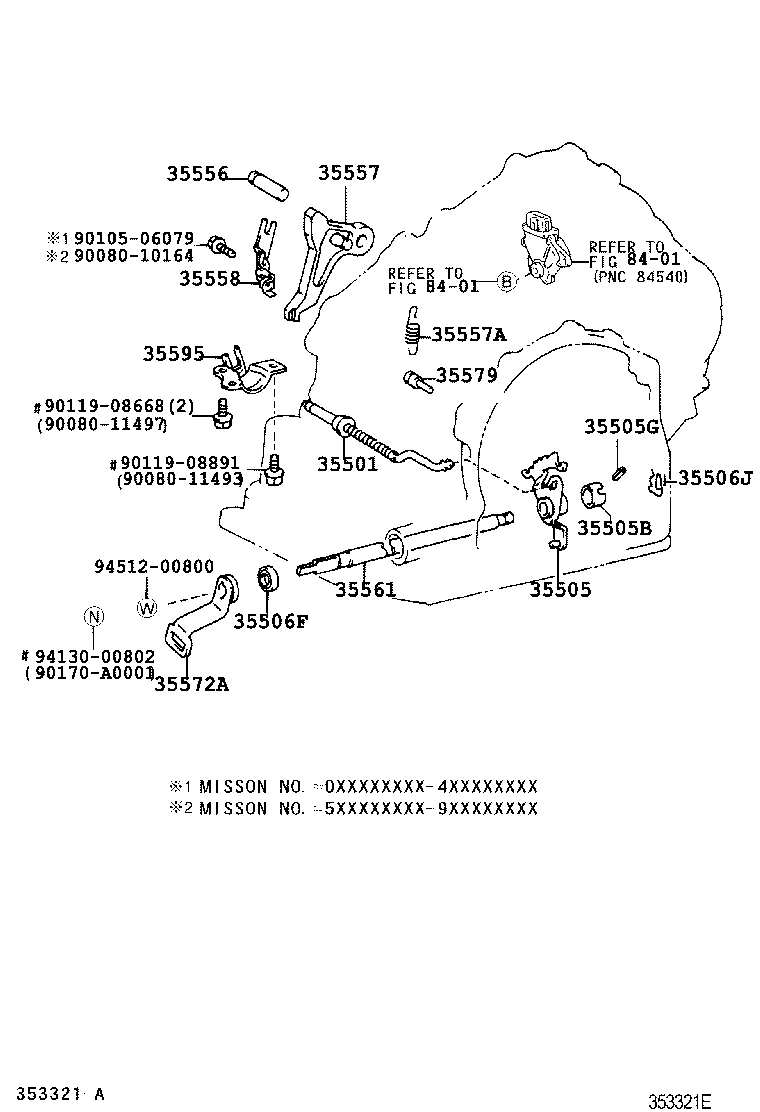

Click highlighted areas on diagram

U140E,U241E

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35558 35561 35572A 35579 35595 8401 8401 9008010164 9008011493 9008011497 9010506079 9011908668 9011908891 90170A0001 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-21010

ACV30,MCV3#..JPP..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-21010

ACV30,MCV3#..JPP..ATM

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

ACV30,MCV3#..JPP..ATM

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

ACV30,MCV3#..JPP..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

ACV30,MCV3#..JPP..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

ACV30,MCV3#..JPP..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-28020

ACV30..JPP..4FC

MISSION NO.=5XXXXXXXX-9XXXXXXXX

 1
35556-32030

ACV30..JPP..4FC

MISSION NO.=0XXXXXXXX-4XXXXXXXX

 1
35557 - PAWL, PARKING LOCK
35590-32010

ACV30..JPP..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90506-18077

ACV30,MCV30..JPP..4FC

MISSION NO.=0XXXXXXXX-4XXXXXXXX

 1
90080-50373

ACV30,MCV30..JPP..4FC

MISSION NO.=5XXXXXXXX-9XXXXXXXX

 1
35558 - CLAMP, PAWL SHAFT
35558-32010

ACV30..JPP..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-21010

ACV30,MCV3#..JPP..ATM

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-48010

ACV30,MCV30..JPP..4FC

MISSION NO.=0XXXXXXXX-4XXXXXXXX

 1
35572-08010

ACV30,MCV30..JPP..4FC

MISSION NO.=5XXXXXXXX-9XXXXXXXX

 1
35579 - PIN, PARKING LOCK PAWL
35594-21010

ACV30,MCV30..JPP..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-21010

ACV30,MCV3#..JPP..ATM

 1
Common parts
90080-10164
90080-11493
90080-11497
90105-06079
90119-08668
90119-08891
90170-A0001
94130-00802
94512-00800
Linked diagrams
8401
