Toyota Camry (jpp) ACV30 AIR CLEANER

ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004

Engine 2AZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0107- )2AZFE..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17119A - BRACKET, AIR CLEANER
17119-28040	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17700 - CLEANER ASSY, AIR
17700-28150	2AZFE..ACV30..JPP	07/2001 - 07/2003	1
17700-28170	2AZFE..ACV30..JPP..4FC CALIFORNIA SPEC	12/2002 - 06/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28130	2AZFE..ACV30..JPP..4FC CALIFORNIA SPEC	12/2002 - 06/2004	1
17705-28110	2AZFE..ACV30..JPP	07/2001 - 07/2003	1
17710B - GROMMET
90480-17013	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17750A - INLET ASSY, AIR CLEANER
17750-28050	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-20040	2AZFE..ACV30..JPP (J)	07/2001 - 06/2004	1
17801-0H020	2AZFE..ACV30..JPP (L)	07/2001 - 06/2004	1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-28010	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-28140	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90466-62002	2AZFE..ACV30..JPP NO.1	07/2001 - 06/2004	1
96111-10830	2AZFE..ACV30..JPP NO.2	07/2001 - 06/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90466-62002	2AZFE..ACV30..JPP NO.1	07/2001 - 06/2004	1
96111-10830	2AZFE..ACV30..JPP NO.2	07/2001 - 06/2004	1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-31003	2AZFE..ACV30..JPP	08/2002 - 06/2004	1
17893 - RESONATOR, INTAKE AIR
17893-28040	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17893A - CLAMP, HOSE
96111-10430	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-28020	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
Common parts
90099-00289
90099-00306
90099-04593
90119-06245
90119-06465
90119-06527
90385-07002
90387-09033
90467-06200
90904-06008
90910-12199
91631-60622

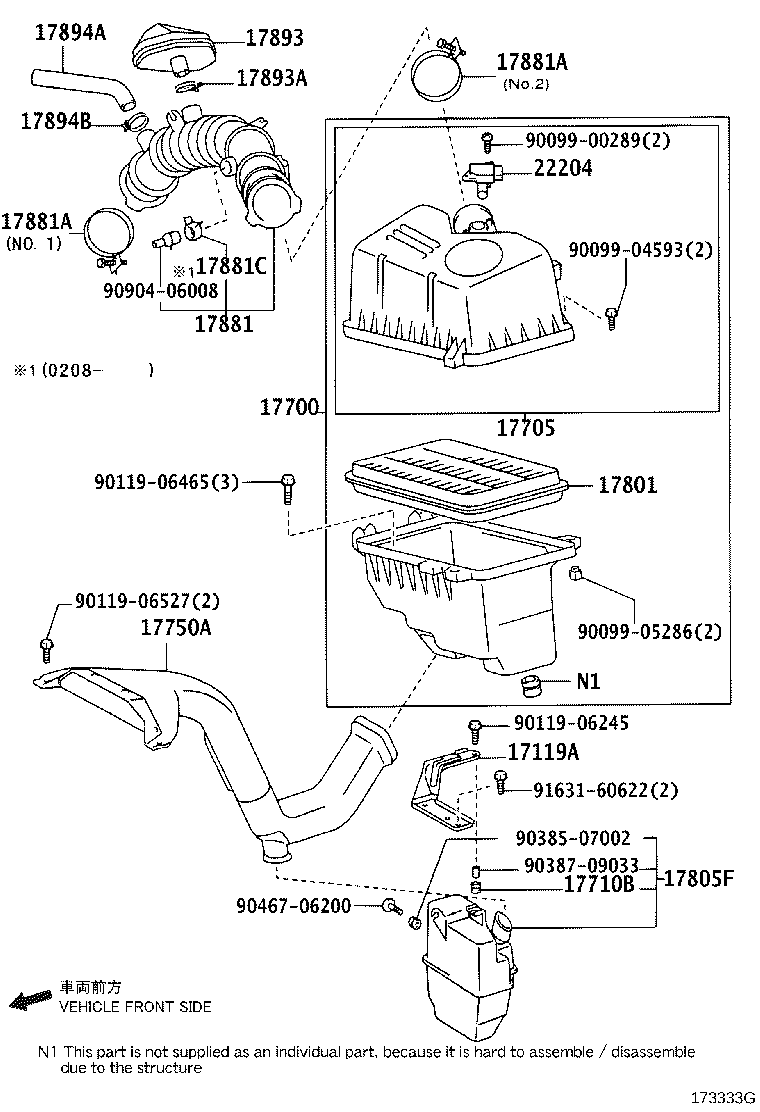

(0212- )2AZFE..JPP..4FC,5F

Click highlighted areas on diagram

CALIFORNIA SPEC

Part #	Description	Period	Qty
17119A - BRACKET, AIR CLEANER
17119-28040	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17700 - CLEANER ASSY, AIR
17700-28150	2AZFE..ACV30..JPP	07/2001 - 07/2003	1
17700-28170	2AZFE..ACV30..JPP..4FC CALIFORNIA SPEC	12/2002 - 06/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28130	2AZFE..ACV30..JPP..4FC CALIFORNIA SPEC	12/2002 - 06/2004	1
17705-28110	2AZFE..ACV30..JPP	07/2001 - 07/2003	1
17710B - GROMMET
90480-17013	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17750A - INLET ASSY, AIR CLEANER
17750-28050	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-20040	2AZFE..ACV30..JPP (J)	07/2001 - 06/2004	1
17801-0H020	2AZFE..ACV30..JPP (L)	07/2001 - 06/2004	1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17805-28010	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-28140	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90466-62002	2AZFE..ACV30..JPP NO.1	07/2001 - 06/2004	1
96111-10830	2AZFE..ACV30..JPP NO.2	07/2001 - 06/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90466-62002	2AZFE..ACV30..JPP NO.1	07/2001 - 06/2004	1
96111-10830	2AZFE..ACV30..JPP NO.2	07/2001 - 06/2004	1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-31003	2AZFE..ACV30..JPP	08/2002 - 06/2004	1
17893 - RESONATOR, INTAKE AIR
17893-28040	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17893A - CLAMP, HOSE
96111-10430	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-28020	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010	2AZFE..ACV30..JPP	07/2001 - 06/2004	1
Common parts
90099-00289
90099-04593
90099-05286
90119-06245
90119-06465
90119-06527
90385-07002
90387-09033
90467-06200
90904-06008
91631-60622

ACV30L-AEPGKA (2001)

(0107- )2AZFE..JPP

(0212- )2AZFE..JPP..4FC,5F
