ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2AZFE..JPP

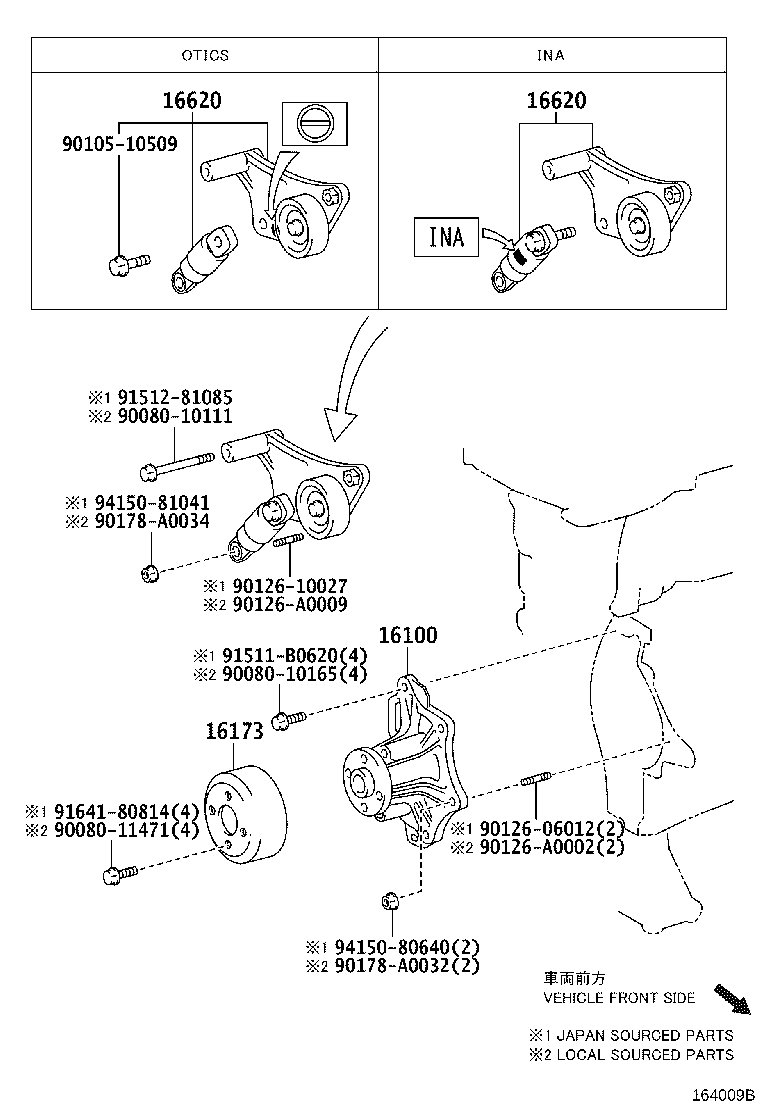

Click highlighted areas on diagram

diagram 16100 16173 16620 16620 9008010111 9008010165 9008011471 9010510509 9012606012 9012610027 90126A0002 90126A0009 90178A0032 90178A0034 91511B0620 9151281085 9164180814 9415080640 9415081041
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-0H010

2AZFE..ACV30..JPP..4FC

(L)

 1
16100-28040

2AZFE..ACV30..JPP..4FC

(J)

 1
16173 - PULLEY, WATER PUMP
16173-28020

2AZFE..ACV30..JPP

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28011

2AZFE..ACV30..JPP

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28011

2AZFE..ACV30..JPP

 1
Common parts
90080-10111
90080-10165
90080-11471
90105-10509
90126-06012
90126-10027
90126-A0002
90126-A0009
90178-A0032
90178-A0034
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041
