ACV30L-AEPGKA (2001)
Toyota Camry (Jpp)
Production
Jul 2001
-
Jun 2004
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2AZFE..JPP

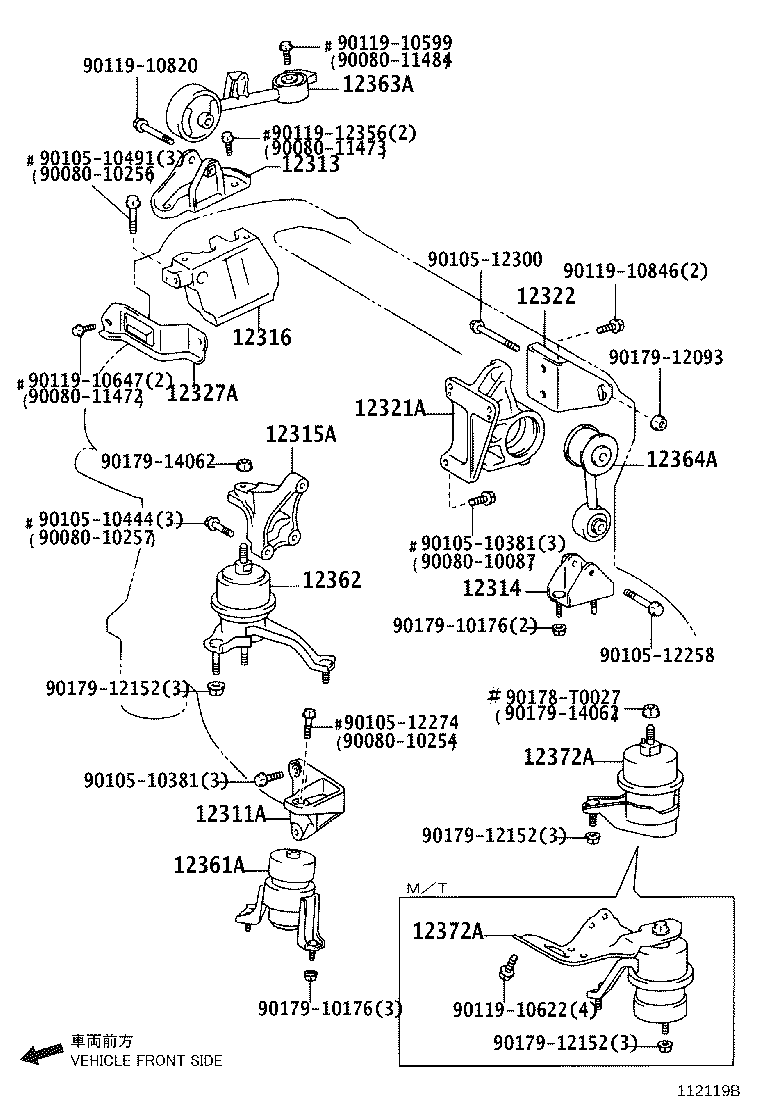

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28080 |
2AZFE..ACV30..JPP |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-28020 |
2AZFE..ACV30..JPP |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-28010 |
2AZFE..ACV30..JPP |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-28060 |
2AZFE..ACV30..JPP |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-28030 |
2AZFE..ACV30..JPP |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28110 |
2AZFE..ACV30..JPP |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-28100 |
2AZFE..ACV30..JPP |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-28060 |
2AZFE..ACV30..JPP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28020 |
2AZFE..ACV30..JPP..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28020 |
2AZFE..ACV30..JPP..4FC |
1 | ||
| Common parts | ||||
| 90080-10087 | ||||
| 90080-10254 | ||||
| 90080-10256 | ||||
| 90080-10257 | ||||
| 90080-11472 | ||||
| 90080-11473 | ||||
| 90080-11484 | ||||
| 90105-10381 | ||||
| 90105-10444 | ||||
| 90105-10491 | ||||
| 90105-12258 | ||||
| 90105-12274 | ||||
| 90105-12300 | ||||
| 90119-10599 | ||||
| 90119-10622 | ||||
| 90119-10647 | ||||
| 90119-10820 | ||||
| 90119-10846 | ||||
| 90119-12356 | ||||
| 90178-T0027 | ||||
| 90179-10176 | ||||
| 90179-12093 | ||||
| 90179-12152 | ||||
| 90179-14062 | ||||
