ACV30L-AEPGKA (2001)

Toyota Camry (Jpp)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2AZFE..JPP

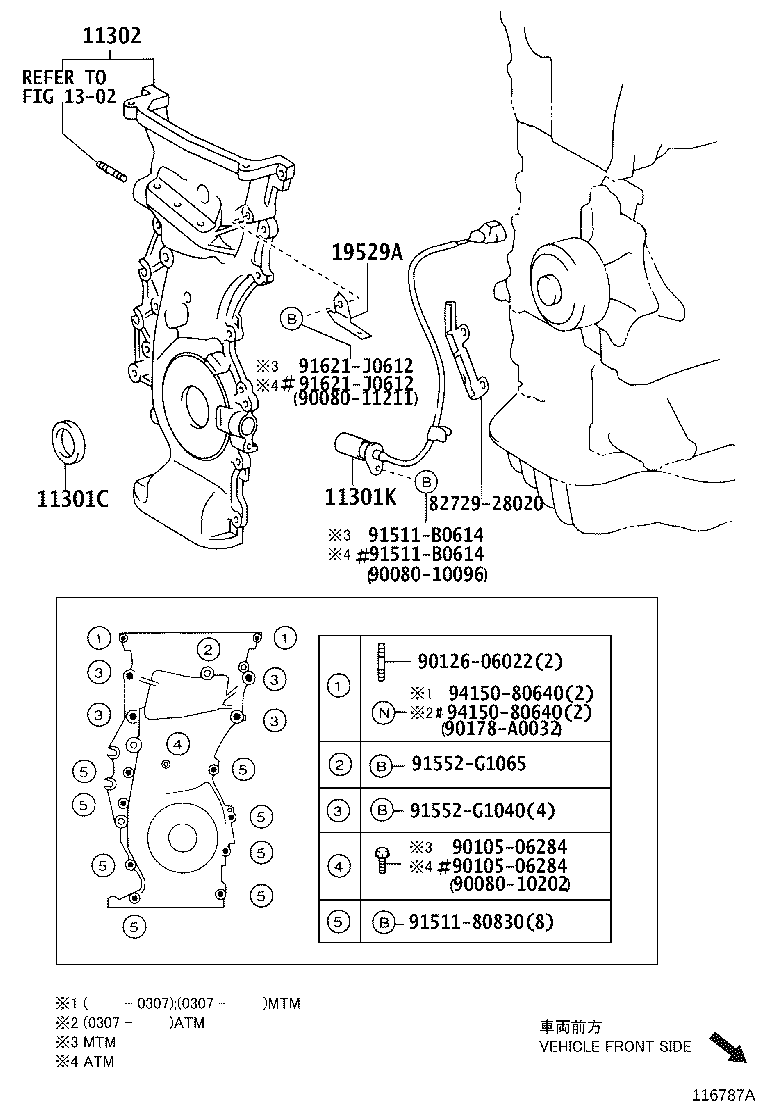

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 19529A 8272928020 9008010096 9008010202 9008011211 9010506284 9010506284 9012606022 90178A0032 9151180830 91511B0614 91511B0614 91552G1040 91552G1065 91621J0612 91621J0612 9415080640 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38098

2AZFE..ACV30..JPP..4FC

*108

 1
90311-38084

2AZFE..ACV30..JPP

*107

 1
90311-38078

2AZFE..ACV30..JPP

*107

 1
90311-38089

2AZFE..ACV30..JPP

*107

 1
11301K - SENSOR, CRANK POSITION
90080-19024

2AZFE..ACV30..JPP..4FC

(L)

 1
90919-05047

2AZFE..ACV30..JPP

(J)

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0H010

2AZFE..ACV30..JPP..4FC

(L)

 1
11310-28070

2AZFE..ACV30..JPP

(J)

 1
19529A - CLAMP
19529-28010

2AZFE..ACV30..JPP

 1
Common parts
82729-28020
90080-10096
90080-10202
90080-11211
90105-06284
90126-06022
90178-A0032
91511-80830
91511-B0614
91552-G1040
91552-G1065
91621-J0612
94150-80640
Linked diagrams
1302
