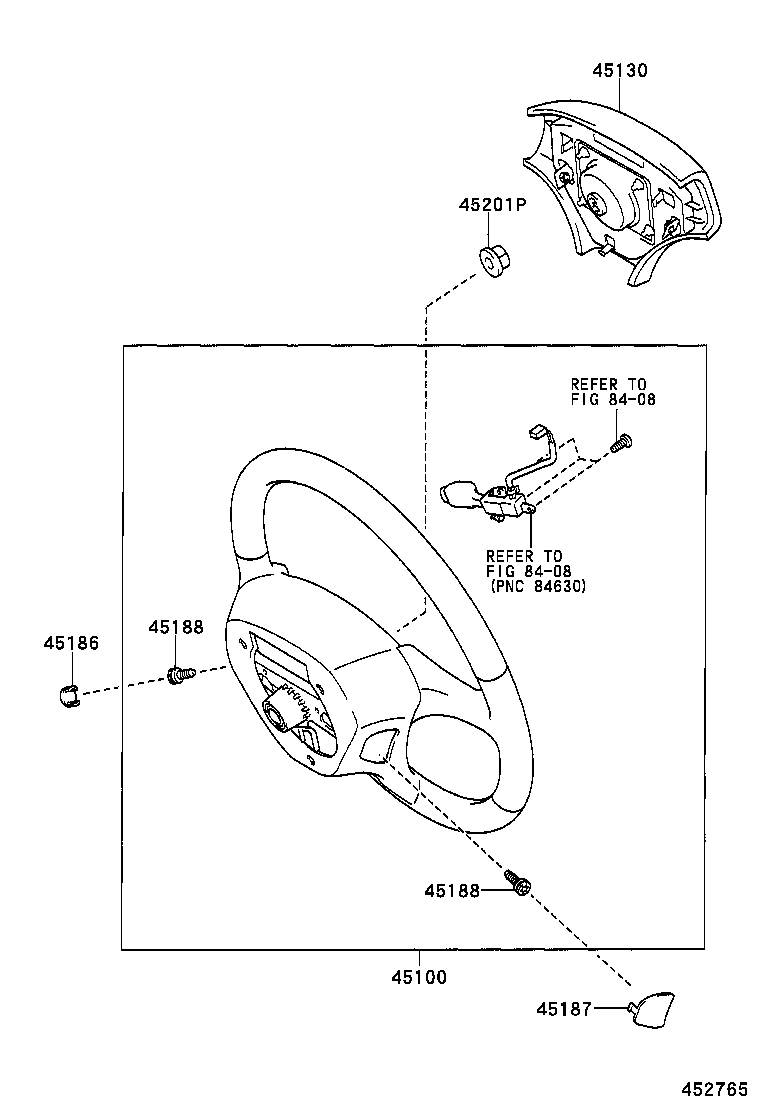

ACV30L-AEMSKA (2001)
Toyota Camry (Jpp)
(0107-0406)JPP..SE
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-06451 |
ACV30..JPP..SE 3-SPOKE,LEATHER |
1 | ||
| 45100-06450B0 |
ACV30..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-06451B0 |
ACV30..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-0W190B1 |
ACV30,MCV31..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM4#,9# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-33321B0 |
ACV30,MCV30..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-33322B0 |
ACV30,MCV30..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-33323 |
ACV30,MCV31..JPP..SE |
1 | ||
| 45130-33411B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45130-33323B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-48020B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45186-44010B6 |
ACV30,MCV3#..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-48010B2 |
ACV30,MCV3#..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45187-48020B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14042 |
ACV30,MCV3#..JPP..SE L=18 |
2 | ||
| 45188-07010 |
ACV30,MCV3#..JPP..(SE,XLE) L=18.5 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14042 |
ACV30,MCV3#..JPP..SE L=18 |
2 | ||
| 45188-07010 |
ACV30,MCV3#..JPP..(SE,XLE) L=18.5 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACV30,MCV3#..JPP |
1 | ||
| 90179-12071 |
ACV30,MCV3#..JPP |
1 | ||
| Linked diagrams | ||||
| 8408 | ||||
(0406- )JPP..SE
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-06451 |
ACV30..JPP..SE 3-SPOKE,LEATHER |
1 | ||
| 45100-06450B0 |
ACV30..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-06451B0 |
ACV30..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-0W190B1 |
ACV30,MCV31..JPP..SE 3-SPOKE,LEATHER,DK.GRAY,TRIM4#,9# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-33321B0 |
ACV30,MCV30..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-33322B0 |
ACV30,MCV30..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-33323 |
ACV30,MCV31..JPP..SE |
1 | ||
| 45130-33411B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45130-33323B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-48020B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45186-44010B6 |
ACV30,MCV3#..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-48010B2 |
ACV30,MCV3#..JPP..SE DK.GRAY,TRIM1#,4# |
1 | ||
| 45187-48020B0 |
ACV30,MCV31..JPP..SE DK.GRAY,TRIM4#,9# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14042 |
ACV30,MCV3#..JPP..SE L=18 |
2 | ||
| 45188-07010 |
ACV30,MCV3#..JPP..(SE,XLE) L=18.5 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90080-14042 |
ACV30,MCV3#..JPP..SE L=18 |
2 | ||
| 45188-07010 |
ACV30,MCV3#..JPP..(SE,XLE) L=18.5 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACV30,MCV3#..JPP |
1 | ||
| 90179-12071 |
ACV30,MCV3#..JPP |
1 | ||
