SV25L-UEMNKA (1987)
Toyota Camry
ILLUST NO. 1 OF 2(8608-8804)5F ; (8804- )SV21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32151 |
SV25,VZV21..5F |
1 | ||
| 33503-32150 |
SV25 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401054 |
SV2#,VZV21..5F DARK BLUE,TRIM8# |
1 | ||
| 33504-2401052 |
SV2#,VZV21..5F..USA MAROON,TRIM3# |
1 | ||
| 33504-24010J0 |
SV2#,VZV21..5F DARK BLUE,TRIM8# |
1 | ||
| 33504-24010B0 |
SV2#,VZV21..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 33504-24010D0 |
SV2#,VZV21..5F..USA MAROON,TRIM3# |
1 | ||
| 33504-2401010 |
SV2#,VZV21..5F BLUE,TRIM1# |
1 | ||
| 33504-2401055 |
SV25..LE;SV21,VZV21..5F DARK BEIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-32050 |
SV2#,VZV21..5F |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-12050 |
SV2#,VZV21..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
SV2#,VZV21..5F |
2 | ||
| 90386-12034 |
SV25,VZV21..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
SV2#,VZV21..5F |
1 | ||
| 90508-20084 |
SV25,VZV21..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV21..5F |
1 | ||
| 90201-12029 |
SV2#,VZV21..5F |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV21..5F |
1 | ||
| 90201-12029 |
SV2#,VZV21..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
SV2#,VZV21..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
SV2#,VZV21..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
SV2#,VZV21..5F |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
SV2#,VZV21..5F |
1 | ||
| 33556A - SPACER (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90561-35001 |
SV2#,VZV21..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
SV2#,VZV21..5F UPR |
1 | ||
| 33556-12020 |
SV2#,VZV21..5F LWR |
1 | ||
| 33556-20020 |
SV25,VZV21..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
SV2#,VZV21..5F UPR |
1 | ||
| 33556-12020 |
SV2#,VZV21..5F LWR |
1 | ||
| 33556-20020 |
SV25,VZV21..5F |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30005 |
SV2#,VZV21..5F T=0.7,MARK E 0R 7 |
1 | ||
| 90564-30007 |
SV2#,VZV21..5F T=0.9,MARK G 0R 9 |
1 | ||
| 90564-30003 |
SV2#,VZV21..5F T=0.5,MARK C 0R 5 |
1 | ||
| 90564-30008 |
SV2#,VZV21..5F T=1.0,MARK H 0R 10 |
1 | ||
| 90564-30011 |
SV2#,VZV21..5F T=0.3,MARK A 0R 3 |
1 | ||
| 90564-30006 |
SV2#,VZV21..5F T=0.8,MARK F 0R 8 |
1 | ||
| 90564-30009 |
SV2#,VZV21..5F T=1.1,MARK K 0R 11 |
1 | ||
| 90564-30012 |
SV2#,VZV21..5F T=0.4,MARK B 0R 4 |
1 | ||
| 90564-30004 |
SV2#,VZV21..5F T=0.6,MARK D 0R 6 |
1 | ||
| 90564-30010 |
SV2#,VZV21..5F T=1.2,MARK L 0R 12 |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
SV2#,VZV21..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
SV2#,VZV21..5F |
4 | ||
| 90389-10020 |
SV25,VZV21..5F |
4 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12020 |
SV2#,VZV21..5F |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-12021 |
SV2#,VZV21..5F |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
SV2#,VZV21..5F *8-1.25PX28-13,*8-1.25PX28-13 |
1 | ||
| 90119-06268 |
SV2#,VZV21..5F *6-1.00PX24-20 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
SV2#,VZV21..5F *8-1.25PX28-13,*8-1.25PX28-13 |
1 | ||
| 90119-06268 |
SV2#,VZV21..5F *6-1.00PX24-20 |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||
ILLUST NO. 1 OF 2(8804- )SV25,VZV21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-32151 |
SV25,VZV21..5F |
1 | ||
| 33503-32150 |
SV25 |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-32010 |
SV25,VZV21..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
SV2#,VZV21..5F |
2 | ||
| 90386-12034 |
SV25,VZV21..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
SV2#,VZV21..5F |
2 | ||
| 90386-12034 |
SV25,VZV21..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
SV2#,VZV21..5F |
1 | ||
| 90508-20084 |
SV25,VZV21..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
SV25,VZV21..5F |
1 | ||
| 90201-12029 |
SV2#,VZV21..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
SV2#,VZV21..5F |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
SV25,VZV21..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
SV2#,VZV21..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
SV2#,VZV21..5F |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
SV25,VZV21..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
SV2#,VZV21..5F UPR |
1 | ||
| 33556-12020 |
SV2#,VZV21..5F LWR |
1 | ||
| 33556-20020 |
SV25,VZV21..5F |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-34002 |
SV25,VZV21..5F |
1 | ||
| 33565 - PLATE, CONTROL SHIFT LEVER RETAINER | ||||
| 33565-12030 |
SV25,VZV21..5F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-32040 |
SV25,VZV21..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
SV2#,VZV21..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
SV2#,VZV21..5F |
4 | ||
| 90389-10020 |
SV25,VZV21..5F |
4 | ||
| 33575C - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90119-08622 |
SV25,VZV21..5F |
3 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-12030 |
SV25,VZV21..5F |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||

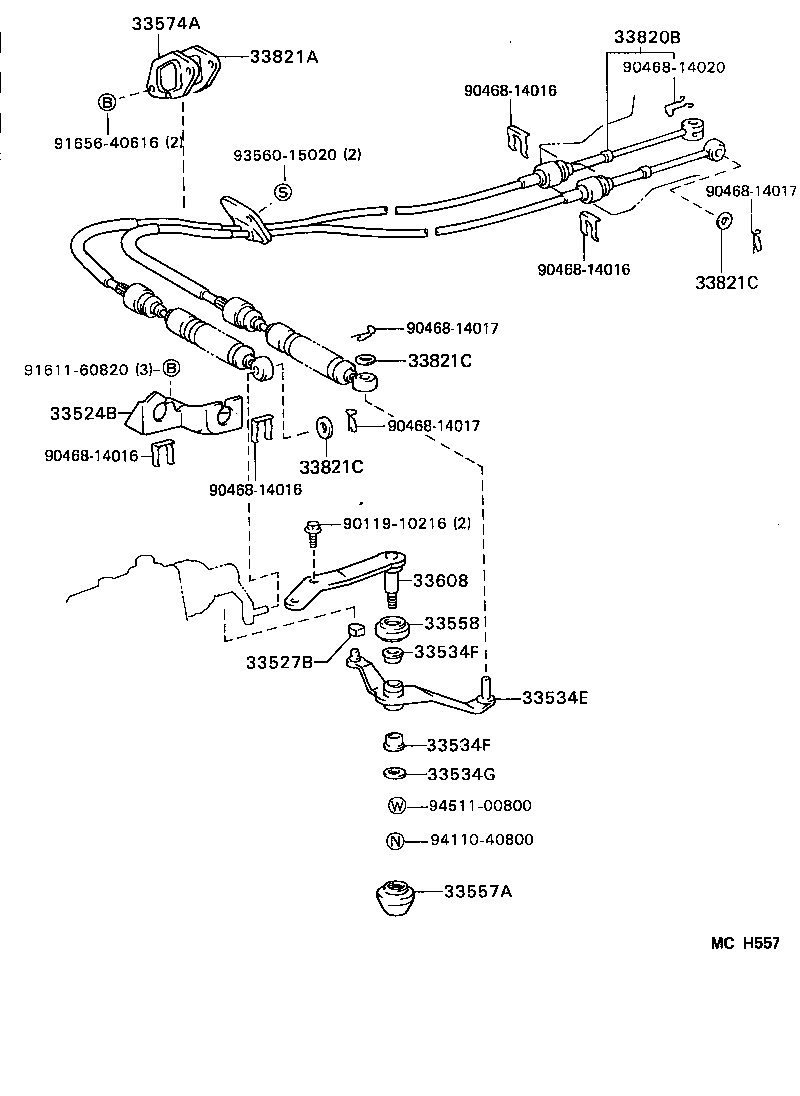

ILLUST NO. 2 OF 2(8710- )SV25,VZV21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
SV25 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
SV2#,VZV21..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20020 |
SV25,VZV21..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
SV2#,VZV21..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
SV2#,VZV21..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
SV2#,VZV21..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
SV2#,VZV21..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
SV25,VZV21..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32110 |
SV2#,VZV21..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-20010 |
SV25,VZV21..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-32210 |
SV25 |
1 | ||
| 33820-32201 |
SV25 |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01366 |
SV2#,VZV21..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SV25 SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
SV25 OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SV25 SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
SV25 OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
SV25 SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
SV25 OD=28,TRANSAXLE SIDE |
2 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
