SV25L-UEMDKA (1987)
Toyota Camry
Production
Oct 1987
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

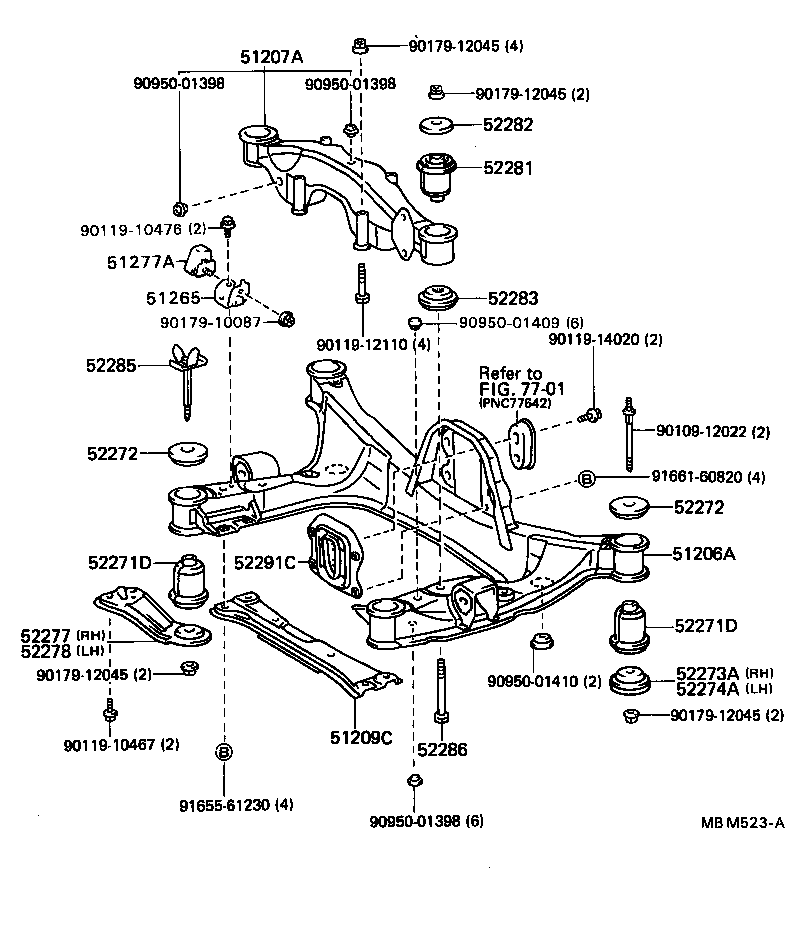

ILLUST NO. 1 OF 2(8710- )SV25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-20011 |
SV25 |
1 | ||
| 51206-20010 |
SV25 |
1 | ||
| 51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51207-20011 |
SV25 |
1 | ||
| 51207-20010 |
SV25 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-32020 |
SV25 |
1 | ||
| 51265 - BRACKET, REAR SUSPENSION MEMBER, FRONT | ||||
| 51265-32020 |
SV25 |
1 | ||
| 51277A - WEIGHT, DIFFERENTIAL SUPPORT MEMBER | ||||
| 51277-32010 |
SV25 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-20010 |
SV25 |
4 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-20010 |
SV25 |
4 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-20010 |
SV25 |
4 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-20010 |
SV25 |
4 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-20010 |
SV25 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52273-20010 |
SV25 |
1 | ||
| 52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-20010 |
SV25 |
1 | ||
| 52278 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH | ||||
| 52278-20010 |
SV25 |
1 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-20010 |
SV25 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-32010 |
SV25 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-20010 |
SV25 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-20010 |
SV25 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-32010 |
SV25 |
2 | ||
| 52291C - CUSHION, DIFFERENTIAL SUPPORT MEMBER, REAR | ||||
| 52291-20010 |
SV25 |
1 | ||
| Common parts | ||||
| 90109-12022 | ||||
| 90119-10467 | ||||
| 90119-10476 | ||||
| 90119-12110 | ||||
| 90119-14020 | ||||
| 90179-10087 | ||||
| 90179-12045 | ||||
| 90950-01398 | ||||
| 90950-01409 | ||||
| 90950-01410 | ||||
| 91655-61230 | ||||
| 91661-60820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
