SV21LG-UWPDKK (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )WG

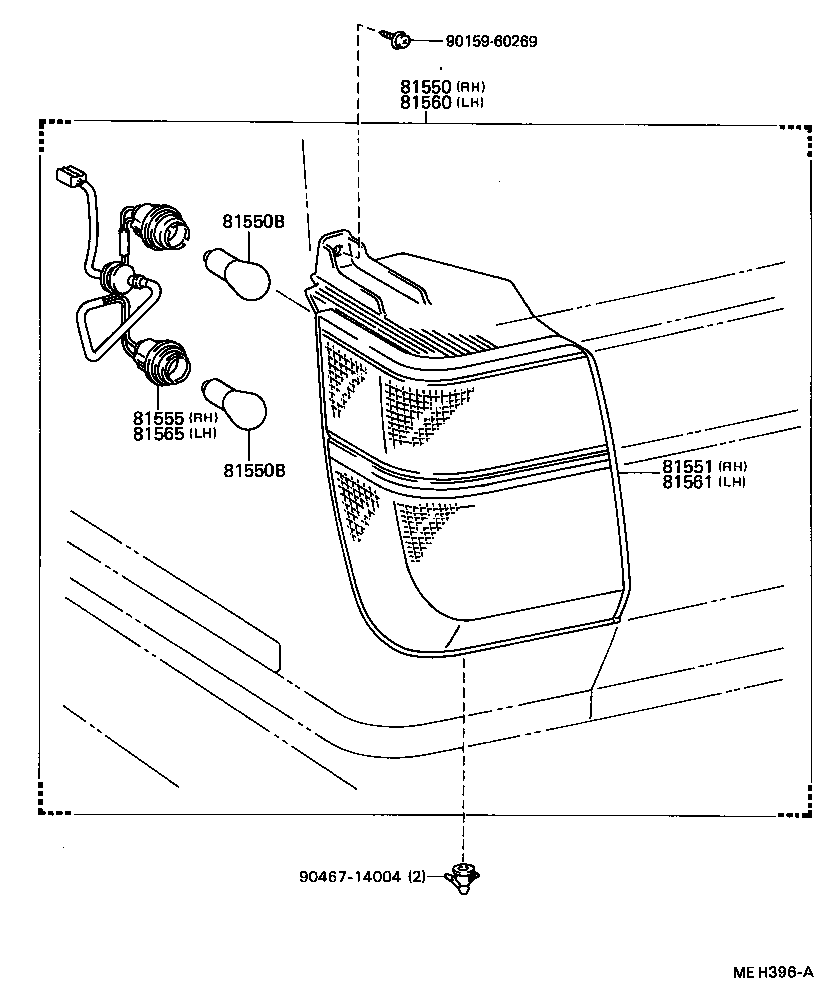

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81555 81560 81561 81565 9015960269 9046714004
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32170

SV21,VZV21..WG

 1
81550-32170

SV21..WG

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SV2#,VZV21

12V 27/8W

 2
99132-11270

SV2#,VZV21

12V 27W

 2
99132-11270

SV21

12V 27W,12V 27W(TURN)

 2
99132-21270

SV21

12V 27/8W,12V 27/8W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

SV2#,VZV21

12V 27/8W

 2
99132-11270

SV2#,VZV21

12V 27W

 2
99132-11270

SV21

12V 27W,12V 27W(TURN)

 2
99132-21270

SV21

12V 27/8W,12V 27/8W(STOP & TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32170

SV21,VZV21..WG

 1
81551-32170

SV21..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32160

SV21..WG

 1
81555-32160

SV21,VZV21..WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32170

SV21,VZV21..WG

 1
81560-32170

SV21..WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32170

SV21,VZV21..WG

 1
81561-32170

SV21..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-32160

SV21,VZV21..WG

 1
81565-32160

SV21..WG

 1
Common parts
90159-60269
90467-14004
