Toyota Camry SV21 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-63082	3SFE..SV21 12V 70A,12V 70A	02/1987 - 10/1987	1
27060-63082	3SFE..SV2# 12V 70A	10/1987 - 08/1988	1
27060-63080	3SFE..SV21 12V 70A,12V 70A	08/1986 - 08/1986	1
27060-63081	3SFE..SV21 12V 70A,12V 70A	08/1986 - 02/1987	1
27039 - COVER, ALTERNATOR REAR END
27039-72010	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27039-72010	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200	3SFE..SV21 12V 70A	02/1987 - 10/1987	1
27312-72100	3SFE..SV21 12V 70A	08/1986 - 02/1987	1
27312-70200	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100	3SFE..SV21 12V 70A	02/1987 - 10/1987	1
27310-70100	3SFE..SV2# 12V 70A	10/1987 - 08/1988	1
27310-63021	3SFE..SV21 12V 70A	08/1986 - 02/1987	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	3SFE..SV21 12V 70A	02/1987 - 10/1987	1
90099-10159	3SFE..SV21 12V 70A	08/1986 - 02/1987	1
90099-10178	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72100	3SFE..SV21 12V 70A	08/1986 - 09/1987	1
27330-72101	3SFE..SV21 12V 70A	09/1987 - 10/1987	1
27330-72101	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
90099-10140	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27357-63020	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43160	3SFE..SV2# 12V 70A	10/1987 - 08/1988	1
27359-43160	3SFE..SV21 12V 70A	02/1987 - 10/1987	1
27359-63081	3SFE..SV21 12V 70A	08/1986 - 02/1987	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
27370-63021	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27371 - BRUSH, ALTERNATOR
27371-63020	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	2
27371-63020	3SFE..SV21 12V 70A	08/1986 - 10/1987	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	3SFE..SV21 12V 70A	08/1986 - 10/1987	2
27372-72100	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	2
27387 - INSULATOR, TERMINAL
27387-70170	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
27387-63020	3SFE..SV21 12V 70A	08/1986 - 08/1986	1
27387-70170	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27411 - PULLEY, ALTERNATOR
27411-63081	3SFE..SV21 12V 70A	08/1986 - 02/1987	1
27411-16180	3SFE..SV2# 12V 70A	10/1987 - 08/1988	1
27411-16180	3SFE..SV21 12V 70A	02/1987 - 10/1987	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
27443-63020	3SFE,2VZFE..SV2#,VZV21 12V 70A	10/1987 - 08/1988	1
27700A - REGULATOR ASSY, GENERATOR
27700-63021	3SFE..SV2# 12V 70A	10/1987 - 08/1988	1
27700-63021	3SFE..SV21 12V 70A	08/1986 - 10/1987	1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10038
90179-06158
90201-08011
91611-60840
93319-14025

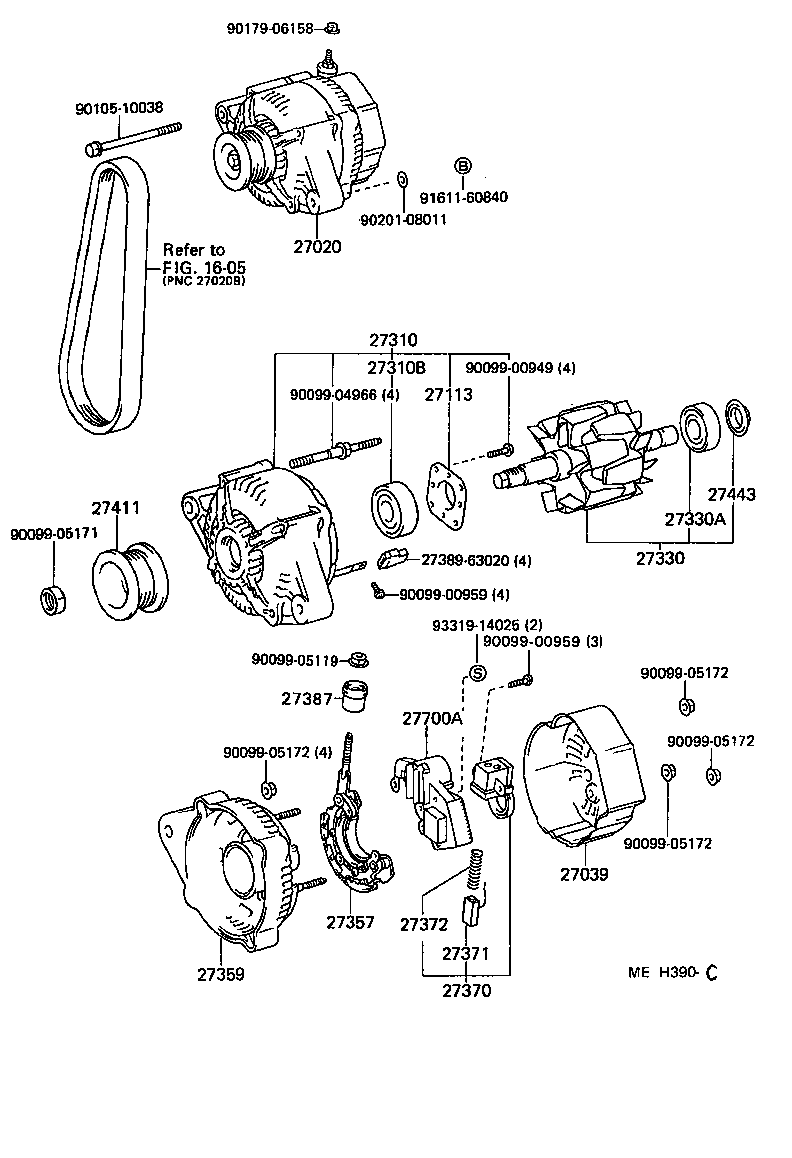

Linked diagrams
1605

SV21LG-UWPDKK (1986)

(8608- )3SFE
