SV21LG-UWMDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

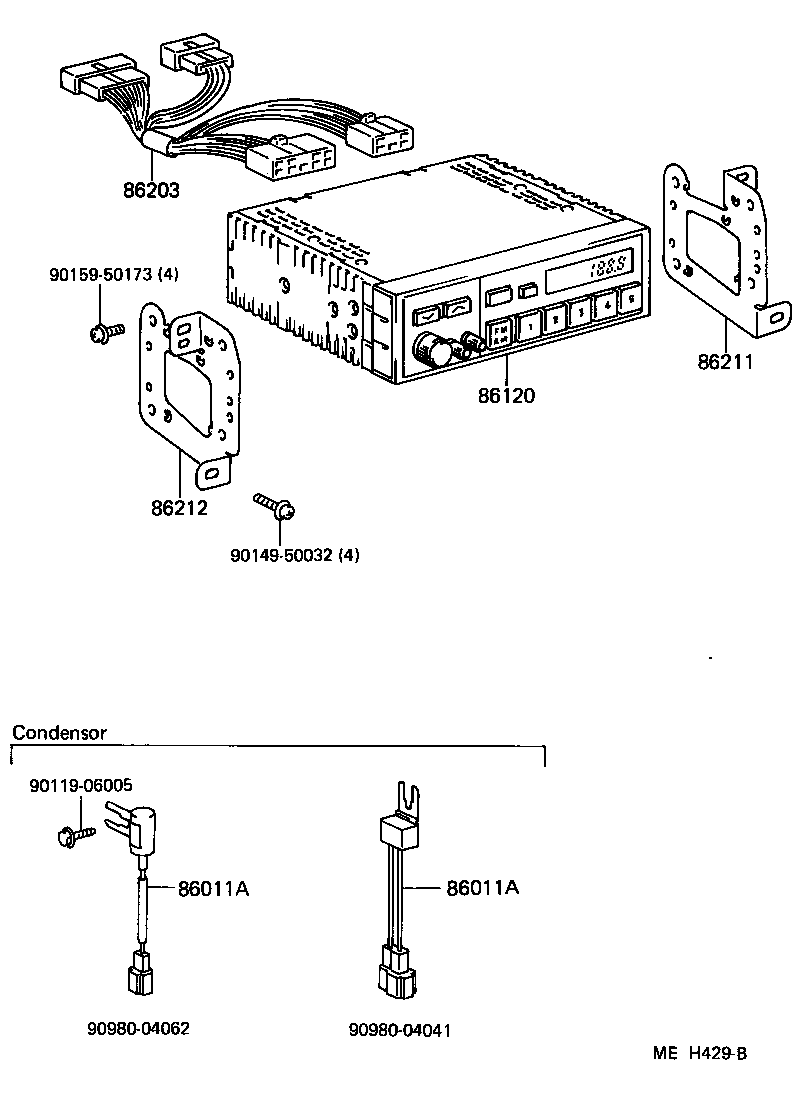

ILLUST NO. 1 OF 2(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04062 |
SV2#,VZV21 |
1 | ||
| 90980-04062 |
SV21 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04062 |
SV2#,VZV21 |
1 | ||
| 90980-04062 |
SV21 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32210 |
SV21 AM/FM MULTIPLEX |
1 | ||
| 86120-28030 |
SV21..USA AM/FM MULTIPLEX |
1 | ||
| 86120-32130 |
SV21..DX,STD AM/FM W/CASSET |
1 | ||
| 86120-20680 |
SV21..USA AM/FM MULTIPLEX |
1 | ||
| 86120-32211 |
SV21 AM/FM MULTIPLEX |
1 | ||
| 86120-32211 |
SV2#,VZV21..DX,STD AM MPX/FM MPX USA |
1 | ||
| 86120-32130 |
SV2#,VZV21 AM MPX/FM MPX,CST.,USA |
1 | ||
| 86120-20680 |
VZV21;SV2#..USA AM/FM MPX,GEN |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-16060 |
SV21..USA |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-32050 |
SV2#,VZV21 |
1 | ||
| 86211-32050 |
SV21 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-32050 |
SV2#,VZV21 |
1 | ||
| 86212-32050 |
SV21 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90149-50032 | ||||
| 90159-50173 | ||||
| 90980-04041 | ||||
| 90980-04062 | ||||

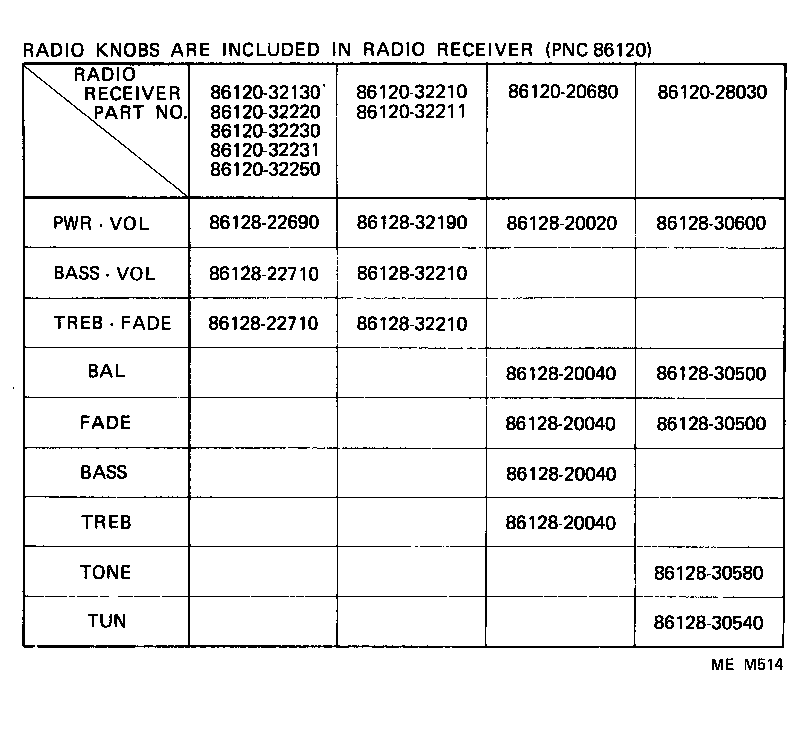

ILLUST NO. 2 OF 2(8608- )
Click highlighted areas on diagram
RADIO RECEIVER KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86120-20680 | ||||
| 86120-28030 | ||||
| 86120-32130 | ||||
| 86120-32210 | ||||
| 86120-32211 | ||||
| 86120-32220 | ||||
| 86120-32230 | ||||
| 86120-32231 | ||||
| 86120-32250 | ||||
| 86128-20020 | ||||
| 86128-20040 | ||||
| 86128-22690 | ||||
| 86128-22710 | ||||
| 86128-30500 | ||||
| 86128-30540 | ||||
| 86128-30580 | ||||
| 86128-30600 | ||||
| 86128-32190 | ||||
| 86128-32210 | ||||
