SV21L-UEPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )SED

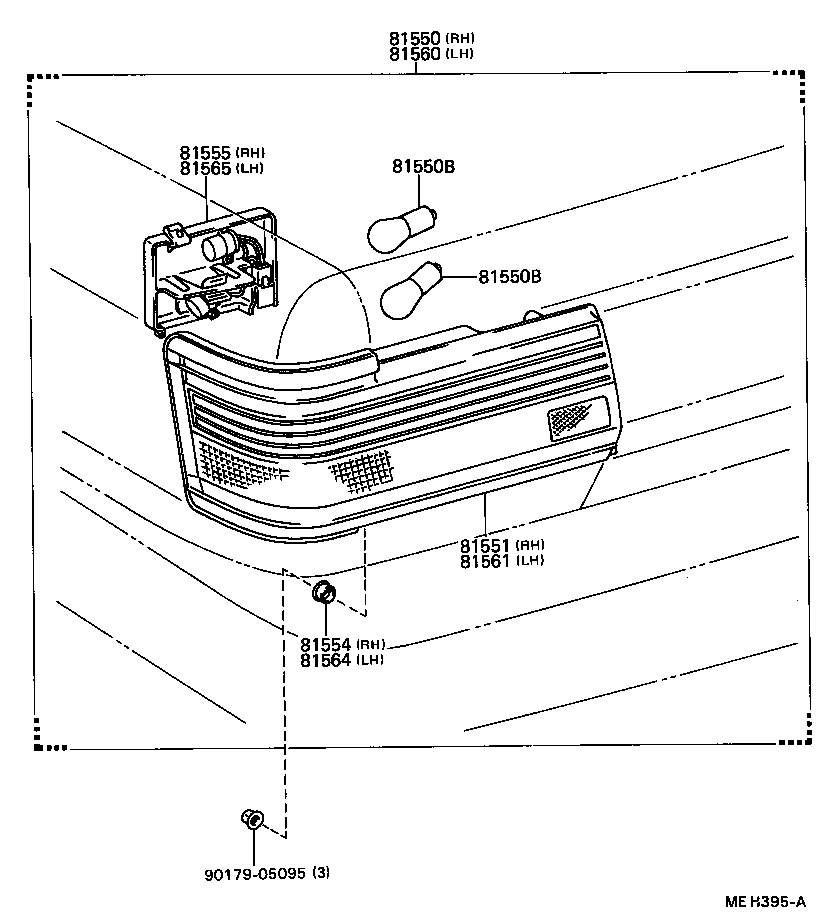

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32140 |
SV21..SED |
1 | ||
| 81550-32140 |
SV2#,VZV21..SED |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
SV2#,VZV21 12V 27/8W |
2 | ||
| 99132-11270 |
SV2#,VZV21 12V 27W |
2 | ||
| 99132-11270 |
SV21 12V 27W,12V 27W(TURN) |
2 | ||
| 99132-21270 |
SV21 12V 27/8W,12V 27/8W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
SV2#,VZV21 12V 27/8W |
2 | ||
| 99132-11270 |
SV2#,VZV21 12V 27W |
2 | ||
| 99132-11270 |
SV21 12V 27W,12V 27W(TURN) |
2 | ||
| 99132-21270 |
SV21 12V 27/8W,12V 27/8W(STOP & TAIL) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-32140 |
SV21..SED |
1 | ||
| 81551-32140 |
SV2#,VZV21..SED |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81558-20720 |
SV21..SED |
2 | ||
| 81558-20720 |
SV2#,VZV21..SED |
2 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-32140 |
SV21..SED |
1 | ||
| 81555-32140 |
SV2#,VZV21..SED |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32140 |
SV21..SED |
1 | ||
| 81560-32140 |
SV2#,VZV21..SED |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-32140 |
SV2#,VZV21..SED |
1 | ||
| 81561-32140 |
SV21..SED |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81558-20720 |
SV21..SED |
2 | ||
| 81558-20720 |
SV2#,VZV21..SED |
2 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-32140 |
SV2#,VZV21..SED |
1 | ||
| 81565-32140 |
SV21..SED |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
