SV21L-UEPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8608- )SV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12030 |
SV21 |
2 | ||
| 04438-12031 |
SV21 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32011 |
SV21 |
2 | ||
| 04438-12050 |
SV21 |
2 | ||
| 41336B - COVER, DUST(FOR FRONT DRIVE SHAFT) | ||||
| 41336-32020 |
SV21 LH |
1 | ||
| 41336-20011 |
SV21 RH |
1 | ||
| 41336-20011 |
SV21 RH |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-32020 |
SV21..4FC |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-39016 |
SV21 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-32040 |
SV21..4FC |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-36001 |
SV21 |
1 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
SV21 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
SV21 |
6 | ||
| 90114-08006 |
SV21 |
12 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
SV21 |
12 | ||
| 90179-08053 |
SV21 |
6 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
SV21 |
2 | ||
| 90520-22005 |
SV2# |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
SV2#,VZV21 |
1 | ||
| 42345-14010 |
SV21 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
SV21 |
2 | ||
| 90949-01076 |
SV21 |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
SV21 |
2 | ||
| 42345-14010 |
SV21,VZV21 |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
SV21 |
2 | ||
| 42345-14020 |
SV21 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20022 |
SV21 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10051 |
SV21 *10-1.25PX22-19.5,*10-1.25PX22-19.5 |
2 | ||
| 90119-10461 |
SV21 *10-1.25PX19.8-8.3,*10-1.25PX14.8-8.3 |
1 | ||
| 90105-10051 |
SV21,VZV21 *10-1.25PX22-19.5,*10-1.25PX22-19.5 |
2 | ||
| 90119-10461 |
SV21,VZV21 *10-1.25PX19.8-8.3,*10-1.25PX14.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
SV21 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
SV21 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-39025 |
SV21..4FC |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-32010 |
SV21 |
1 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10051 |
SV21 |
2 | ||
| 90105-10051 |
SV21 |
2 | ||

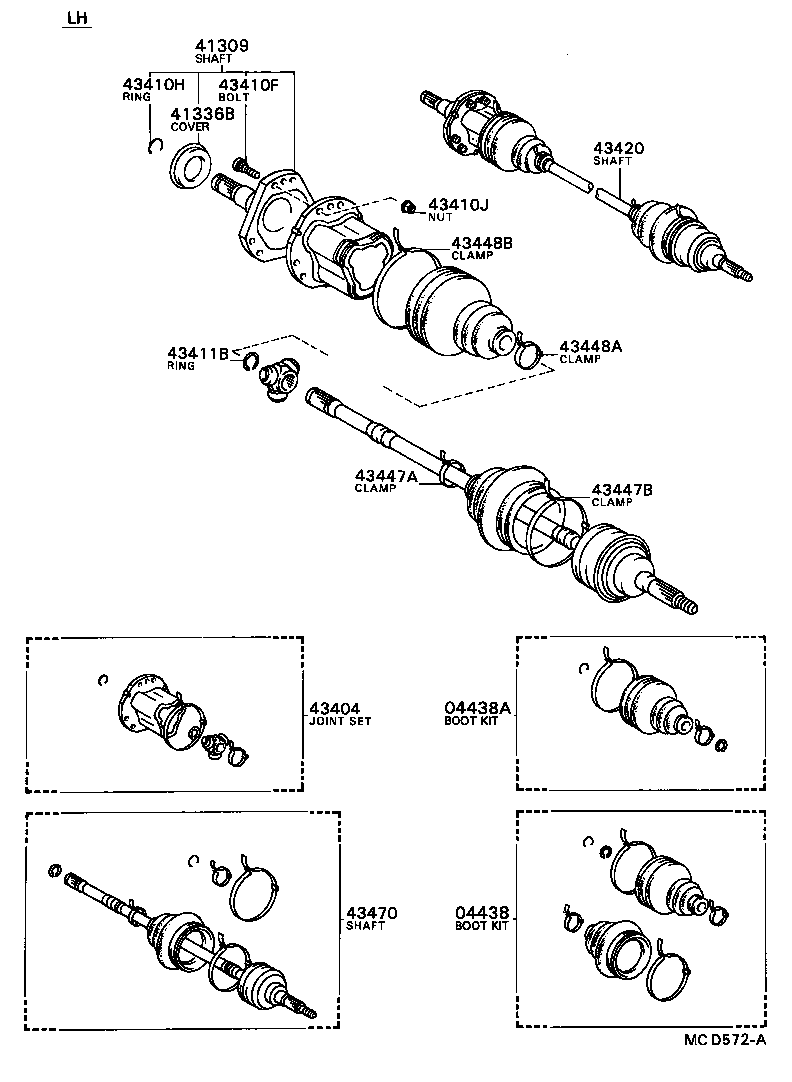

ILLUST NO. 2 OF 2(8608- )SV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-12030 |
SV21 |
2 | ||
| 04438-12031 |
SV21 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-32011 |
SV21 |
2 | ||
| 04438-12050 |
SV21 |
2 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-32010 |
SV21 |
1 | ||
| 41336B - COVER, DUST(FOR FRONT DRIVE SHAFT) | ||||
| 41336-32020 |
SV21 LH |
1 | ||
| 41336-20011 |
SV21 RH |
1 | ||
| 41336-20011 |
SV21 RH |
1 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-39016 |
SV21 |
1 | ||
| 43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT) | ||||
| 90114-08006 |
SV21 |
6 | ||
| 90114-08006 |
SV21 |
12 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-27005 |
SV21 |
1 | ||
| 43410J - NUT (FOR FRONT DRIVE SHAFT) | ||||
| 90179-08053 |
SV21 |
12 | ||
| 90179-08053 |
SV21 |
6 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22005 |
SV21 |
2 | ||
| 90520-22005 |
SV2# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-32030 |
SV21..4FC |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-14010 |
SV2#,VZV21 |
1 | ||
| 42345-14010 |
SV21 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01076 |
SV21 |
2 | ||
| 90949-01076 |
SV21 |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14010 |
SV21 |
2 | ||
| 42345-14010 |
SV21,VZV21 |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-14020 |
SV21 |
2 | ||
| 42345-14020 |
SV21 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-39025 |
SV21..4FC |
1 | ||
