SV21L-UEPDKA (1986)
Toyota Camry
Production
Aug 1986
-
Aug 1988
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )3SFE..SV21

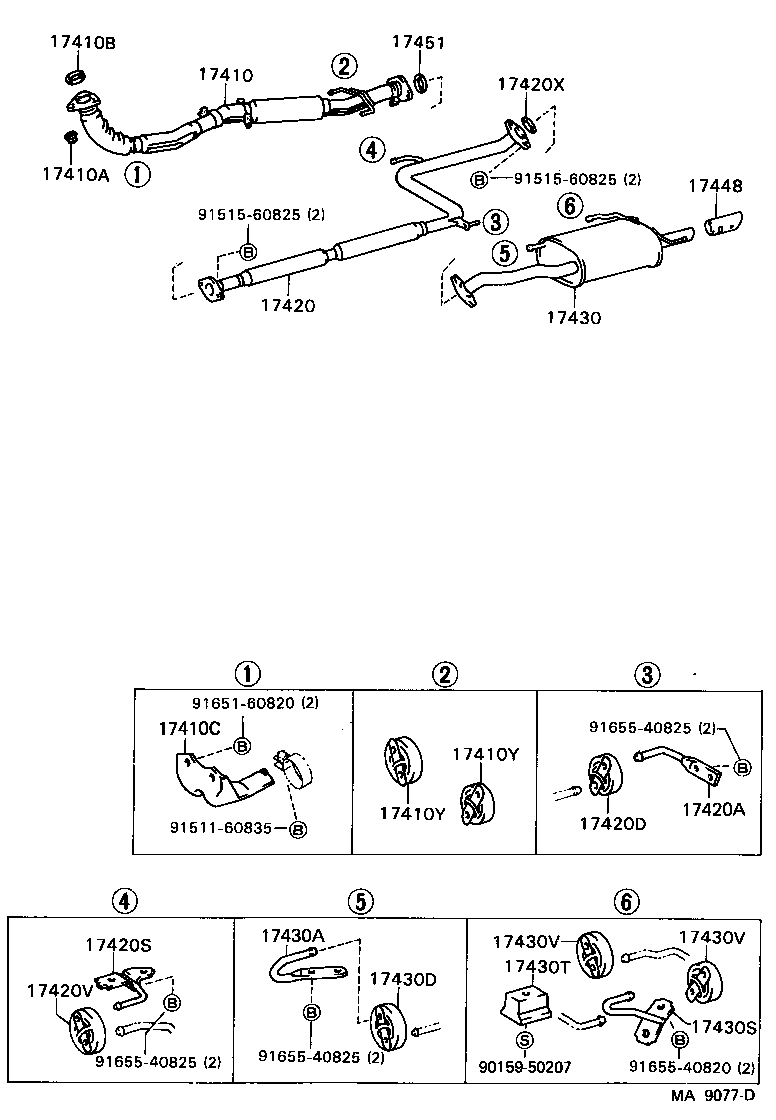

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-74150 |
3SFE..SV21 |
1 | ||
| 17410-74470 |
3SFE..SV21 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3SFE,2VZFE..SV2#,VZV21 |
3 | ||
| 90179-10070 |
3SFE..SV21 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06005 |
3SFE..SV21 |
1 | ||
| 90917-06005 |
3SFE,2VZFE..SV2#,VZV21 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-74050 |
3SFE..SV21 |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-11100 |
3SFE..SV21 |
2 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17565-11100 |
3SFE..SV21 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-74130 |
3SFE..SV21 |
1 | ||
| 17420A - BRACKET, EXHAUST PIPE CENTER, FRONT | ||||
| 17572-63050 |
3SFE,2VZFE..SV21,VZV21 |
1 | ||
| 17572-63050 |
3SFE..SV21 |
1 | ||
| 17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT | ||||
| 17565-11100 |
3SFE..SV21 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17507-63030 |
3SFE..SV21 |
1 | ||
| 17507-63030 |
3SFE,2VZFE..SV21,VZV21 |
1 | ||
| 17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR | ||||
| 17565-11100 |
3SFE..SV2# |
1 | ||
| 17565-11100 |
3SFE..SV21 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06012 |
3SFE,2VZFE..SV2#,VZV21 |
1 | ||
| 90917-06012 |
3SFE..SV21 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-74190 |
3SFE..SV21..SED |
1 | ||
| 17430-74191 |
3SFE..SV21..SED |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17563-63080 |
3SFE..SV21 |
1 | ||
| 17563-63080 |
3SFE,2VZFE..SV21,VZV21 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-55020 |
3SFE..SV21 |
1 | ||
| 17565-55020 |
3SFE,2VZFE..SV21,VZV21 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-63060 |
3SFE..SV21 |
1 | ||
| 17509-63060 |
3SFE,2VZFE..SV21,VZV21 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17591-36011 |
3SFE,2VZFE..SV2#,VZV21 |
1 | ||
| 17591-36010 |
3SFE..SV21 |
1 | ||
| 17591-36010 |
3SFE..SV2# |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
3SFE..SV21 |
2 | ||
| 17565-63120 |
3SFE,2VZFE..SV2#,VZV21 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-63120 |
3SFE..SV21 |
2 | ||
| 17565-63120 |
3SFE,2VZFE..SV2#,VZV21 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3SFE..SV21 |
1 | ||
| 90917-06012 |
3SFE..SV2# |
1 | ||
| Common parts | ||||
| 90159-50207 | ||||
| 91511-60835 | ||||
| 91515-60825 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 91655-40825 | ||||
