SV21L-UEMNKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SV21,VZV21

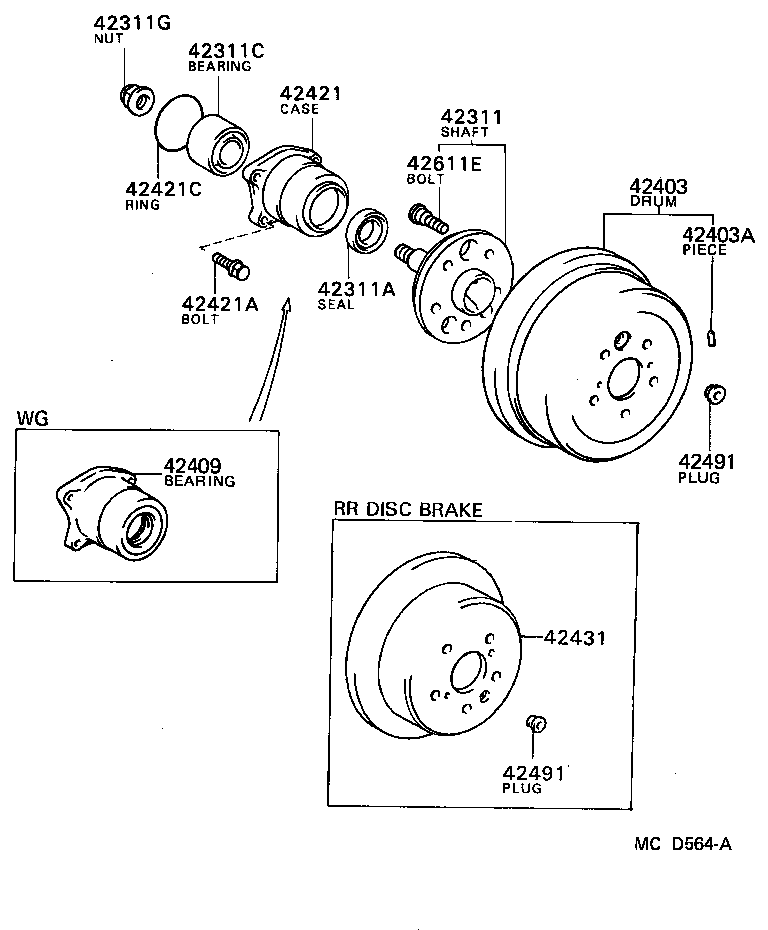

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311G 42403 42403A 42409 42421 42421A 42421C 42431 42491 42491 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42301-32030

SV21

 2
42301-32031

SV21,VZV21

 1
42301-32031

SV21

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42018

SV21,VZV21..SED

 1
90311-42018

SV21..SED

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-30044

SV21,VZV21..SED

 1
90369-30044

SV21..SED

 2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-20003

SV21

 2
90179-20003

SV21,VZV21

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-32030

SV21

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

SV21

20G,20G

 2
90937-01196

SV21

50G,50G

 2
90937-01117

SV21

10G,10G

 2
90937-01195

SV21

40G,40G

 2
90937-01287

SV21

10G

 1
90937-01288

SV21

20G,20G

 2
90937-01197

SV21

60G,60G

 2
90937-01289

SV21

30G,30G

 2
90937-01287

SV21

10G,10G

 2
90937-01119

SV21

30G,30G

 2
90937-01289

SV21

30G

 1
90937-01288

SV21

20G

 1
42421 - CASE, REAR AXLE BEARING
42421-20020

SV21,VZV21..SED

 1
42421-20020

SV21..SED

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90105-10124

SV21

 8
90105-10124

SV21,VZV21

 4
42421C - RING, O (FOR REAR AXLE BEARING CASE)
90301-63003

SV21

 2
90301-63003

SV21,VZV21

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

SV21

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

SV21

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

SV2#,VZV21

 5
90942-02047

SV21

 10
