SV21L-UEMDKA (1986)
Toyota Camry
(8608- )SED

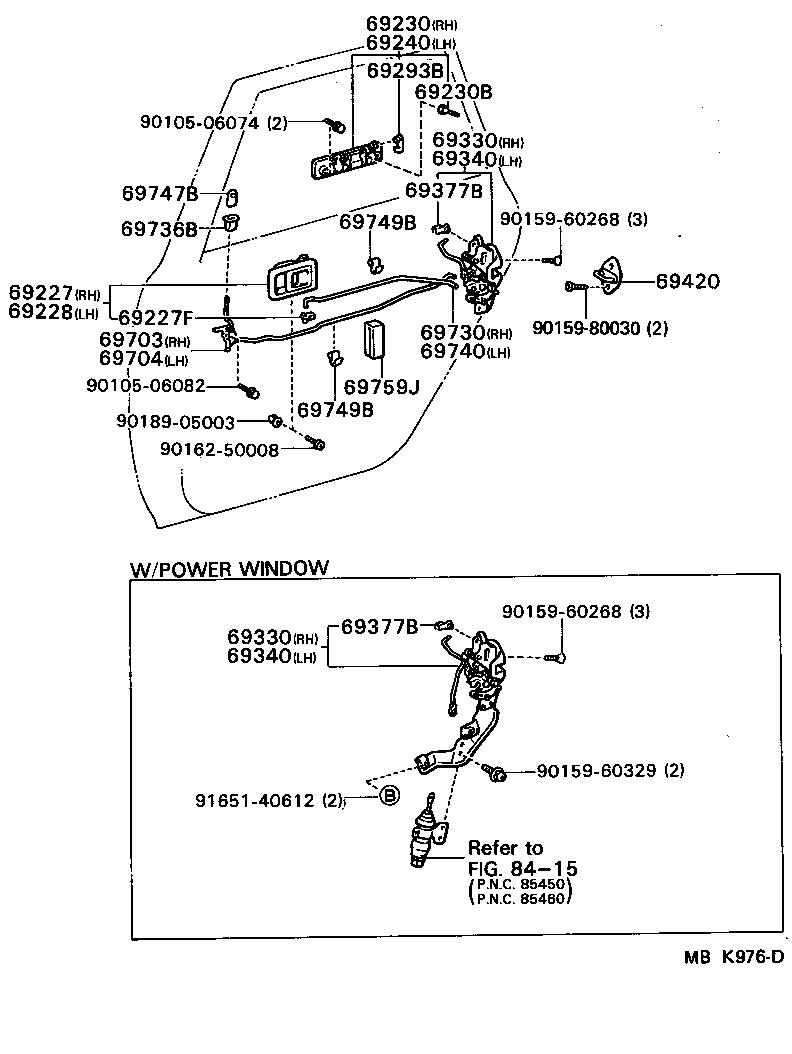

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69205-3202003 |
SV21..DX,STD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-3202004 |
SV2#,VZV21..DX,STD DARK BLUE,TRIM8# |
1 | ||
| 69205-3202002 |
SV21..(DX,STD)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69205-3202005 |
SV21..DX,STD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-3202005 |
SV21,VZV21..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 69205-3202004 |
SV21..DX,STD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69205-3202003 |
SV2#,VZV21..DX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-3202002 |
SV2#,VZV21..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 69227F - SNAP(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69759-14050 |
SV21..DX,STD RH |
1 | ||
| 69759-24070 |
SV21..DX,STD LH |
1 | ||
| 69759-14050 |
SV2#,VZV21..DX,STD RH |
1 | ||
| 69759-24070 |
SV2#,VZV21..DX,STD LH |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69206-3202002 |
SV21..(DX,STD)..USA MAROON,MAROON,TRIM3# |
1 | ||
| 69206-3202004 |
SV21..DX,STD BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-3202005 |
SV21..DX,STD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-3202003 |
SV21..DX,STD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-3202003 |
SV2#,VZV21..DX,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-3202005 |
SV21,VZV21..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 69206-3202004 |
SV2#,VZV21..DX,STD DARK BLUE,TRIM8# |
1 | ||
| 69206-3202002 |
SV2#,VZV21..(DX,STD)..USA MAROON,TRIM3# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-32030 |
SV21 |
1 | ||
| 69210-32030 |
SV2#,VZV21 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
SV21 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-32030 |
SV2#,VZV21 |
1 | ||
| 69220-32030 |
SV21 |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
SV21 RH |
1 | ||
| 69293-12060 |
SV21 LH |
1 | ||
| 69293-12060 |
SV2#,VZV21..DX,STD LH |
1 | ||
| 69293-12050 |
SV2#,VZV21..DX,STD RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-32110 |
SV21 W/O *PW |
1 | ||
| 69330-32110 |
SV2#,VZV21 |
1 | ||
| 69330-32120 |
SV21..DX,LE W/*PW |
1 | ||
| 69330-32120 |
SV2#,VZV21..DX,LE W(POWER WINDOW) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-32110 |
SV21 W/O *PW |
1 | ||
| 69330-32110 |
SV2#,VZV21 |
1 | ||
| 69330-32120 |
SV21..DX,LE W/*PW |
1 | ||
| 69330-32120 |
SV2#,VZV21..DX,LE W(POWER WINDOW) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-32110 |
SV21 W/O *PW |
1 | ||
| 69340-32120 |
SV2#,VZV21..DX,LE W(POWER WINDOW) |
1 | ||
| 69340-32110 |
SV2#,VZV21 |
1 | ||
| 69340-32120 |
SV21..DX,LE W/*PW |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-32110 |
SV21 W/O *PW |
1 | ||
| 69340-32120 |
SV2#,VZV21..DX,LE W(POWER WINDOW) |
1 | ||
| 69340-32110 |
SV2#,VZV21 |
1 | ||
| 69340-32120 |
SV21..DX,LE W/*PW |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-24050 |
SV2#,VZV21 LH |
2 | ||
| 69759-24050 |
SV21 LH |
2 | ||
| 69759-24060 |
SV21 RH |
2 | ||
| 69759-24060 |
SV2#,VZV21 RH |
2 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-24050 |
SV2#,VZV21 LH |
2 | ||
| 69759-24050 |
SV21 LH |
2 | ||
| 69759-24060 |
SV21 RH |
2 | ||
| 69759-24060 |
SV2#,VZV21 RH |
2 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
SV21 |
2 | ||
| 69410-87001 |
SV2#,VZV21 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-32040 |
SV2#,VZV21 |
1 | ||
| 69770-32040 |
SV21 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-32040 |
SV21 |
1 | ||
| 69780-32040 |
SV2#,VZV21 |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-32020 |
SV21 |
1 | ||
| 69713-32020 |
SV2#,VZV21 |
1 | ||
| 69736B - GUIDE, REAR DOOR LOCK LINK | ||||
| 69736-12030 |
SV2#,VZV21 |
2 | ||
| 69736-12030 |
SV21 |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-32020 |
SV2#,VZV21 |
1 | ||
| 69714-32020 |
SV21 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-3202002 |
SV21..USA MAROON,MAROON,TRIM3# |
2 | ||
| 69741-3202002 |
SV2#,VZV21..USA MAROON,TRIM3# |
2 | ||
| 69741-3202003 |
SV21 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3202005 |
SV25..LE;SV21,VZV21 DARK BEIGE,TRIM4# |
2 | ||
| 69741-3202003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-3202005 |
SV21 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69741-3202004 |
SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69741-3202004 |
SV21 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30020 |
SV21 |
4 | ||
| 69749-30020 |
SV2#,VZV21 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-30020 |
SV21 |
4 | ||
| 69749-30020 |
SV2#,VZV21 |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-30021 |
SV21 |
2 | ||
| 69759-30021 |
SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90105-06082 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80030 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8415 | ||||
