SV21L-UEMDKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )5F

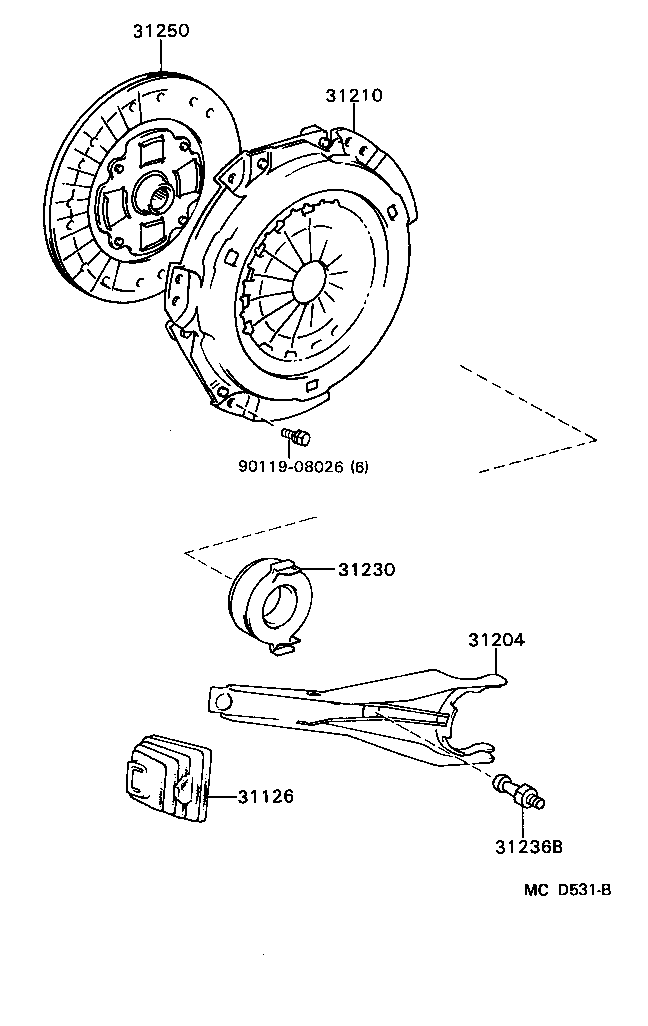

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

SV21..5F

 1
31126-32010

SV2#,VZV21..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-32010

SV21..5F

 1
31210 - COVER ASSY, CLUTCH
31210-32050

SV21..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32020

SV21..5F

 1
31230-32010

SV21..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-30030

SV21..5F

 1
31250 - DISC ASSY, CLUTCH
31250-32041

SV21..5F

 1
31250-32032

SV21..5F

 1
Common parts
90119-08026
