SV21L-UEMDKA (1986)

Toyota Camry

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

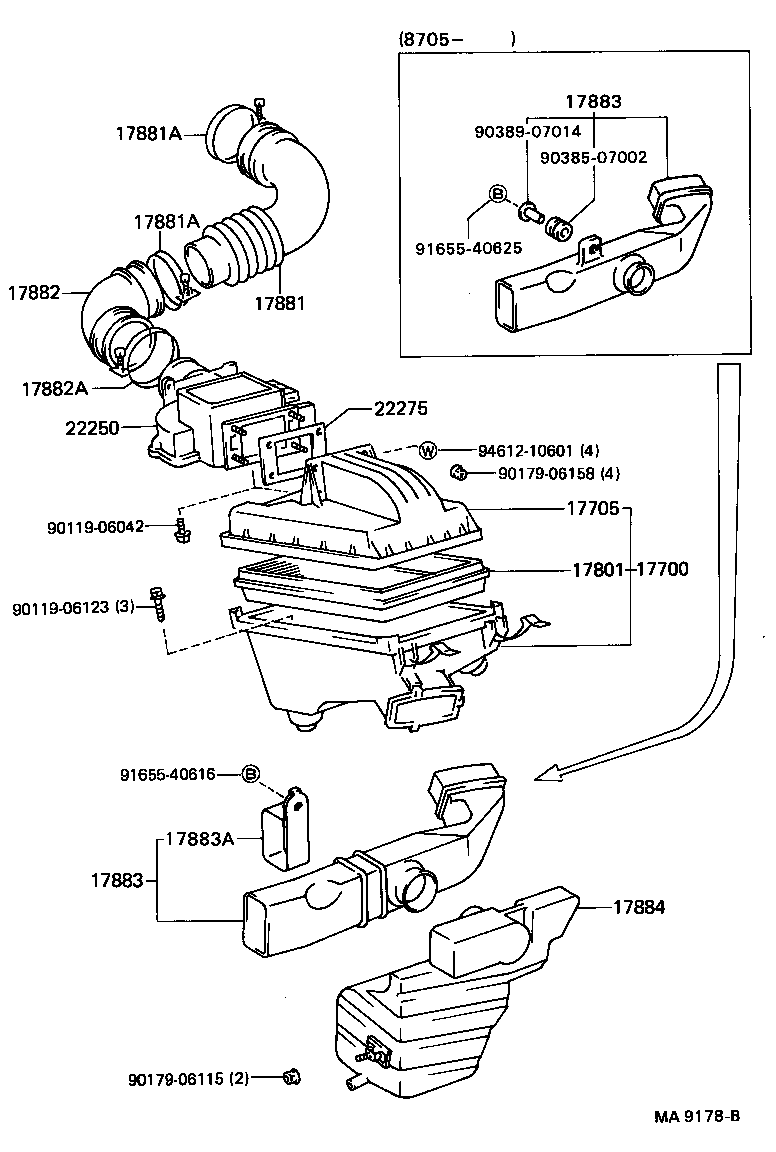

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17882 17882A 17883 17883 17883A 17884 22250 22275 9011906042 9011906123 9017906115 9017906158 9038507002 9038907014 9165540616 9165540625 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74100

3SFE..SV21

 1
17700-74100

3SFE..SV2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74070

3SFE..SV21

 1
17705-74070

3SFE..SV2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

3SFE..SV21

 1
17801-74010

3SFE..SV2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74110

3SFE..SV2#

 1
17881-74110

3SFE..SV21

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

3SFE..SV21

HOSE SIDE

 1
96111-10730

3SFE..SV2#

HOSE SIDE

 1
96111-10750

3SFE..SV21

THROTTLE BODY SIDE

 1
96111-10750

3SFE..SV2#

THROTTLE BODY SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

3SFE..SV21

HOSE SIDE

 1
96111-10730

3SFE..SV2#

HOSE SIDE

 1
96111-10750

3SFE..SV21

THROTTLE BODY SIDE

 1
96111-10750

3SFE..SV2#

THROTTLE BODY SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74040

3SFE..SV21

 1
17882-74040

3SFE..SV2#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

3SFE..SV21

 1
96111-10800

3SFE..SV2#

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63110

3SFE..SV2#

 1
17882-63110

3SFE..SV21

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63110

3SFE..SV2#

 1
17882-63110

3SFE..SV21

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01046

3SFE..SV21

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-63030

3SFE..SV2#

 1
17883-63030

3SFE..SV21

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-74100

3SFE..SV21

 1
22275 - GASKET, AIR FLOW METER
22275-41010

3SFE..SV21

 1
22275-41010

3SFE..SV2#

 1
Common parts
90119-06042
90119-06123
90179-06115
90179-06158
90385-07002
90389-07014
91655-40616
91655-40625
94612-10601
