SV11L-UEPNEA (1983)
Toyota Camry
(8301- )SV11..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

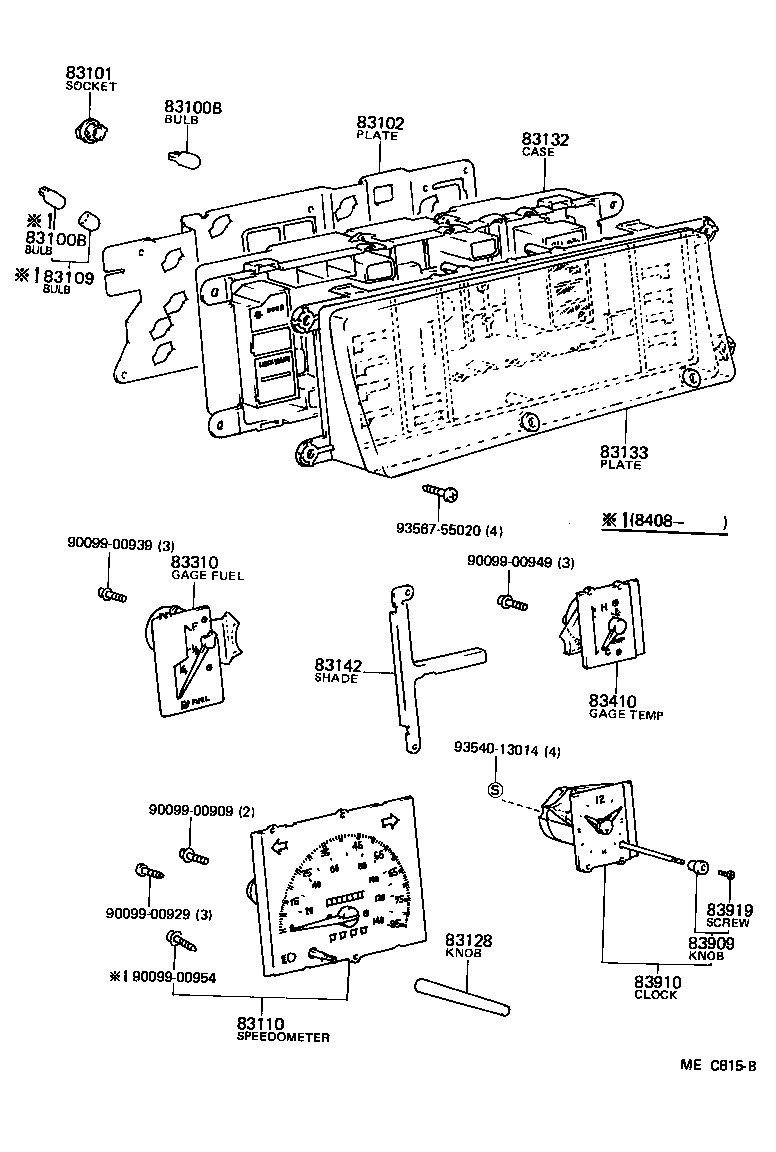

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV1#,SV11 12V 3.4W,12V 3.4W |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV1#,SV11 12V 3.4W,12V 3.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV1#,SV11 12V 3.4W |
15 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32650 |
SV11..DLX |
1 | ||
| 83247-32231 |
SV11..DLX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CV1#,SV11 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32091 |
SV11..DLX..USA |
1 | ||
| 83110-32220 |
SV11..DLX..USA |
1 | ||
| 83110-32090 |
SV11..DLX..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32010 |
CV1#,SV11 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32210 |
SV11..DLX |
1 | ||
| 83132-32530 |
SV11..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32110 |
CV1#,SV11..DLX |
1 | ||
| 83142 - SHADE, COMBINATION METER LAMP | ||||
| 83142-32010 |
CV1#,SV11..DLX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32011 |
CV10,SV11..DLX |
1 | ||
| 83243-32170 |
CV1#,SV11..DLX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32010 |
CV10,SV11..DLX |
1 | ||
| 83244-32210 |
CV1#,SV11..DLX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
CV1#,SV11..DLX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32010 |
CV10,SV11..DLX |
1 | ||
| 83910-32050 |
CV1#,SV11..DLX |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
CV1#,SV11..DLX |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00949 | ||||
| 90099-00954 | ||||
| 93540-13014 | ||||
| 93567-55020 | ||||
(8301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32070 |
CV10,SV11 |
1 | ||
| 83710-32071 |
CV1#,SV11 |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 82711-32420 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV1#,SV11 12V 3.4W,12V 3.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV1#,SV11 12V 3.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
CV1#,SV11 12V 3.4W |
15 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32650 |
SV11..DLX |
1 | ||
| 83247-32231 |
SV11..DLX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
CV1#,SV11 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32091 |
SV11..DLX..USA |
1 | ||
| 83110-32220 |
SV11..DLX..USA |
1 | ||
| 83110-32090 |
SV11..DLX..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32010 |
CV1#,SV11 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32210 |
SV11..DLX |
1 | ||
| 83132-32530 |
SV11..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32110 |
CV1#,SV11..DLX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32011 |
CV10,SV11..DLX |
1 | ||
| 83243-32170 |
CV1#,SV11..DLX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32010 |
CV10,SV11..DLX |
1 | ||
| 83244-32210 |
CV1#,SV11..DLX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32010 |
CV10,SV11..DLX |
1 | ||
| 83910-32050 |
CV1#,SV11..DLX |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00963 | ||||
| 93315-13010 | ||||
| 93540-13014 | ||||
| 93567-55020 | ||||
