SV11L-UEPNEA (1983)
Toyota Camry
(8301-8408)DLX

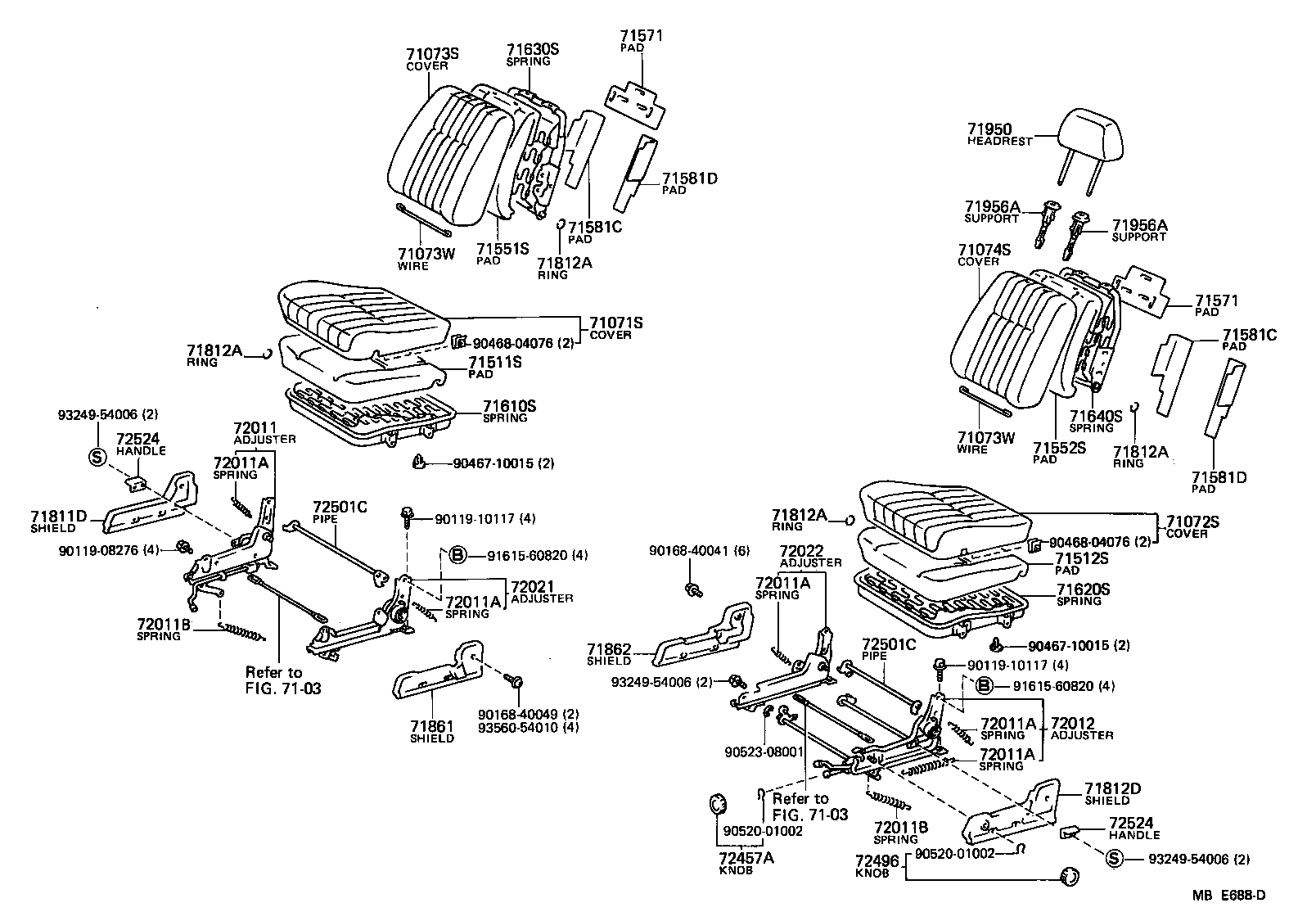

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71072-3205005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3205103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3205004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3205105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3205104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3219004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3205003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3219005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3219003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3206105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3206103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3220003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3206104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3220004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3220005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3206104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3220003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3206105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3220004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3220005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV11 WD=2.0,L=460 |
4 | ||
| 90580-29011 |
CV1#,SV11..DLX WD=2.9,L=330 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV11 WD=2.0,L=460 |
4 | ||
| 90580-29011 |
CV1#,SV11..DLX WD=2.9,L=330 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-3204004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-3204105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3205003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-3204104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3205005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3205004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32030 |
CV10,SV11..DLX |
1 | ||
| 71511-32060 |
CV1#,SV11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32030 |
CV10,SV11..DLX |
1 | ||
| 71511-32060 |
CV1#,SV11 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32040 |
CV10,SV11..DLX |
1 | ||
| 71551-32070 |
CV1#,SV11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32040 |
CV10,SV11..DLX |
1 | ||
| 71551-32070 |
CV1#,SV11 |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV11 |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV11 |
2 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-32010 |
CV10,SV11 |
2 | ||
| 71583-32010 |
CV1#,SV11..DLX |
2 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-32010 |
CV10,SV11 |
2 | ||
| 71583-32010 |
CV1#,SV11..DLX |
2 | ||
| 71581D - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-32010 |
CV1#,SV11..DLX |
2 | ||
| 71584-32010 |
CV10,SV11 |
2 | ||
| 71581D - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-32010 |
CV1#,SV11..DLX |
2 | ||
| 71584-32010 |
CV10,SV11 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32010 |
CV1#,SV11 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32020 |
CV1#,SV11 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32040 |
CV1#,SV11..DLX |
1 | ||
| 71630-32010 |
CV10,SV11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32010 |
CV10,SV11..DLX |
1 | ||
| 71630-32040 |
CV1#,SV11..DLX |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71811-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3202006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-3202004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3202003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71812-3202013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-3202005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71861-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71861-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71862-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71862-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3201005 |
CV10,SV11..DLX BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3201004 |
CV10,SV11..DLX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3211004 |
CV1#,SV11..DLX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3211005 |
CV1#,SV11..DLX BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3201003 |
CV10,SV11..DLX GRAY,GRAY,TRIM1# |
2 | ||
| 71910-3211003 |
CV1#,SV11..DLX SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
CV10,SV11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
CV1#,SV11 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001025 |
CV10,SV11 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV11 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV11 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV11 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006013 |
CV1#,SV11 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
CV10,SV11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
CV1#,SV11 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001025 |
CV10,SV11 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV11 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV11 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV11 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006013 |
CV1#,SV11 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32010 |
CV10,SV11 |
1 | ||
| 72011-32030 |
CV1#,SV11 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18035 |
CV10,SV11 |
2 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18035 |
CV10,SV11 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32050 |
CV1#,SV11 |
1 | ||
| 72012-32020 |
CV10,SV11 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32010 |
CV10,SV11 |
1 | ||
| 72021-32040 |
CV1#,SV11 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32050 |
CV1#,SV11 |
1 | ||
| 72022-32020 |
CV10,SV11 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72496-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 72496-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 72496-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 72496-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 72496-3201023 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72457-1403004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 72457-1403035 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 72457-1403003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1403016 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 72457-1403023 |
CV1#,SV11 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV11 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV11 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005013 |
CV10,SV11 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004013 |
CV10,SV11 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV1#,SV11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004055 |
CV1#,SV11 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004026 |
CV10,SV11 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005053 |
CV1#,SV11 RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2005026 |
CV10,SV11 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005055 |
CV1#,SV11 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004053 |
CV1#,SV11 LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005013 |
CV10,SV11 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004013 |
CV10,SV11 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV1#,SV11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004055 |
CV1#,SV11 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004026 |
CV10,SV11 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005053 |
CV1#,SV11 RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2005026 |
CV10,SV11 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005055 |
CV1#,SV11 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004053 |
CV1#,SV11 LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10117 | ||||
| 90168-40041 | ||||
| 90168-40049 | ||||
| 90467-10015 | ||||
| 90468-04076 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91615-60820 | ||||
| 93249-54006 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7103 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71072-3205005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3205103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3205004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3205105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3205104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3219004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3205003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3219005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3219003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3206105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3206103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3220003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3206104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3220004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3220005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3206104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3220003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3206105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3220004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3220005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV11 WD=2.0,L=460 |
4 | ||
| 90580-29011 |
CV1#,SV11..DLX WD=2.9,L=330 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV11 WD=2.0,L=460 |
4 | ||
| 90580-29011 |
CV1#,SV11..DLX WD=2.9,L=330 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3206003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-3204004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204003 |
SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-3204105 |
CV10,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206004 |
SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3206005 |
SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3205003 |
CV1#,SV11..DLX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-3204104 |
CV10,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3205005 |
CV1#,SV11..DLX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3205004 |
CV1#,SV11..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3204103 |
CV10,SV11..DLX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32030 |
CV10,SV11..DLX |
1 | ||
| 71511-32060 |
CV1#,SV11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32030 |
CV10,SV11..DLX |
1 | ||
| 71511-32060 |
CV1#,SV11 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32040 |
CV10,SV11..DLX |
1 | ||
| 71551-32070 |
CV1#,SV11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32040 |
CV10,SV11..DLX |
1 | ||
| 71551-32070 |
CV1#,SV11 |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV11 |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV11 |
2 | ||
| 71581C - PAD, FRONT SEAT BACK CORNER, C | ||||
| 71583-32010 |
CV10,SV11 |
2 | ||
| 71583-32010 |
CV1#,SV11..DLX |
2 | ||
| 71581D - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-32010 |
CV1#,SV11..DLX |
2 | ||
| 71584-32010 |
CV10,SV11 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32010 |
CV1#,SV11 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32020 |
CV1#,SV11 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32040 |
CV1#,SV11..DLX |
1 | ||
| 71630-32010 |
CV10,SV11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32010 |
CV10,SV11..DLX |
1 | ||
| 71630-32040 |
CV1#,SV11..DLX |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71811-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV11 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3202006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-3202004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3202003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71812-3202013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-3202005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71861-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71861-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 71862-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 71862-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-3201013 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3201005 |
CV10,SV11..DLX BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3201004 |
CV10,SV11..DLX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3211004 |
CV1#,SV11..DLX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3211005 |
CV1#,SV11..DLX BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3201003 |
CV10,SV11..DLX GRAY,GRAY,TRIM1# |
2 | ||
| 71910-3211003 |
CV1#,SV11..DLX SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
CV10,SV11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
CV1#,SV11 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001025 |
CV10,SV11 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV11 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV11 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV11 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006013 |
CV1#,SV11 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
CV10,SV11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
CV1#,SV11 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001025 |
CV10,SV11 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
CV1#,SV11 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV11 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV11 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006013 |
CV1#,SV11 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32010 |
CV10,SV11 |
1 | ||
| 72011-32030 |
CV1#,SV11 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV1#,SV11 WD=4.5 |
1 | ||
| 90506-14039 |
CV1#,SV11 WD=1.4 |
4 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32050 |
CV1#,SV11 |
1 | ||
| 72012-32020 |
CV10,SV11 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32010 |
CV10,SV11 |
1 | ||
| 72021-32040 |
CV1#,SV11 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32050 |
CV1#,SV11 |
1 | ||
| 72022-32020 |
CV10,SV11 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72496-3201003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 72496-3201004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 72496-3201006 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 72496-3201005 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 72496-3201023 |
CV1#,SV11 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72457-1403004 |
CV1#,SV11 BLUE,BLUE,TRIM8# |
1 | ||
| 72457-1403035 |
CV1#,SV11 BEIGE,BEIGE,TRIM4# |
1 | ||
| 72457-1403003 |
CV10,SV11 GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1403016 |
CV10,SV11 BROWN,BROWN,TRIM4# |
1 | ||
| 72457-1403023 |
CV1#,SV11 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV11 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV11 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005013 |
CV10,SV11 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004013 |
CV10,SV11 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV1#,SV11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004055 |
CV1#,SV11 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004026 |
CV10,SV11 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005053 |
CV1#,SV11 RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2005026 |
CV10,SV11 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005055 |
CV1#,SV11 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004053 |
CV1#,SV11 LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005013 |
CV10,SV11 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004013 |
CV10,SV11 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV1#,SV11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004055 |
CV1#,SV11 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004026 |
CV10,SV11 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005053 |
CV1#,SV11 RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2005026 |
CV10,SV11 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005055 |
CV1#,SV11 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004053 |
CV1#,SV11 LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10117 | ||||
| 90159-40088 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90467-10015 | ||||
| 90468-04076 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91615-60820 | ||||
| 93249-54006 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 7103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
