AXVH70L-CEXNBA (2017)

Toyota Camry/Hybrid (Nap)

Production Jun 2017 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706-1909)

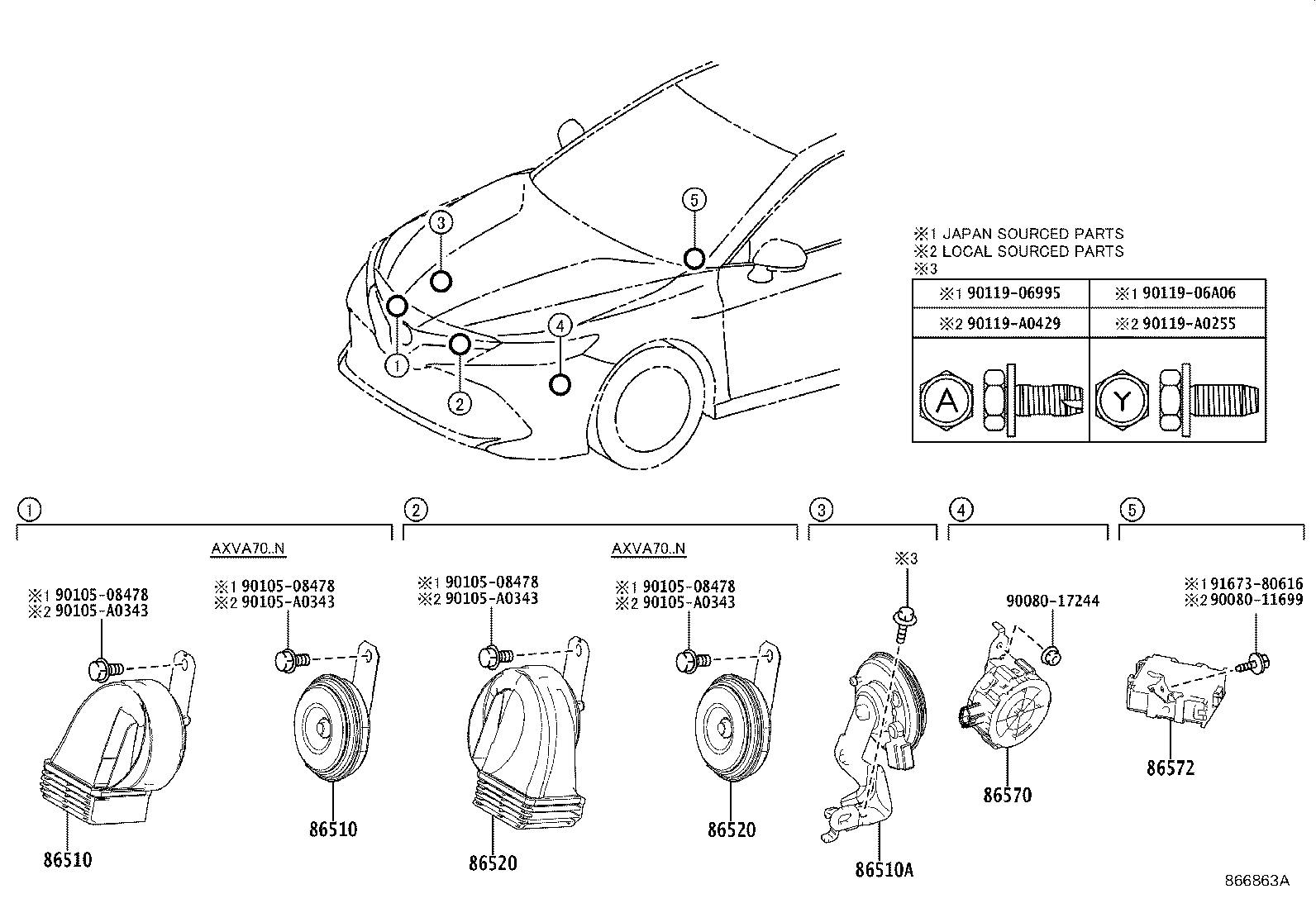

Click highlighted areas on diagram

diagram 86510 86510 86510A 86520 86520 86570 86572 9008011699 9008017244 9010508478 9010508478 9010508478 9010508478 90105A0343 90105A0343 90105A0343 90105A0343 9011906995 9011906A06 90119A0255 90119A0429 9167380616
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510A - HORN ASSY, SECURITY
86560-06060

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-33070

AXVH7#

 1
86570-41010

AXVH7#

 1
86570-33090

AXVH7#

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-33120

AXVH7#

 1
86572-33210

AXVH7#..SE

 1
86572-33090

AXVH7#

 1
86572-33121

AXVH7#..LE,XLE

 1
Common parts
90080-11699
90080-17244
90105-08478
90105-A0343
90119-06995
90119-06A06
90119-A0255
90119-A0429
91673-80616

(1909-2008)

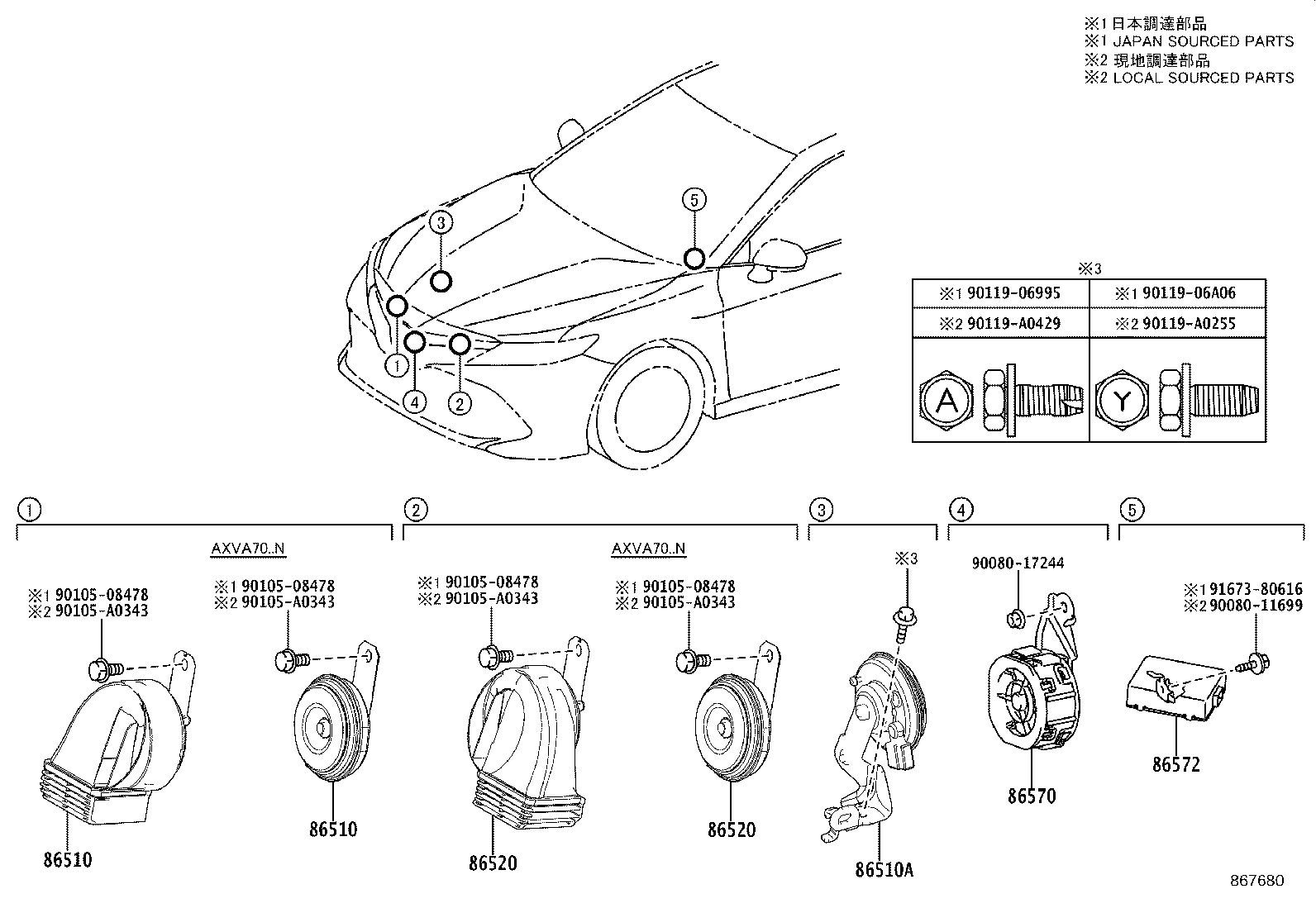

Click highlighted areas on diagram

diagram 86510 86510 86510A 86520 86520 86570 86572 9008011699 9008017244 9010508478 9010508478 9010508478 9010508478 90105A0343 90105A0343 90105A0343 90105A0343 9011906995 9011906A06 90119A0255 90119A0429 9167380616
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510A - HORN ASSY, SECURITY
86560-06060

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-33070

AXVH7#

 1
86570-41010

AXVH7#

 1
86570-33090

AXVH7#

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-33120

AXVH7#

 1
86572-33210

AXVH7#..SE

 1
86572-33090

AXVH7#

 1
86572-33121

AXVH7#..LE,XLE

 1
Common parts
90080-11699
90080-17244
90105-08478
90105-A0343
90119-06995
90119-06A06
90119-A0255
90119-A0429
91673-80616

(2008- )

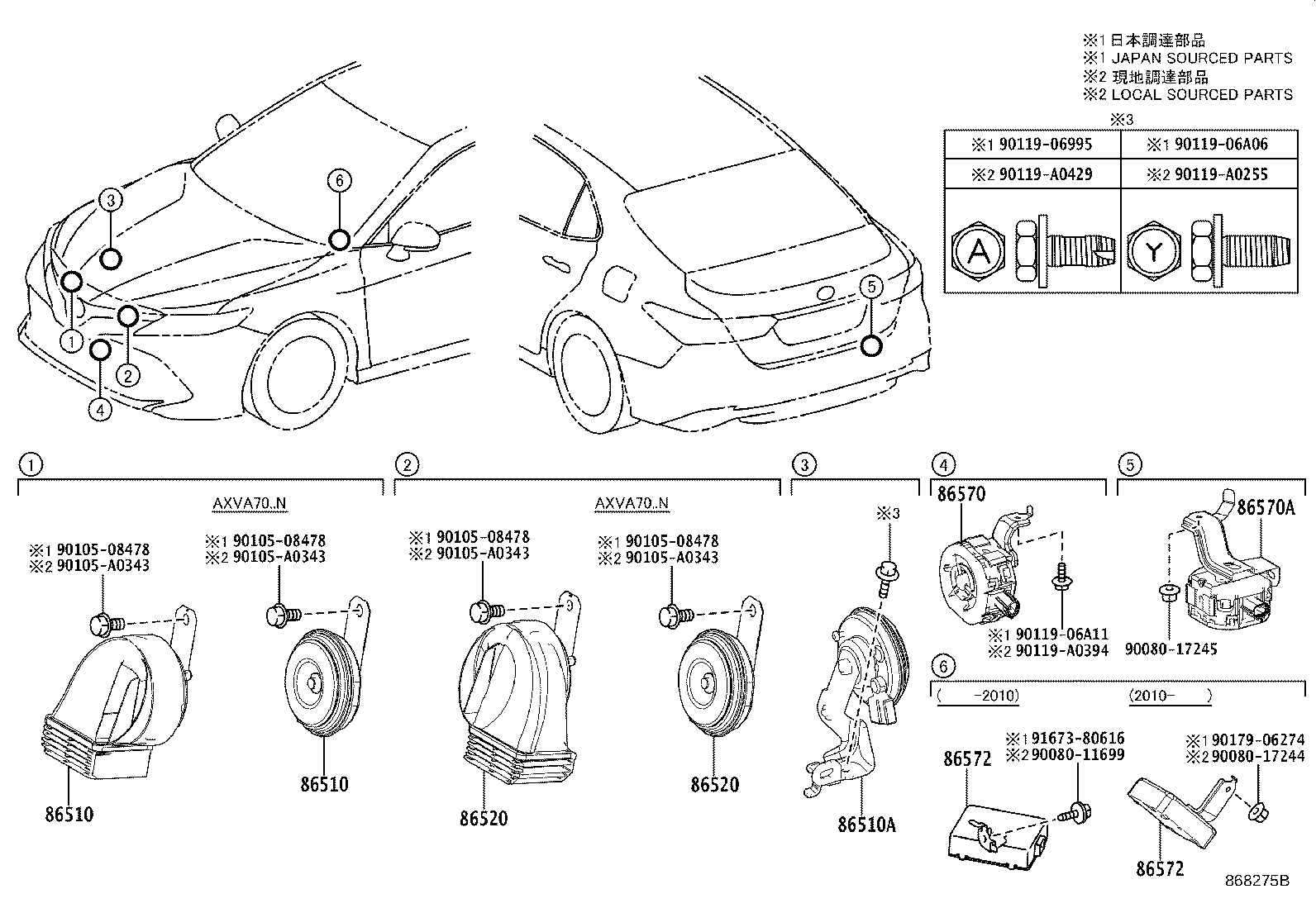

Click highlighted areas on diagram

diagram 86510 86510 86510A 86520 86520 86570 86570A 86572 86572 9008011699 9008017244 9008017245 9010508478 9010508478 9010508478 9010508478 90105A0343 90105A0343 90105A0343 90105A0343 9011906995 9011906A06 9011906A11 90119A0255 90119A0394 90119A0429 9017906274 9167380616
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510 - HORN ASSY, HIGH PITCHED
86510-0E040

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86510A - HORN ASSY, SECURITY
86560-06060

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0E020

AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-33070

AXVH7#

 1
86570-41010

AXVH7#

 1
86570-33090

AXVH7#

 1
86570A - SPEAKER ASSY, VEHICLE APPROACHING, NO.2
86570-33150

AXVH7#

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-33120

AXVH7#

 1
86572-33210

AXVH7#..SE

 1
86572-33090

AXVH7#

 1
86572-33121

AXVH7#..LE,XLE

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-33120

AXVH7#

 1
86572-33210

AXVH7#..SE

 1
86572-33090

AXVH7#

 1
86572-33121

AXVH7#..LE,XLE

 1
Common parts
90080-11699
90080-17244
90080-17245
90105-08478
90105-A0343
90119-06995
90119-06A06
90119-06A11
90119-A0255
90119-A0394
90119-A0429
90179-06274
91673-80616
