AXVH70L-CEXNBA (2020)

Toyota Camry/Hybrid (Nap)

Production Oct 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )A25AFXS

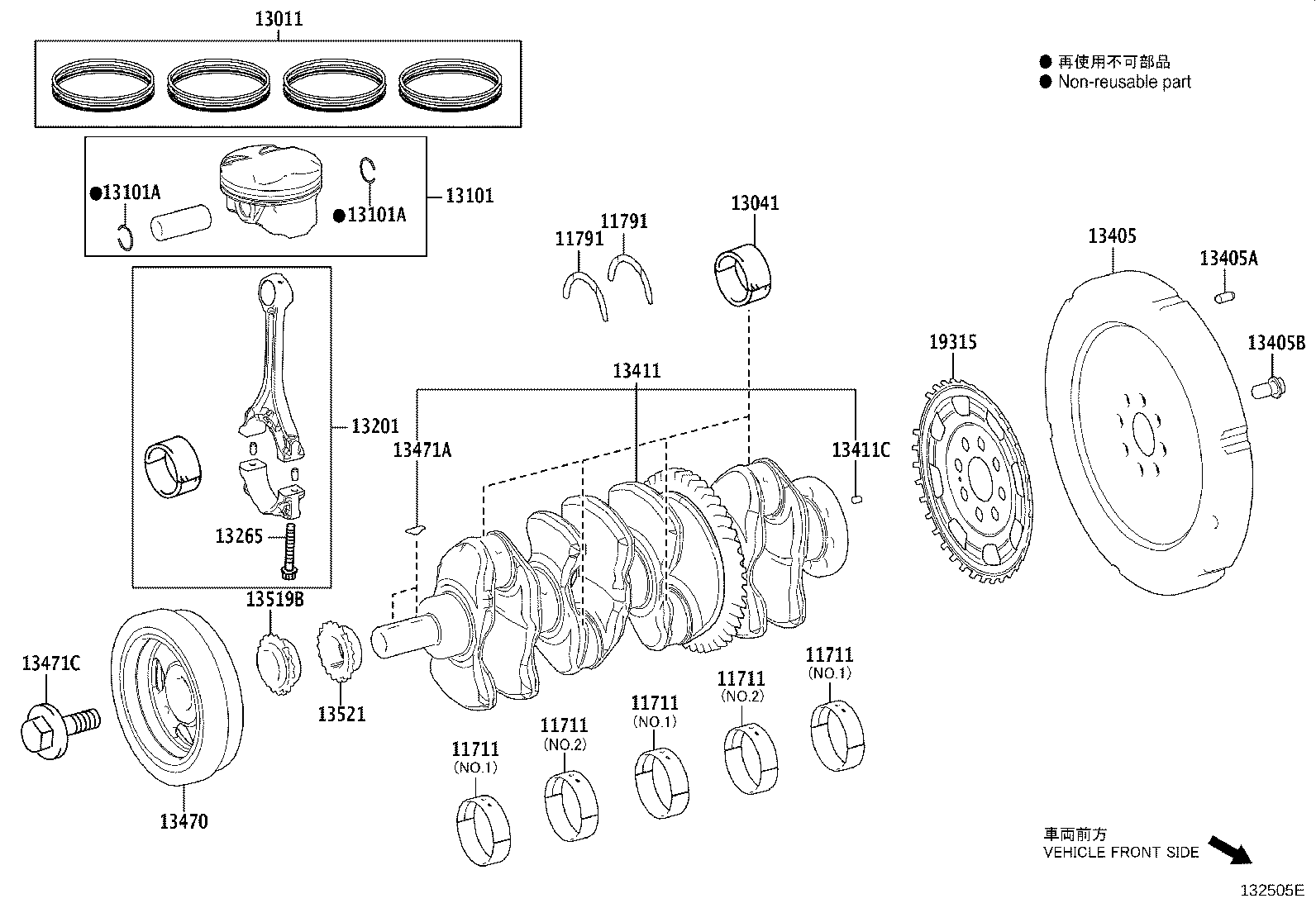

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13101 13101A 13101A 13201 13265 13405 13405A 13405B 13411 13411C 13470 13471A 13471C 13519B 13521 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.1,REFER R/M

 3
11701-F001005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.1,REFER R/M

 3
11701-F002004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.2,REFER R/M

 2
11701-F002003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.2,REFER R/M

 2
11701-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.1,REFER R/M

 3
11701-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.1,REFER R/M

 3
11701-F002005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.2,REFER R/M

 2
11701-F002001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.2,REFER R/M

 2
11701-F002002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.2,REFER R/M

 2
11701-F001004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.1,REFER R/M

 3
11711 - BEARING, CRANKSHAFT
11701-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.1,REFER R/M

 3
11701-F001005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.1,REFER R/M

 3
11701-F002004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.2,REFER R/M

 2
11701-F002003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.2,REFER R/M

 2
11701-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.1,REFER R/M

 3
11701-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.1,REFER R/M

 3
11701-F002005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.2,REFER R/M

 2
11701-F002001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.2,REFER R/M

 2
11701-F002002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.2,REFER R/M

 2
11701-F001004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.1,REFER R/M

 3
11711 - BEARING, CRANKSHAFT
11701-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.1,REFER R/M

 3
11701-F001005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.1,REFER R/M

 3
11701-F002004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.2,REFER R/M

 2
11701-F002003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.2,REFER R/M

 2
11701-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.1,REFER R/M

 3
11701-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.1,REFER R/M

 3
11701-F002005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.2,REFER R/M

 2
11701-F002001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.2,REFER R/M

 2
11701-F002002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.2,REFER R/M

 2
11701-F001004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.1,REFER R/M

 3
11711 - BEARING, CRANKSHAFT
11701-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.1,REFER R/M

 3
11701-F001005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.1,REFER R/M

 3
11701-F002004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.2,REFER R/M

 2
11701-F002003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.2,REFER R/M

 2
11701-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.1,REFER R/M

 3
11701-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.1,REFER R/M

 3
11701-F002005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.2,REFER R/M

 2
11701-F002001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.2,REFER R/M

 2
11701-F002002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.2,REFER R/M

 2
11701-F001004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.1,REFER R/M

 3
11711 - BEARING, CRANKSHAFT
11701-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.1,REFER R/M

 3
11701-F001005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.1,REFER R/M

 3
11701-F002004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.2,REFER R/M

 2
11701-F002003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.2,REFER R/M

 2
11701-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495,NO.1,REFER R/M

 3
11701-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.1,REFER R/M

 3
11701-F002005

A25#..AXVA7#,AXVH7#

MARK 5,*495,NO.2,REFER R/M

 2
11701-F002001

A25#..AXVA7#,AXVH7#

MARK 1,*495,NO.2,REFER R/M

 2
11701-F002002

A25#..AXVA7#,AXVH7#

MARK 2,*495,NO.2,REFER R/M

 2
11701-F001004

A25#..AXVA7#,AXVH7#

MARK 4,*495,NO.1,REFER R/M

 3
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-F0010

A25#..AXVA7#,AXVH7#

STD,*495

 2
11791-F0040

A25#..AXVA7#,AXVH7#

STD,*495

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-F0010

A25#..AXVA7#,AXVH7#

STD,*495

 2
11791-F0040

A25#..AXVA7#,AXVH7#

STD,*495

 2
13011 - RING SET, PISTON
13011-F0040

A25#..AXVA7#,AXVH7#

STD,*495

 1
13041 - BEARING, CONNECTING ROD
13041-F001001

A25#..AXVA7#,AXVH7#

MARK 1,*495:REFER R/M

 4
13041-F001002

A25#..AXVA7#,AXVH7#

MARK 2,*495:REFER R/M

 4
13041-F001003

A25#..AXVA7#,AXVH7#

MARK 3,*495:REFER R/M

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-25040

A25AFXS..AXVH7#

STD,(J),*495

 4
13101-F0020

A25AFXS..AXVH7#

STD,(L),*495

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-21024

A25#..AXVA7#,AXVH7#

*495

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-21024

A25#..AXVA7#,AXVH7#

*495

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-29815B0

A25#..AXVA7#,AXVH7#

MARK B,*495,(J):REFER R/M

 4
13201-29815A0

A25#..AXVA7#,AXVH7#

MARK A,*495,(J):REFER R/M

 4
13201-29815C0

A25#..AXVA7#,AXVH7#

MARK C,*495,(J):REFER R/M

 4
13201-F9000A0

A25#..AXVA7#,AXVH7#

MARK A,*495,(L):REFER R/M

 4
13201-F9000C0

A25#..AXVA7#,AXVH7#

MARK C,*495,(L):REFER R/M

 4
13201-F9000B0

A25#..AXVA7#,AXVH7#

MARK B,*495,(L):REFER R/M

 4
13265 - BOLT, CONNECTING ROD
13265-F0010

A25#..AXVA7#,AXVH7#

(L),*495

 8
13265-25020

A25#..AXVA7#,AXVH7#

(J),*495

 8
13405 - FLYWHEEL SUB-ASSY
13451-25030

A25AFXS..AXVH7#

*495

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

A25AFXS..AXVH7#

L=18,OD=8,*495

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12404

A25AFXS..AXVH7#

*495

 8
13411 - CRANKSHAFT
13401-F0010

A25#..AXVA7#,AXVH7#

*495

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90250-06035

A25#..AXVA7#,AXVH7#

*495

 1
13470 - PULLEY ASSY, CRANKSHAFT
13470-25020

A25AFXS..AXVH7#

*495

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-04001

A25#..AXVA7#,AXVH7#

*495

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-A0265

A25#..AXVA7#,AXVH7#

*495

 1
13519B - SPROCKET, OIL PUMP DRIVE
13519-F0010

A25#..AXVA7#,AXVH7#

*495

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-F0010

A25#..AXVA7#,AXVH7#

*495

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-F0011

A25#..AXVA7#,AXVH7#

*495

 1
