AXVH70L-CEXGBA (2020)

Toyota Camry/Hybrid (Nap)

Production Oct 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )AXVH7#

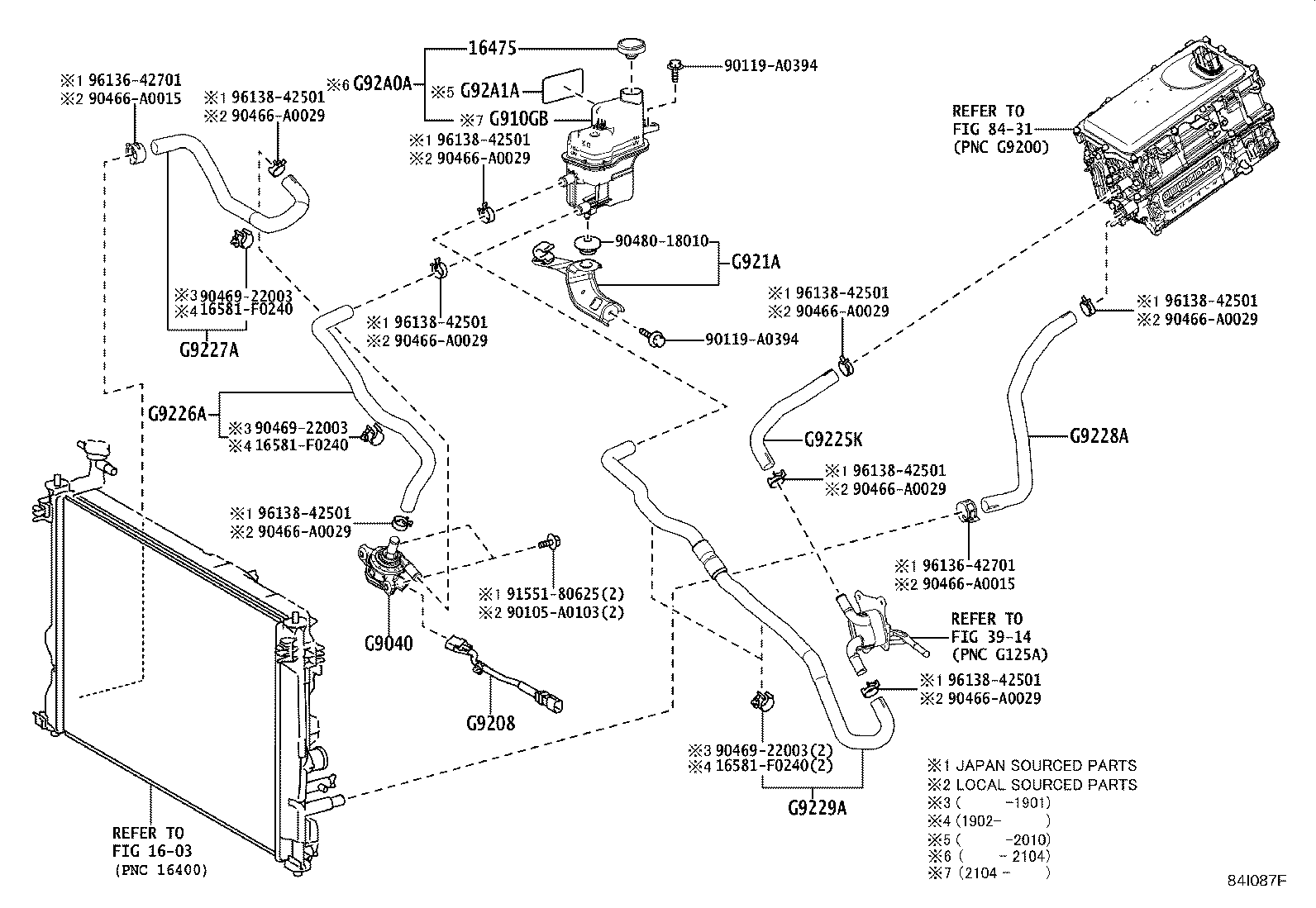

Click highlighted areas on diagram

diagram 1603 16475 16581F0240 16581F0240 16581F0240 3914 8431 90105A0103 90119A0394 90119A0394 90466A0015 90466A0015 90466A0029 90466A0029 90466A0029 90466A0029 90466A0029 90466A0029 90466A0029 90466A0029 9046922003 9046922003 9046922003 9048018010 9155180625 9613642701 9613642701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 G9040 G910GB G9208 G921A G9225K G9226A G9227A G9228A G9229A G92A0A G92A1A
Part # Description Qty Price
16475 - CAP, RESERVE TANK
16475-28140

A25AFXS..AXVH7#

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-33050

AXVH7#

 1
G910GB - TANK SUB-ASSY, INVERTER RESERVE W/O CAP
G910G-06010

AXVH7#

 1
G9208 - WIRE SUB-ASSY, INVERTER
G9208-06010

AXVH7#

 1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G91H2-06010

AXVH7#

 1
G9225K - HOSE, INVERTER COOLING, NO.1
G9225-06080

AXVH7#

 1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-06042

AXVH7#

 1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-06041

AXVH7#

 1
G9228A - HOSE, INVERTER COOLING, NO.4
G9228-06090

AXVH7#

 1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-06052

AXVH7#

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-06010

AXVH7#

 1
Common parts
16581-F0240
90105-A0103
90119-A0394
90466-A0015
90466-A0029
90469-22003
90480-18010
91551-80625
96136-42701
96138-42501
Linked diagrams
1603
3914
8431
