AXVH70L-CEXGBA (2020)
Toyota Camry/Hybrid (Nap)

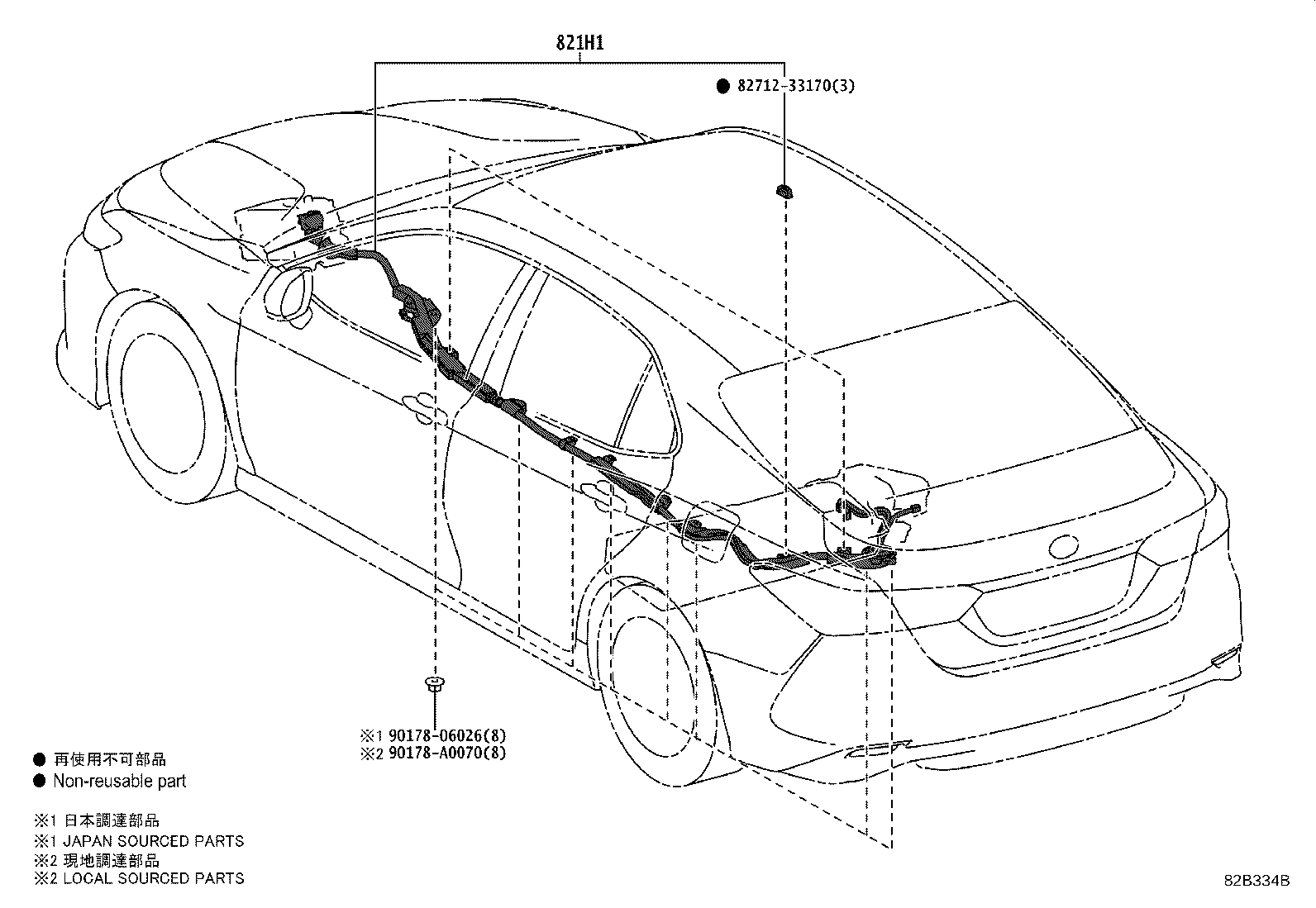

ILLUST NO. 6 OF10(1706- )AXVH7#
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-06010 |
AXVH7# |
1 | ||
| Common parts | ||||
| 82712-33170 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
ILLUST NO. 4 OF10(1706- )
DOOR & TRUNK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-06K60 |
AXVA7#,AXVH7#..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82151-06R32 |
AXVH70..LE,SE |
1 | ||
| 82151-06R42 |
AXVH70..LE CANADA SPEC |
1 | ||
| 82151-06K80 |
AXVA7#,AXVH7#..XLE,XSE DRIVER ASSIST PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82151-06U22 |
AXVH70..LE CANADA SPEC&LANE CHANGE ASSIST-WITH |
1 | ||
| 82151-06U22 |
AXVH7#..LE,SE LANE CHANGE ASSIST-WITH |
1 | ||
| 82151-06U91 |
AXVA7#,AXVH7#..XLE,XSE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-06X50 |
AXVH70..LE,SE |
1 | ||
| 82152-06X70 |
AXVH7#..LE,SE LANE CHANGE ASSIST-WITH |
1 | ||
| 82152-06X80 |
AXVA7#,AXVH7#..XLE,XSE |
1 | ||
| 82152-06X60 |
AXVH70..LE CANADA SPEC |
1 | ||
| 82152-06X90 |
AXVA7#,AXVH7#..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82152-06Y00 |
AXVA7#,AXVH7#..XLE,XSE DRIVER ASSIST PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82152-06X70 |
AXVH70..LE CANADA SPEC&LANE CHANGE ASSIST-WITH |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-06711 |
AXVA7#,AXVH7# |
1 | ||
| 82153-06A31 |
AXVA7#,AXVH7#..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-06701 |
AXVA7#,AXVH7# |
1 | ||
| 82154-06A31 |
AXVA7#,AXVH7#..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-0X190 |
AXVH7#..XLE,XSE |
1 | ||
| 82181-0X170 |
AXVH7#..LE,SE |
1 | ||
| 82181-0X180 |
AXVH7#..LE,SE LANE CHANGE ASSIST-WITH |
1 | ||
| 82181-0X210 |
AXVH7#..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-06520 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||

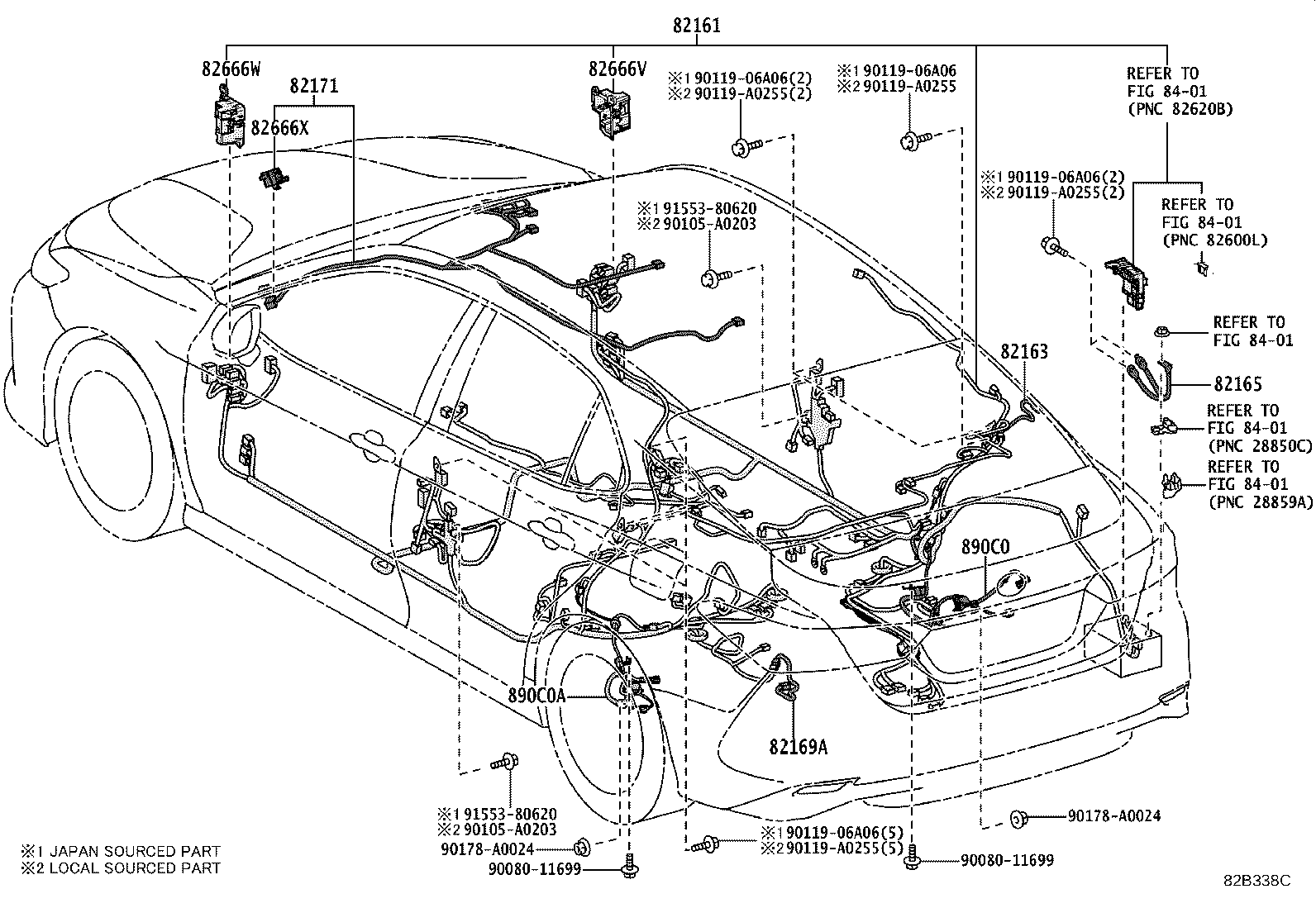

ILLUST NO. 5 OF10(1706- )AXVH7#
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82199-06F10 |
AXVH70..LE,SE |
1 | ||
| 82199-06E00 |
AXVH70..LE,SE HEATER PACKAGE |
1 | ||
| 82199-06E10 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06E10 |
AXVH70..LE CANADA SPEC&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06F00 |
AXVH70..LE PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL |
1 | ||
| 82199-06F00 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL |
1 | ||
| 82199-06F00 |
AXVH70..LE PUERTO RICO SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL |
1 | ||
| 82199-06E00 |
AXVH70..LE CANADA SPEC |
1 | ||
| 82199-06E00 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE |
1 | ||
| 82199-06E90 |
AXVH70..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82199-06F40 |
AXVH70..LE PUERTO RICO SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06F50 |
AXVH70..LE,SE LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06F60 |
AXVH70..XLE,XSE |
1 | ||
| 82199-06F40 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06E80 |
AXVH70..XLE,XSE DRIVER ASSIST PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82199-06E70 |
AXVH70..XLE DRIVER ASSIST PACKAGE&HEADLAMP-FULL LED, WITH(*AFLS)&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82199-06F00 |
AXVH70..LE CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL |
1 | ||
| 82199-06E10 |
AXVH70..LE,SE HEATER PACKAGE&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06F40 |
AXVH70..LE PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&LANE CHANGE ASSIST-WITH |
1 | ||
| 82199-06F40 |
AXVH70..LE CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&LANE CHANGE ASSIST-WITH |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-06250 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-06041 |
AXVH7# |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-06020 |
AXVH70..XLE HEADLAMP-FULL LED, WITH(*AFLS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-06T01 |
AXVA7#,AXVH7#..LE,SE MOON ROOF-WITH |
1 | ||
| 82171-06T01 |
AXVA70,AXVH70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06T01 |
AXVA70,AXVH70..LE,SE HAWAII SPEC&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06X31 |
AXVA70,AXVH70..LE,SE PUERTO RICO SPEC&CONVENIENT PACKAGE&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06X31 |
AXVH7#..XLE,XSE MOON ROOF-WITH |
1 | ||
| 82171-06X31 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&CONVENIENT PACKAGE&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06T01 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06X31 |
AXVA70,AXVH70..LE,SE HAWAII SPEC&CONVENIENT PACKAGE&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06X31 |
AXVA7#,AXVH7#..LE,SE CONVENIENT PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-0X430 |
AXVA70,AXVH70..XLE MEXICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X420 |
AXVA70,AXVH70..XLE MEXICO SPEC&MOON ROOF-WITH&AUDIO-9INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X420 |
AXVA70,AXVH70..XLE MEXICO SPEC&MOON ROOF-WITH&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X430 |
AXVA70,AXVH70..XLE MEXICO SPEC&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82171-06Z40 |
AXVA70,AXVH70..LE,SE PUERTO RICO SPEC&CONVENIENT PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06Z40 |
AXVA70,AXVH70..LE,SE HAWAII SPEC&CONVENIENT PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-06Z90 |
AXVA7#,AXVH70..LE,SE |
1 | ||
| 82171-06Z40 |
AXVA7#,AXVH7#..LE,SE CONVENIENT PACKAGE |
1 | ||
| 82171-06Z40 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&CONVENIENT PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X430 |
AXVA70,AXVH70..XLE MEXICO SPEC&AUDIO-9INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X420 |
AXVA70,AXVH70..XLE MEXICO SPEC&MOON ROOF-WITH&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82171-0X010 |
AXVA70,AXVH70..LE,SE HAWAII SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X010 |
AXVA70,AXVH70..LE,SE PUERTO RICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X010 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82171-0X440 |
AXVA7#,AXVH7#..XLE,XSE |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-33650 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-33660 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-33500 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-06011 |
AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-06021 |
AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90105-A0203 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 90178-A0024 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(1706- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0XN30 |
AXVH70..XLE MEXICO SPEC&AUDIO PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82145-0XK80 |
AXVH70..LE,SE HAWAII SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XK80 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XK70 |
AXVH70..LE,SE HEATER PACKAGE |
1 | ||
| 82145-0XK90 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&AUDIO PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-9INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XK90 |
AXVH70..LE CANADA SPEC&AUDIO PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-9INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XL00 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA &6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XK90 |
AXVH70..LE PUERTO RICO SPEC&HEATER PACKAGE&AUDIO PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-9INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XL00 |
AXVH70..LE CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XL00 |
AXVH70..LE PUERTO RICO SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XK80 |
AXVH70..LE CANADA SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XK80 |
AXVH70..LE,SE PUERTO RICO SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XK90 |
AXVH70..LE,SE LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XL00 |
AXVH70..LE,SE HAWAII SPEC&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XL00 |
AXVH70..LE,SE PUERTO RICO SPEC&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XN00 |
AXVH70..LE CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XM90 |
AXVH70..LE,SE |
1 | ||
| 82145-0XN00 |
AXVH70..LE PUERTO RICO SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN10 |
AXVH70..XLE,XSE HAWAII SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN00 |
AXVH70..LE,SE PUERTO RICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN00 |
AXVH70..LE,SE HAWAII SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN50 |
AXVH7#..XLE,XSE AUDIO PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82145-0XN10 |
AXVH70..XLE MEXICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN60 |
AXVH7#..XLE,XSE DRIVER ASSIST PACKAGE&AUDIO PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82145-0XP00 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&AUDIO PACKAGE&CONVENIENT PACKAGE&AUDIO-9INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XP10 |
AXVH70..LE,SE PUERTO RICO SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XN10 |
AXVH70..XLE,XSE PUERTO RICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XN00 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL&AUDIO-7INCH *DA &6SPEAKER |
1 | ||
| 82145-0XP10 |
AXVH70..LE CANADA SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XN20 |
AXVH70..XLE,XSE |
1 | ||
| 82145-0XN10 |
AXVH70..XLE MEXICO SPEC&AUDIO PACKAGE&AUDIO-9INCH *DA & 6SPEAKER |
1 | ||
| 82145-0XP00 |
AXVH70..LE,SE HEATER PACKAGE&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XP00 |
AXVH70..LE CANADA SPEC&AUDIO PACKAGE&CONVENIENT PACKAGE&AUDIO-9INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XP10 |
AXVH70..LE CANADA SPEC&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82145-0XP10 |
AXVH70..LE,SE HAWAII SPEC&HEATER PACKAGE&AUDIO-7INCH *DA & 6SPEAKER&LANE CHANGE ASSIST-WITH |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-47032 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-06450 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

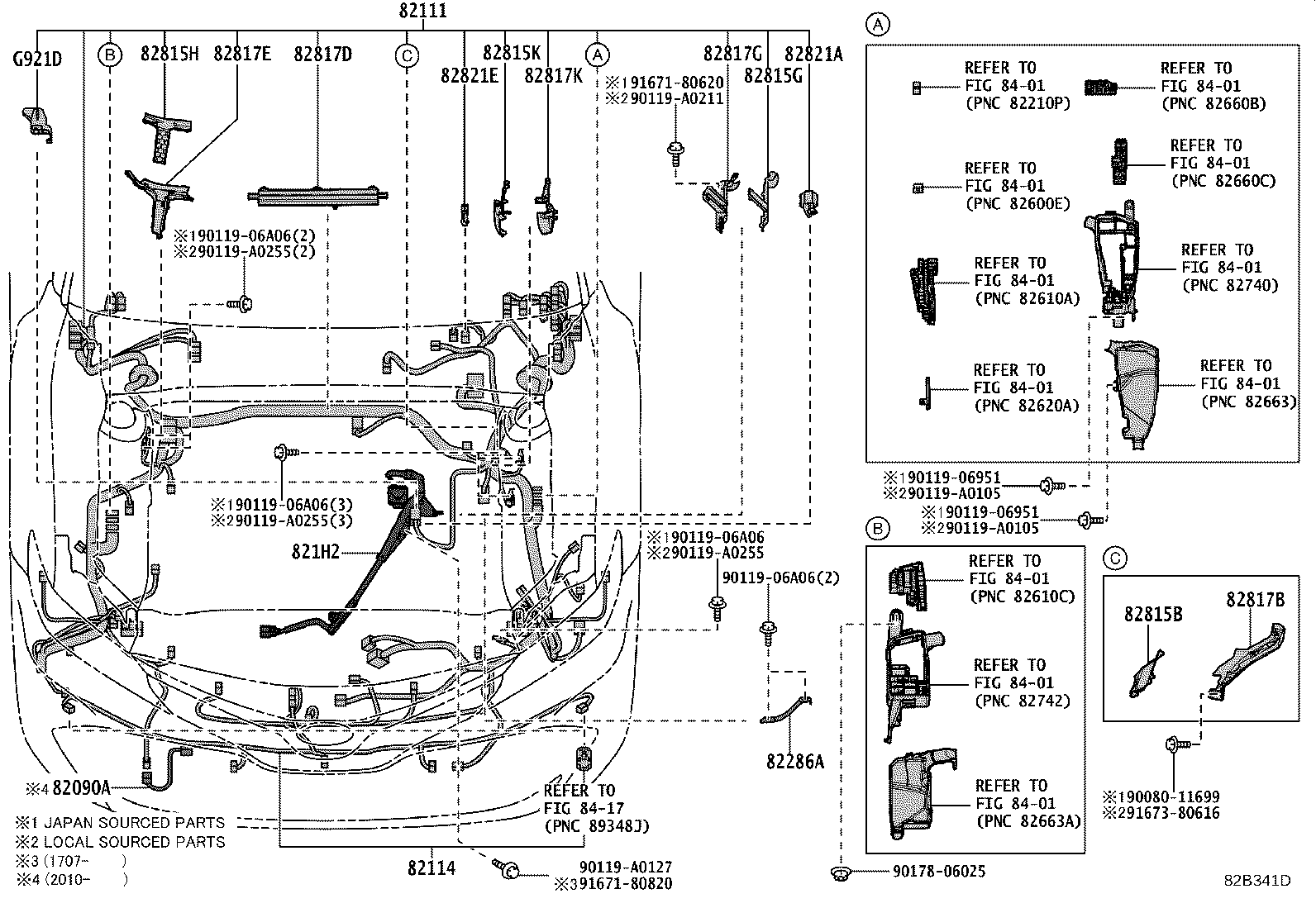

ILLUST NO. 1 OF10(1706- )AXVH7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-06030 |
AXVH7# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-06201 |
AXVH70..XLE MEXICO SPEC&AUDIO-7INCH *DA & 6SPEAKER |
1 | ||
| 82116-06210 |
AXVH70..XLE DRIVER ASSIST PACKAGE&HEADLAMP-FULL LED, WITH(*AFLS)&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82116-06140 |
AXVH7#..LE,SE |
1 | ||
| 82116-06171 |
AXVH7#..XLE,XSE DRIVER ASSIST PACKAGE&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82116-06221 |
AXVH7#..XLE,XSE |
1 | ||
| 82116-06231 |
AXVH70..XLE MEXICO SPEC&AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82116-06201 |
AXVH70..XLE MEXICO SPEC&AUDIO-9INCH *DA & 6SPEAKER |
1 | ||
| 82116-06251 |
AXVH7#..XLE,XSE AUDIO-9INCH *DA & JBL & 9SPEAKER |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-06350 |
AXVA7#,AXVH7#,GSV70..XLE DRIVER ASSIST PACKAGE |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-06010 |
AXVH7# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-33020 |
AXVH7# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E30 |
AXVH7# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33E70 |
AXVH7# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33M60 |
AXVH7# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33U80 |
AXVH7# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y20 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33Y30 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33V00 |
AXVH7# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-3T210 |
AXVH7# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33470 |
AXVH7# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33620 |
AXVH7# |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
AXVH7# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90119-06951 | ||||
| 90119-06A06 | ||||
| 90119-A0105 | ||||
| 90119-A0127 | ||||
| 90119-A0211 | ||||
| 90119-A0255 | ||||
| 90178-06025 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(1706- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-06700 |
AXVA7#,AXVH7#,GSV70..XLE,XSE |
1 | ||
| 82191-06860 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 82191-06680 |
AXVA7#,AXVH70..LE,SE |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-06700 |
AXVA7#,AXVH7#,GSV70..XLE,XSE |
1 | ||
| 82191-06860 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 82191-06680 |
AXVA7#,AXVH70..LE,SE |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-06690 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&HEATER PACKAGE |
1 | ||
| 82191-06690 |
AXVA7#,AXVH70..LE,SE HEATER PACKAGE |
1 | ||
| 82191-06690 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-06610 |
AXVA7#,AXVH70..LE,SE |
1 | ||
| 82192-06630 |
AXVA7#,AXVH70..LE,SE HEATER PACKAGE |
1 | ||
| 82192-06630 |
AXVH71;AXVA7#,AXVH70,GSV70..XLE,XSE |
1 | ||
| 82192-06630 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC |
1 | ||
| 82192-06630 |
AXVH70..LE;AXVA7#..LE,SE CANADA SPEC&HEATER PACKAGE |
1 | ||
| 82192-06770 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 82191-06710 |
AXVA7#,AXVH7#,GSV70..XLE,XSE |
1 | ||
| 82191-06A50 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 82192-06880 |
AXVA7#,AXVH7#,GSV70..XLE,XSE DRIVER ASSIST PACKAGE |
1 | ||
| 82192-06620 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
ILLUST NO. 2 OF10(1706- )AXVH7#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-06J70 |
AXVH7# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-33270 |
AXVH7# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-33180 |
AXVA7#,AXVH7# P/N LABEL=8212533180 |
1 | ||
| 82125-06060 |
AXVA7#,AXVH7# P/N LABEL=8212506060 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33050 |
AXVA7#,AXVH7# P/N LABEL=8212633050 |
1 | ||
| 82126-06010 |
AXVA7#,AXVH7# P/N LABEL=8212606010 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-33141 |
AXVH7# P/N LABEL=8221933141 |
1 | ||
| 82219-06300 |
AXVH7# P/N LABEL=8221906300 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-33720 |
AXVA7#,AXVH7# |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33C80 |
AXVH7# |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33M20 |
AXVH7# NO.2 |
1 | ||
| 82815-33M70 |
AXVH7# NO.1 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33M20 |
AXVH7# NO.2 |
1 | ||
| 82815-33M70 |
AXVH7# NO.1 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33M80 |
AXVH7# |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-33M90 |
AXVH7# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-3T220 |
AXVH7# |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-3T150 |
AXVH7# |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-3T230 |
AXVH7# |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-3T240 |
AXVH7# |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33X20 |
AXVH7# |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33Z40 |
AXVA7#,AXVH7# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
AXVA7#,AXVH7#,GSV70 |
1 | ||
| Common parts | ||||
| 82711-33660 | ||||
| 90105-A0064 | ||||
| 90119-06A29 | ||||
| 90119-A0127 | ||||
| 90119-A0160 | ||||
| 90119-A0211 | ||||
| 90119-A0296 | ||||
| 90119-A0477 | ||||
| 90178-A0023 | ||||
| 91551-80616 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF10(1706- )AXVH7#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33550 | ||||
| 82711-AA020 | ||||
| 82715-06R30 | ||||
| 82715-06R70 | ||||
| 82715-06R90 | ||||
| 82715-06S10 | ||||
| 82715-06S40 | ||||
| 82715-06T50 | ||||
| 82715-06T70 | ||||
| 82715-06T80 | ||||
| 82715-06U80 | ||||
| 82715-06V00 | ||||
| 82715-06V30 | ||||
| 82715-0XF90 | ||||
| 82715-33P80 | ||||
| 82715-33P90 | ||||
| 82715-33V00 | ||||
| 90080-17244 | ||||
| 90119-06A12 | ||||
| 90119-A0127 | ||||
| 90119-A0160 | ||||
| 90119-A0416 | ||||
| 91671-80616 | ||||
ILLUST NO.10 OF10(1706- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10794 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A92 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D00 | ||||
ILLUST NO.10 OF10(1706- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33470 | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
| 90980-WA063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
