AXVH70L-CEXGBA (2020)

Toyota Camry/Hybrid (Nap)

Production Oct 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )AXVH7# ; (1706- )AXVA70,GSV70..XLE,XSE ; (2003- )AXVA75

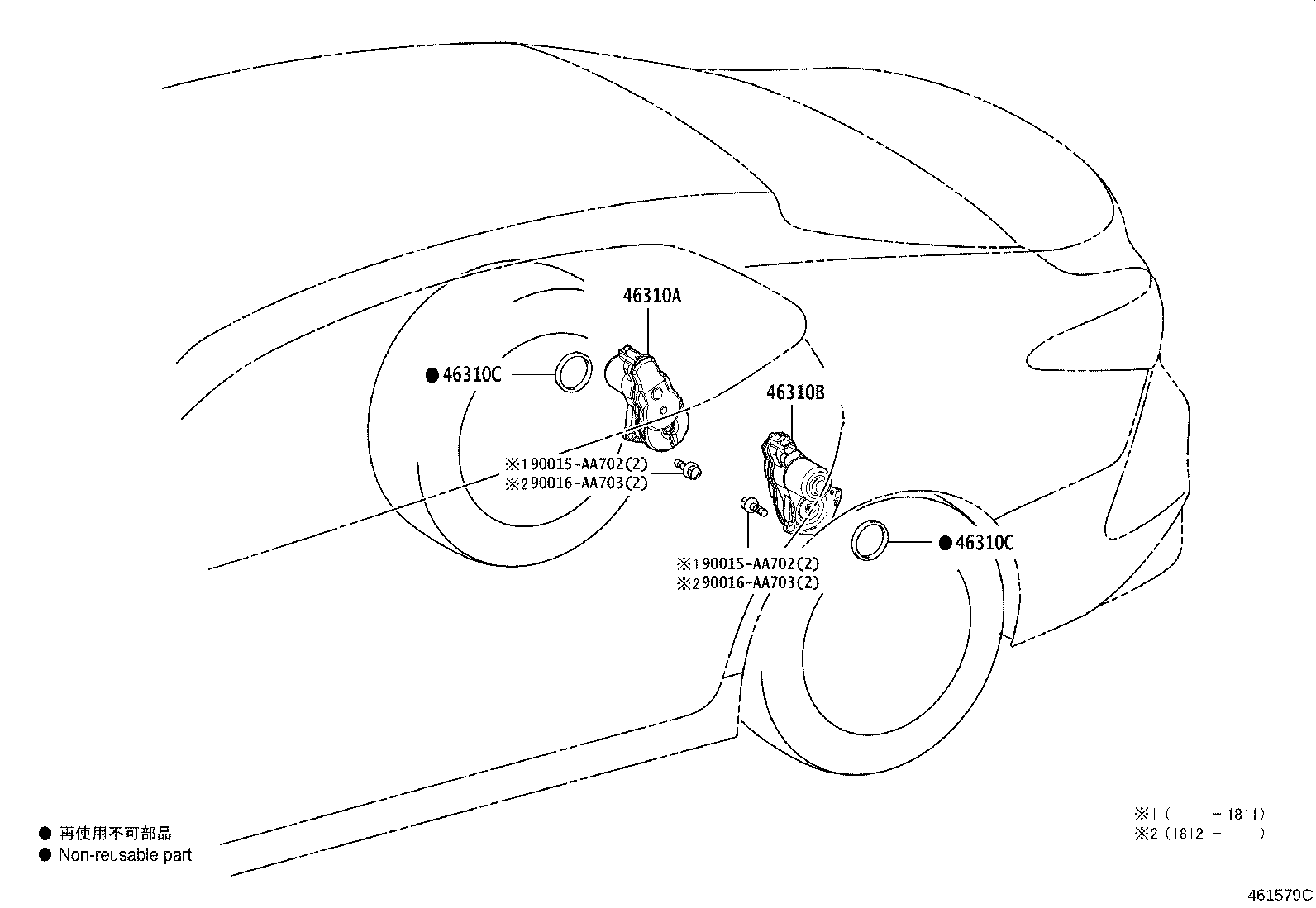

Click highlighted areas on diagram

diagram 46310A 46310B 46310C 46310C 90015AA702 90015AA702 90016AA703 90016AA703
Part # Description Qty Price
46310A - ACTUATOR ASSY, PARKING BRAKE, RH
46310-33010

AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE

 1
46310B - ACTUATOR ASSY, PARKING BRAKE, LH
46310-33010

AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE

 1
46310C - SEAL(FOR PARKING BRAKE ACTUATOR)
90015-AH005

AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE

 2
46310C - SEAL(FOR PARKING BRAKE ACTUATOR)
90015-AH005

AXVA75,AXVH7#;AXVA70,GSV70..XLE,XSE

 2
Common parts
90015-AA702
90016-AA703
