AXVA70L-CEZPBA (2017)
Toyota Camry/Hybrid (Nap)
(1706-2010)AXVA70..LE,N,SE ; (2010- )GSV70..XSE ; (2010- )AXVA70..LE,SE

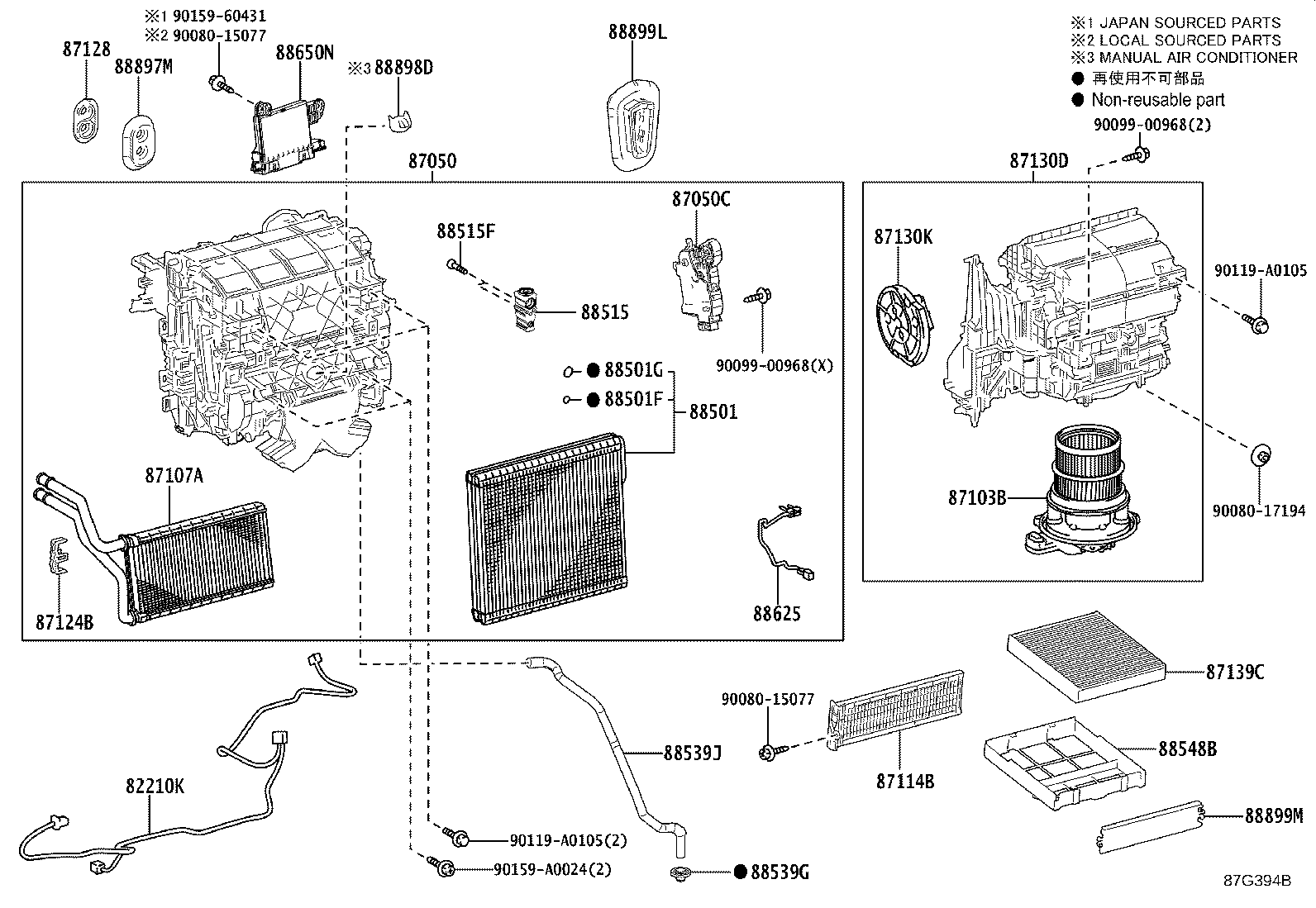

W/O COOLER REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-06200 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06190 |
AXVA70..LE,N,SE |
1 | ||
| 82212-0R040 |
AXVA70..LE,N,SE |
1 | ||
| 82212-06200 |
AXVA70,GSV70..XLE,XSE |
1 | ||
| 82212-06200 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06200 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06200 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-06880 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06860 |
AXVA70..LE,N,SE MEXICO SPEC |
1 | ||
| 87050-06870 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06880 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06870 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06870 |
AXVA70,GSV70..XLE,XSE |
1 | ||
| 87050-06850 |
AXVA70..LE,N,SE |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0E100 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 87106-0E100 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-47180 |
AXVA70..LE,N,SE |
1 | ||
| 87106-06420 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E100 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06360 |
AXVA70..LE,N,SE |
1 | ||
| 87106-06420 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E090 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-06100 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-06090 |
AXVA70,GSV70;AXVH70..SE,XLE |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-07030 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-06410 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0E130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0E040 |
AXVA70,AXVH7#,GSV70 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06420 |
AXVA70..LE,N,SE,XLE MEXICO SPEC |
1 | ||
| 88501-06410 |
AXVA70,GSV70 |
1 | ||
| 88501-06420 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88501-06420 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90069-08007 |
AXVA70,GSV70 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90069-08009 |
AXVA70,GSV70 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0E130 |
AXVA70..LE,N,SE,XLE MEXICO SPEC |
1 | ||
| 88515-0E130 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88515-06160 |
AXVA70,GSV70 |
1 | ||
| 88515-0E130 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXVA70,AXVH7#,GSV70 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-06020 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-06130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-0E030 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E050 |
AXVA70,GSV70 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-06B21 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 88650-06B20 |
AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88650-06B00 |
AXVA70..LE,N,SE |
1 | ||
| 88650-06B01 |
AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B20 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 88650-06B02 |
AXVA70,AXVH70..LE,N,SE |
1 | ||
| 88650-06B00 |
AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B21 |
AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88650-06B02 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B01 |
AXVA70..LE,N,SE |
1 | ||
| 88650-06E60 |
AXVH71;AXVA70,AXVH70..XLE,XSE |
1 | ||
| 88650-06E60 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-06010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06280 |
AXVA70,GSV70 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06310 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88899-0E010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-17194 | ||||
| 90099-00968 | ||||
| 90119-A0105 | ||||
| 90159-60431 | ||||
| 90159-A0024 | ||||
(1706-2010)AXVA70,GSV70..LE,SE,XLE,XSE ; (2010-)AXVA70,GSV70

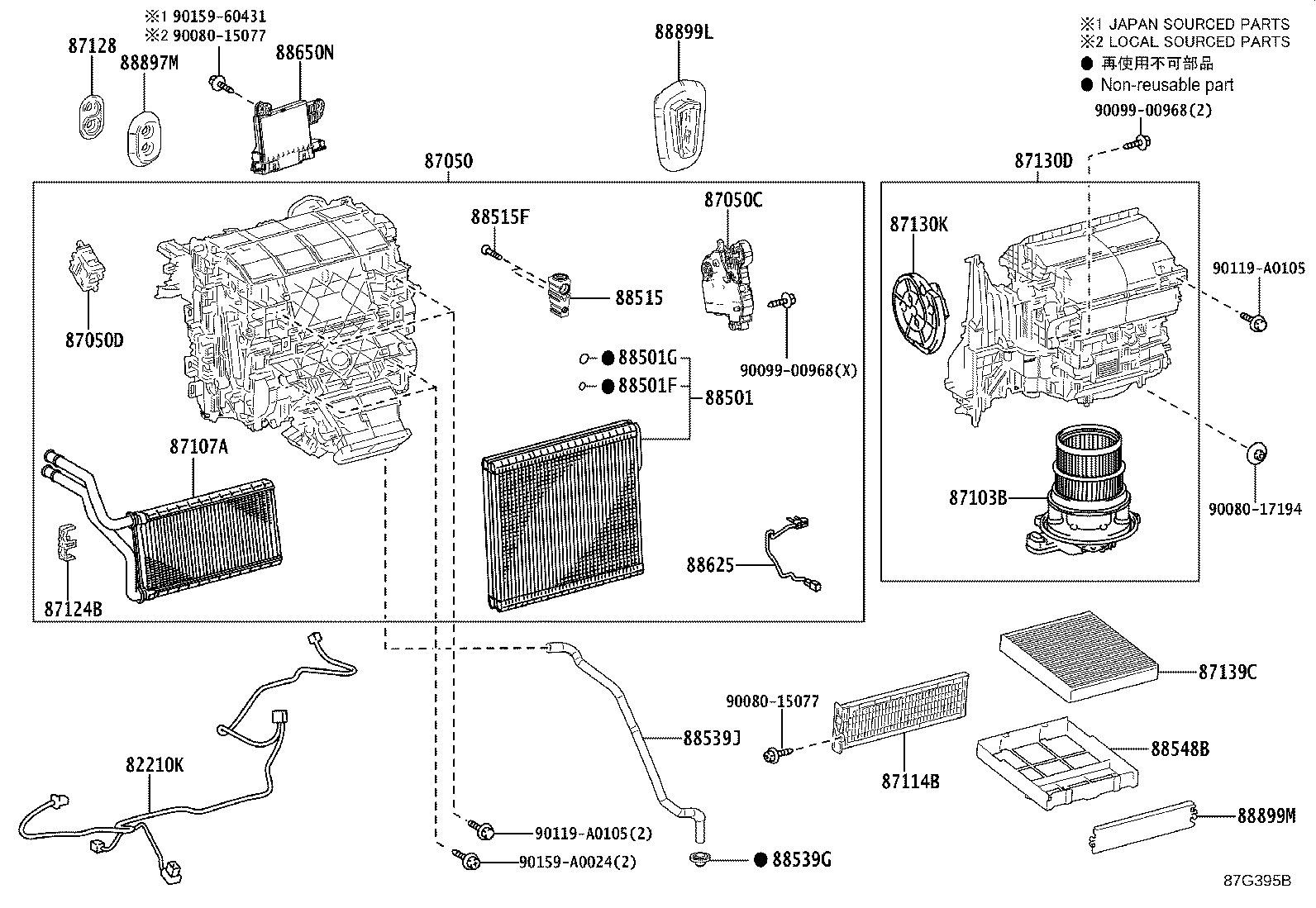

W/COOLER REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-06200 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06190 |
AXVA70..LE,N,SE |
1 | ||
| 82212-0R040 |
AXVA70..LE,N,SE |
1 | ||
| 82212-06200 |
AXVA70,GSV70..XLE,XSE |
1 | ||
| 82212-06200 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06200 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 82212-06200 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-06880 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06860 |
AXVA70..LE,N,SE MEXICO SPEC |
1 | ||
| 87050-06870 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06880 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06870 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87050-06870 |
AXVA70,GSV70..XLE,XSE |
1 | ||
| 87050-06850 |
AXVA70..LE,N,SE |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0E100 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 87106-0E100 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-47180 |
AXVA70..LE,N,SE |
1 | ||
| 87106-06420 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E100 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06420 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-06360 |
AXVA70..LE,N,SE |
1 | ||
| 87106-06420 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0E120 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E120 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E120 |
AXVA70..SE CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E120 |
AXVA70..LE,SE AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 87106-0E120 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E090 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-06100 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-06090 |
AXVA70,GSV70;AXVH70..SE,XLE |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-07030 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-06410 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0E130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0E040 |
AXVA70,AXVH7#,GSV70 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06420 |
AXVA70..LE,N,SE,XLE MEXICO SPEC |
1 | ||
| 88501-06410 |
AXVA70,GSV70 |
1 | ||
| 88501-06420 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88501-06420 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90069-08007 |
AXVA70,GSV70 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90069-08009 |
AXVA70,GSV70 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0E130 |
AXVA70..LE,N,SE,XLE MEXICO SPEC |
1 | ||
| 88515-0E130 |
AXVA70..SE MEXICO SPEC&CONVENIENT PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88515-06160 |
AXVA70,GSV70 |
1 | ||
| 88515-0E130 |
AXVA70..LE,SE MEXICO SPEC&AUDIO PACKAGE&AUDIO-8INCH DISPLAY & CD & 6SPEAKER |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXVA70,AXVH7#,GSV70 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-06020 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-06130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-0E030 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E050 |
AXVA70,GSV70 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-06B21 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 88650-06B20 |
AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88650-06B00 |
AXVA70..LE,N,SE |
1 | ||
| 88650-06B01 |
AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B20 |
AXVH7#;AXVA70,GSV70..XLE,XSE |
1 | ||
| 88650-06B02 |
AXVA70,AXVH70..LE,N,SE |
1 | ||
| 88650-06B00 |
AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B21 |
AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88650-06B02 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&WITH(*DRP:MANUAL SEAT) |
1 | ||
| 88650-06B01 |
AXVA70..LE,N,SE |
1 | ||
| 88650-06E60 |
AXVH71;AXVA70,AXVH70..XLE,XSE |
1 | ||
| 88650-06E60 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-06010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06280 |
AXVA70,GSV70 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06310 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 88899-0E010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90080-17194 | ||||
| 90099-00968 | ||||
| 90119-A0105 | ||||
| 90159-60431 | ||||
| 90159-A0024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
