AXVA70L-CEZPBA (2017)

Toyota Camry/Hybrid (Nap)

Production Jun 2017 - Oct 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1706-2010)AXVA70,AXVH7#,GSV70 ; (2003-2010)AXVA75

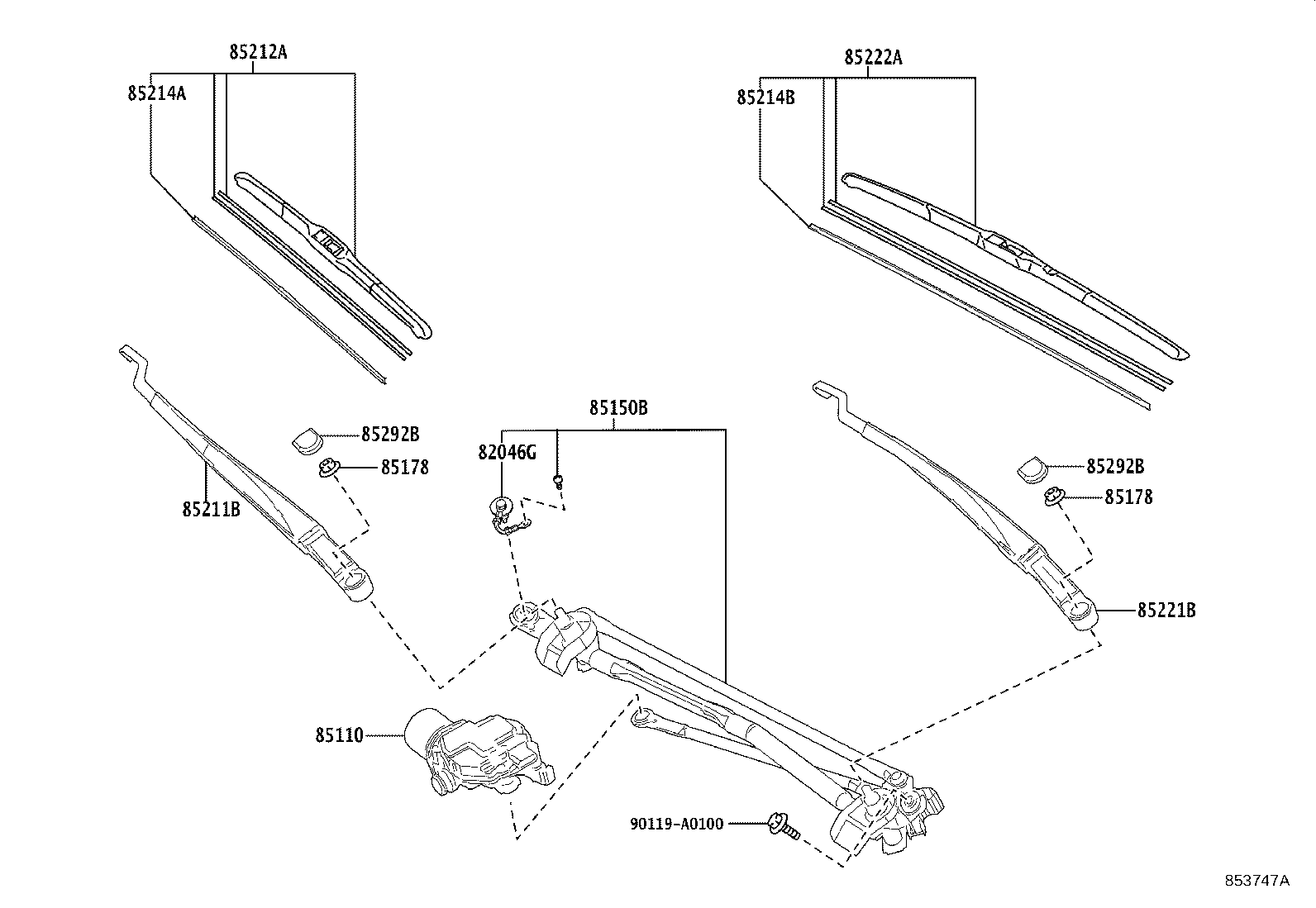

Click highlighted areas on diagram

diagram 82046G 85110 85150B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119A0100
Part # Description Qty Price
82046G - WIRE SUB-ASSY, BODY GROUND
82046-06080

AXVA70,AXVH7#,GSV70

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-33430

AXVA70,AXVH7#,GSV70

 1
85110-33432

AXVA70,AXVH7#,GSV70

 1
85150B - LINK ASSY, WIPER
85150-06200

AXVA70,AXVH7#,GSV70

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

AXVA70,AXVH7#,GSV70

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-A0017

AXVA70,AXVH7#,GSV70

 2
85211B - ARM, FRONT WIPER, RH
85211-06250

AXVA70,AXVH7#,GSV70

 1
85212A - BLADE, FR WIPER, RH
85212-06250

AXVA70,AXVH7#,GSV70

 1
85214A - RUBBER, WIPER, RH
85214-0E140

AXVA70,AXVH7#,GSV70

 1
85214B - RUBBER, WIPER, LH
85214-0E151

AXVA70,AXVH7#,GSV70

 1
85221B - ARM, FRONT WIPER, LH
85221-06250

AXVA70,AXVH7#,GSV70

 1
85222A - BLADE, FR WIPER, LH
85222-06250

AXVA70,AXVH7#,GSV70

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

AXVA70,AXVH7#,GSV70

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

AXVA70,AXVH7#,GSV70

 2
Common parts
90119-A0100
