AXVA70L-CEZNBA (2017)
Toyota Camry/Hybrid (Nap)

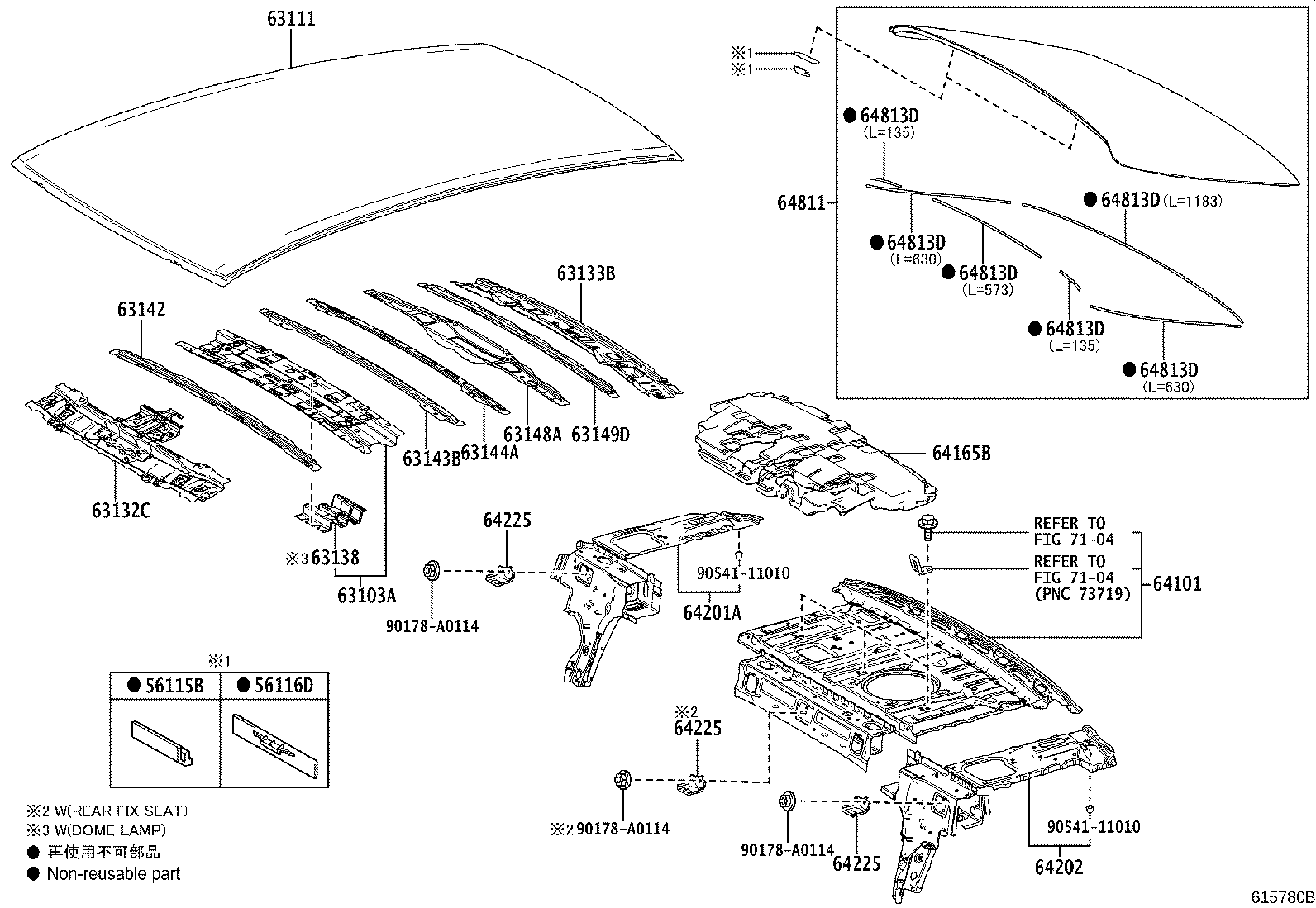

ILLUST NO. 1 OF 2(1706- )GSV70..XSE ; (1706- )AXVA7#,AXVH7#
ROOF PANEL(NORMAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-06130 |
AXVA70,AXVH7#..LE,N,SE |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-06130 |
AXVA70,AXVH7#..LE,N,SE |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-06610 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63111-06600 |
AXVA70,AXVH7#..LE,SE,XLE,XSE AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63111-06650 |
AXVA70,AXVH7# |
1 | ||
| 63111-06610 |
AXVH70;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63111-06600 |
AXVA70,AXVH70 |
1 | ||
| 63111-06660 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH |
1 | ||
| 63111-06650 |
AXVA70..LE,N,SE,XLE MEXICO SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 HAWAII SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70;AXVH70..LE CANADA SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 PUERTO RICO SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-06917 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63102-06916 |
AXVA70,AXVH7# |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-06160 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-06130 |
AXVA70,AXVH7#..LE,N,SE |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63143-06120 |
AXVA70,AXVH7# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63128-06010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-06230 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-06130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-06080 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-06430 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-06290 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-06180 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64201-06180 |
AXVA70..N |
1 | ||
| 64201-06230 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-06180 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64202-06180 |
AXVA70..N |
1 | ||
| 64202-06230 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-06010 |
AXVA70..N |
3 | ||
| 64225-06010 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-06010 |
AXVA70..N |
3 | ||
| 64225-06010 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-06010 |
AXVA70..N |
3 | ||
| 64225-06010 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-06230 |
AXVA70..N |
1 | ||
| 64801-06220 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64801-06221 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64801-06231 |
AXVA70..N |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| Common parts | ||||
| 90178-A0114 | ||||
| 90541-11010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1706- )LE,SE,XLE,XSE
SLIDING ROOF(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-06130 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-06110 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-0E040 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0E070 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-0E070 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-06050 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,FRONT |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,FRONT |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,REAR |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,REAR |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,REAR |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-08050 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH,REAR |
6 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-06090 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63247-06090 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-06170 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-06170 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-06050 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-06110 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-06030 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-06030 |
AXVA70,AXVH7#..LE,SE,XLE MOON ROOF-WITH |
2 | ||
| Common parts | ||||
| 63236-33030 | ||||
| 90080-11605 | ||||
| 90080-15084 | ||||
| 90080-17244 | ||||
| 90105-A0064 | ||||
| 90466-A0008 | ||||
| 91552-11020 | ||||
| Linked diagrams | ||||
| 6402 | ||||
ILLUST NO. 1 OF 2(1706- )LE,SE,XLE,XSE
ROOF PANEL(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63107-06010 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63107-06010 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH |
1 | ||
| 63107-06011 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63107-06011 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63107-06011 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63107-06011 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63107-06011 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63107-06011 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63107-06011 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-06610 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63111-06600 |
AXVA70,AXVH7#..LE,SE,XLE,XSE AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63111-06650 |
AXVA70,AXVH7# |
1 | ||
| 63111-06610 |
AXVH70;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63111-06600 |
AXVA70,AXVH70 |
1 | ||
| 63111-06660 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH |
1 | ||
| 63111-06650 |
AXVA70..LE,N,SE,XLE MEXICO SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 HAWAII SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70;AXVH70..LE CANADA SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06660 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 PUERTO RICO SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63111-06650 |
AXVA70,AXVH70 USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-06917 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63102-06916 |
AXVA70,AXVH7# |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63102-06917 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-06160 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-06140 |
AXVA70..LE,SE,XLE MEXICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63142-06140 |
AXVH71;AXVA70,AXVH70..LE,SE MOON ROOF-WITH&AUDIO-8INCH DISPLAY & CD & 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 63142-06140 |
AXVH7#;AXVA70..LE,SE MOON ROOF-WITH |
1 | ||
| 63142-06140 |
AXVH70;AXVA70..LE,SE USA POSSESSION SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63142-06140 |
AXVH70;AXVA70..LE,SE HAWAII SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63142-06140 |
AXVH70;AXVA70..LE,SE PUERTO RICO SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63142-06140 |
AXVH70..LE;AXVA70..LE,SE CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63128-06010 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-06230 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-06130 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-06080 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-06430 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-06290 |
AXVA70,AXVH7#,GSV70 |
1 | ||
| 64201A - EXTENSION SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64201-06180 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64201-06180 |
AXVA70..N |
1 | ||
| 64201-06230 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64202 - EXTENSION SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64202-06180 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64202-06180 |
AXVA70..N |
1 | ||
| 64202-06230 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-06010 |
AXVA70..N |
3 | ||
| 64225-06010 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
2 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-06010 |
AXVA70..N |
3 | ||
| 64225-06010 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-06230 |
AXVA70..N |
1 | ||
| 64801-06220 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64801-06221 |
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE |
1 | ||
| 64801-06231 |
AXVA70..N |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-06220 |
AXVA70,AXVH7#,GSV70 L=630 |
2 | ||
| 64813-06230 |
AXVA70,AXVH7#,GSV70 L=573 |
1 | ||
| 64813-06180 |
AXVA70,AXVH7#,GSV70 L=1183 |
1 | ||
| 64813-06440 |
AXVA70,AXVH7#,GSV70 L=135 |
2 | ||
| Common parts | ||||
| 90178-A0114 | ||||
| 90541-11010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
