AXVA70L-CEZEBA (2017)
Toyota Camry/Hybrid (Nap)

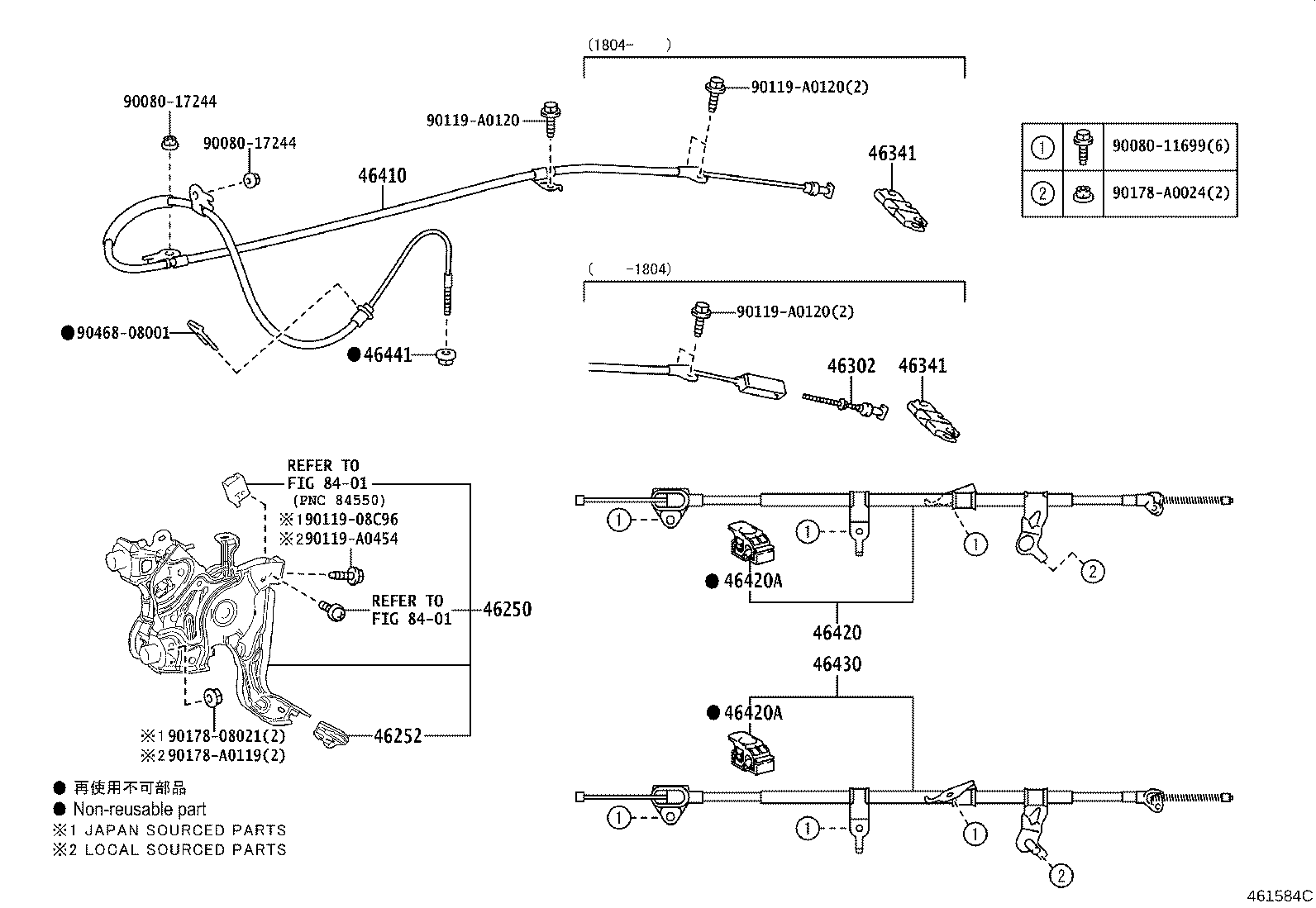

ILLUST NO. 1 OF 2(1706- )AXVA70..LE,N,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46250 - PEDAL ASSY, PARKING BRAKE W/O CABLE | ||||
| 46250-06010 |
AXVA70..LE,N,SE |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-06030 |
AXVA70..LE,N,SE |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-06010 |
AXVA70..LE,N,SE |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-33030 |
AXVA70..LE,N,SE |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-33030 |
AXVA70..LE,N,SE |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-06171 |
AXVA70..LE,N,SE |
1 | ||
| 46410-06170 |
AXVA70..LE,N,SE |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-06230 |
AXVA70..LE,N,SE |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-06010 |
AXVA70..LE,N,SE LH |
1 | ||
| 46402-02020 |
AXVA70..LE,N,SE RH |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-06010 |
AXVA70..LE,N,SE LH |
1 | ||
| 46402-02020 |
AXVA70..LE,N,SE RH |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06190 |
AXVA70..LE,N,SE |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90177-06003 |
AXVA70..LE,N,SE |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-08C96 | ||||
| 90119-A0120 | ||||
| 90119-A0454 | ||||
| 90178-08021 | ||||
| 90178-A0024 | ||||
| 90178-A0119 | ||||
| 90468-08001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

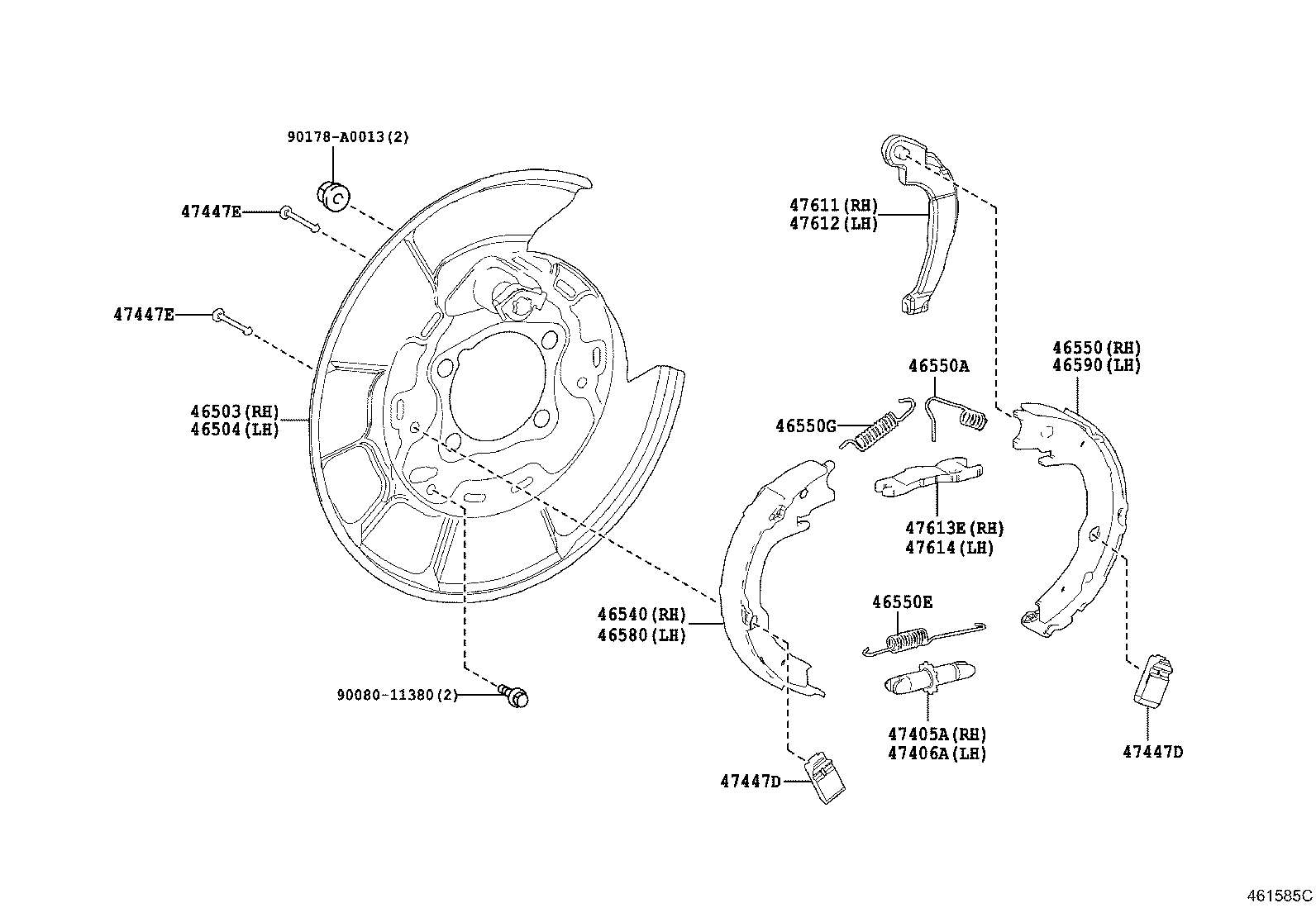

ILLUST NO. 2 OF 2(1706- )AXVA70..LE,N,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-06110 |
AXVA70..LE,N,SE |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-06110 |
AXVA70..LE,N,SE |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-0R030 |
AXVA70..LE,N,SE |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-0R030 |
AXVA70..LE,N,SE |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY124 |
AXVA70..LE,N,SE RH |
1 | ||
| 90016-AY126 |
AXVA70..LE,N,SE LH |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY125 |
AXVA70..LE,N,SE |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY123 |
AXVA70..LE,N,SE |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-0R030 |
AXVA70..LE,N,SE |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-0R030 |
AXVA70..LE,N,SE |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 46605-0R010 |
AXVA70..LE,N,SE |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 46606-0R010 |
AXVA70..LE,N,SE |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-02090 |
AXVA70..LE,N,SE |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-02090 |
AXVA70..LE,N,SE |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
AXVA70..LE,N,SE |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
AXVA70..LE,N,SE |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46601-42040 |
AXVA70..LE,N,SE |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46602-42040 |
AXVA70..LE,N,SE |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-02090 |
AXVA70..LE,N,SE |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46622-02090 |
AXVA70..LE,N,SE |
1 | ||
| Common parts | ||||
| 90080-11380 | ||||
| 90178-A0013 | ||||
