GSV50L-CETSKA (2011)
Toyota Camry/Hybrid
(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-06060 |
ASV50,AVV50,GSV50 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-06170C1 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71017-06170C1 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-06120C1 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
1 | ||
| 71018-06120C1 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71067-06030 |
ASV50,AVV50,GSV50 |
1 | ||
| 71068 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71068-06030 |
ASV50,GSV50 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-06E90B0 |
ASV50,GSV50..SE BLACK,TRIM1# |
1 | ||
| 71075-06F00C0 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71075-06F00B1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-06B10C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71075-06A90B2 |
ASV50,GSV50..SE BLACK,TRIM1# |
1 | ||
| 71075-06E90C0 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71075-06B11B3 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71075-06A90C2 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71075-06B10B3 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71075-06A91C2 |
ASV50,AVV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71075-06A91B2 |
ASV50,AVV50,GSV50..SE GRAY/BLACK,TRIM1# |
1 | ||
| 71075-06B12C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71075-06B11C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71075-06B12B3 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-06010C0 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
2 | ||
| 71769-06010C0 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
2 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-06K40C1 |
ASV50,GSV50..SE BLACK,TRIM1# |
1 | ||
| 71077-06K50C0 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71077-06K40C0 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71077-06K50C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71077-06C70C8 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71077-06C7120 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71077-06C5021 |
ASV50,GSV50..SE GRAY/BLACK,TRIM1# |
1 | ||
| 71077-06C7121 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71077-06C70C9 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71077-06C5020 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71077-06C5120 |
ASV50,AVV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71077-06C7220 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71077-06C5121 |
ASV50,AVV50,GSV50..SE GRAY/BLACK,TRIM1# |
1 | ||
| 71077-06C7221 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-06A90C1 |
ASV50,GSV50..SE BLACK,TRIM1# |
1 | ||
| 71078-06B00C0 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71078-06A90C0 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71078-06B00C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-06630C9 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 71078-0661020 |
ASV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71078-0661021 |
ASV50,GSV50..SE BLACK,TRIM1# |
1 | ||
| 71078-06630C8 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71078-0663120 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71078-0661120 |
ASV50,AVV50,GSV50..SE BLACK,TRIM2# |
1 | ||
| 71078-0661121 |
ASV50,AVV50,GSV50..SE GRAY/BLACK,TRIM1# |
1 | ||
| 71078-0663221 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71078-0663220 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71078-0663121 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY/BLACK,TRIM1# |
1 | ||
| 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-06250C0 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71088-06240C0 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71088-06140C3 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71088-06210C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71088-06141C3 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71088-06211C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-06250C0 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71089-06220C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71089-06150C3 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71089-06221C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71089-06260C0 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71089-06151C3 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-06060 |
ASV50,AVV50,GSV50 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-06220 |
ASV50,AVV50,GSV50 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-06340 |
ASV50,AVV50,GSV50 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-06150 |
ASV50,AVV50,GSV50 |
1 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-06051 |
ASV50,AVV50,GSV50 |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-06061 |
ASV50,GSV50 |
1 | ||
| 71767 - BRACKET, REAR SIDE SEAT BACK SET, REAR RH | ||||
| 71767-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 71768 - BRACKET, REAR SIDE SEAT BACK SET, REAR LH | ||||
| 71768-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-06010C0 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
8 | ||
| 71769-06010C0 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
8 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-06010C0 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
8 | ||
| 71769-06010C0 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
8 | ||
| 71885D - CARPET, REAR SEAT BACK, RH | ||||
| 71885-06050C1 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71885-06050C1 |
ASV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
1 | ||
| 71886 - CARPET, REAR SEAT BACK, LH | ||||
| 71886-06040C1 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 71886-06040C1 |
ASV50,AVV50,GSV50..LE,N,XLE BLACK,TRIM0#,1# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-06040 |
ASV50,AVV50,GSV50 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-06040 |
ASV50,GSV50 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-06040 |
ASV50,GSV50 |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-0T020 |
ASV50,AVV50,GSV50 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ASV50,AVV50,GSV50 |
2 | ||
| 72693-06030 |
ASV50,AVV50,GSV50 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-06740C2 |
ASV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 72830-06750C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 72830-06741C2 |
ASV50,AVV50,GSV50..SE BLACK,TRIM1#,2# |
1 | ||
| 72830-06751C1 |
ASV50,GSV50..SE *DRP:WITH(POWER SEAT) & LEATHER PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 73930A - AIR BAG ASSY, REAR SEAT, RH | ||||
| 73930-06040 |
ASV50,AVV50,GSV50 |
1 | ||
| 73940A - AIR BAG ASSY, REAR SEAT, LH | ||||
| 73940-06040 |
ASV50,AVV50,GSV50 |
1 | ||
| Common parts | ||||
| 82711-60270 | ||||
| 90080-11658 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90084-10038 | ||||
| 90178-A0016 | ||||

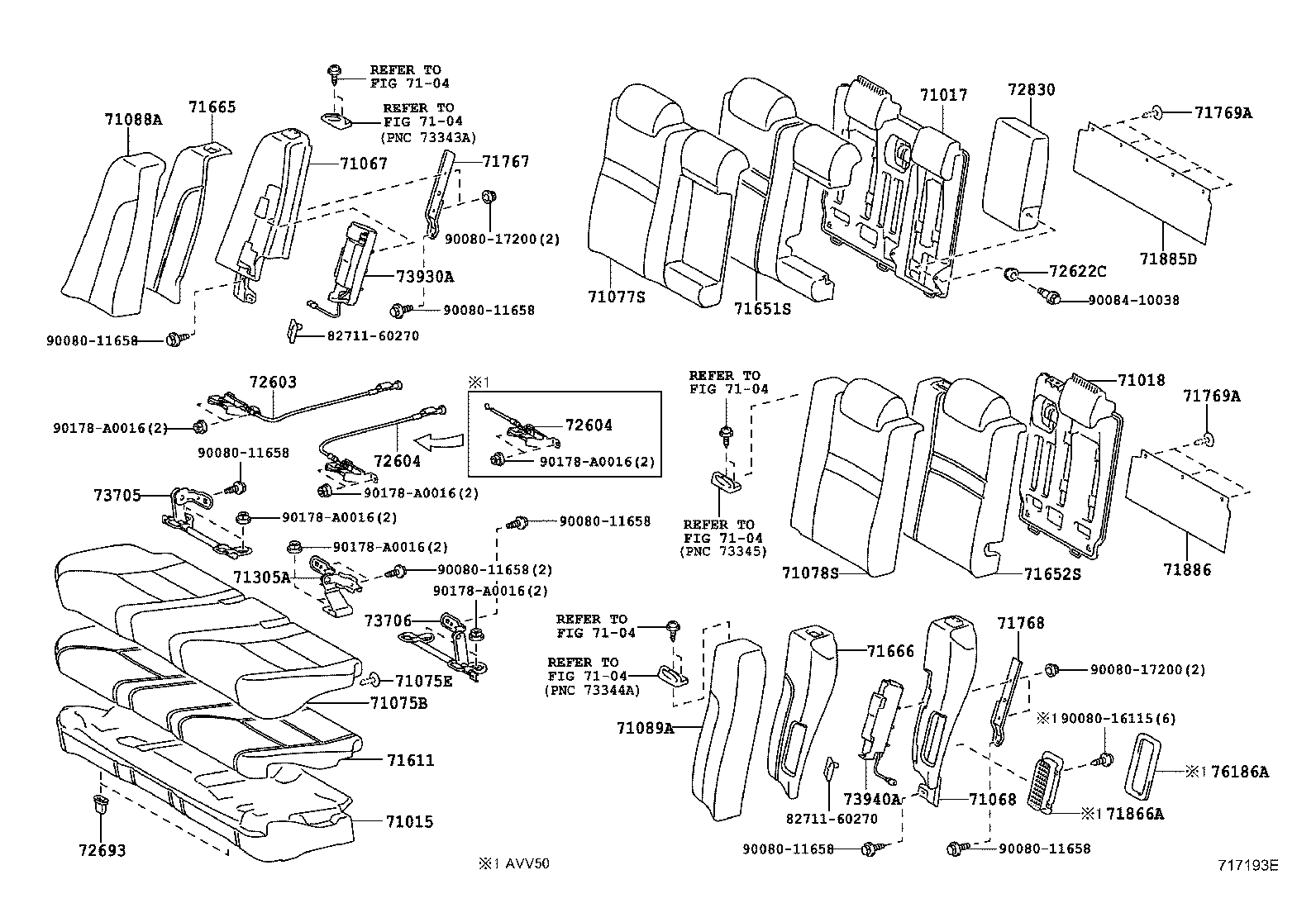

| Linked diagrams | ||||
| 7104 | ||||
