GSV50L-CETGKA (2014)
Toyota Camry/Hybrid

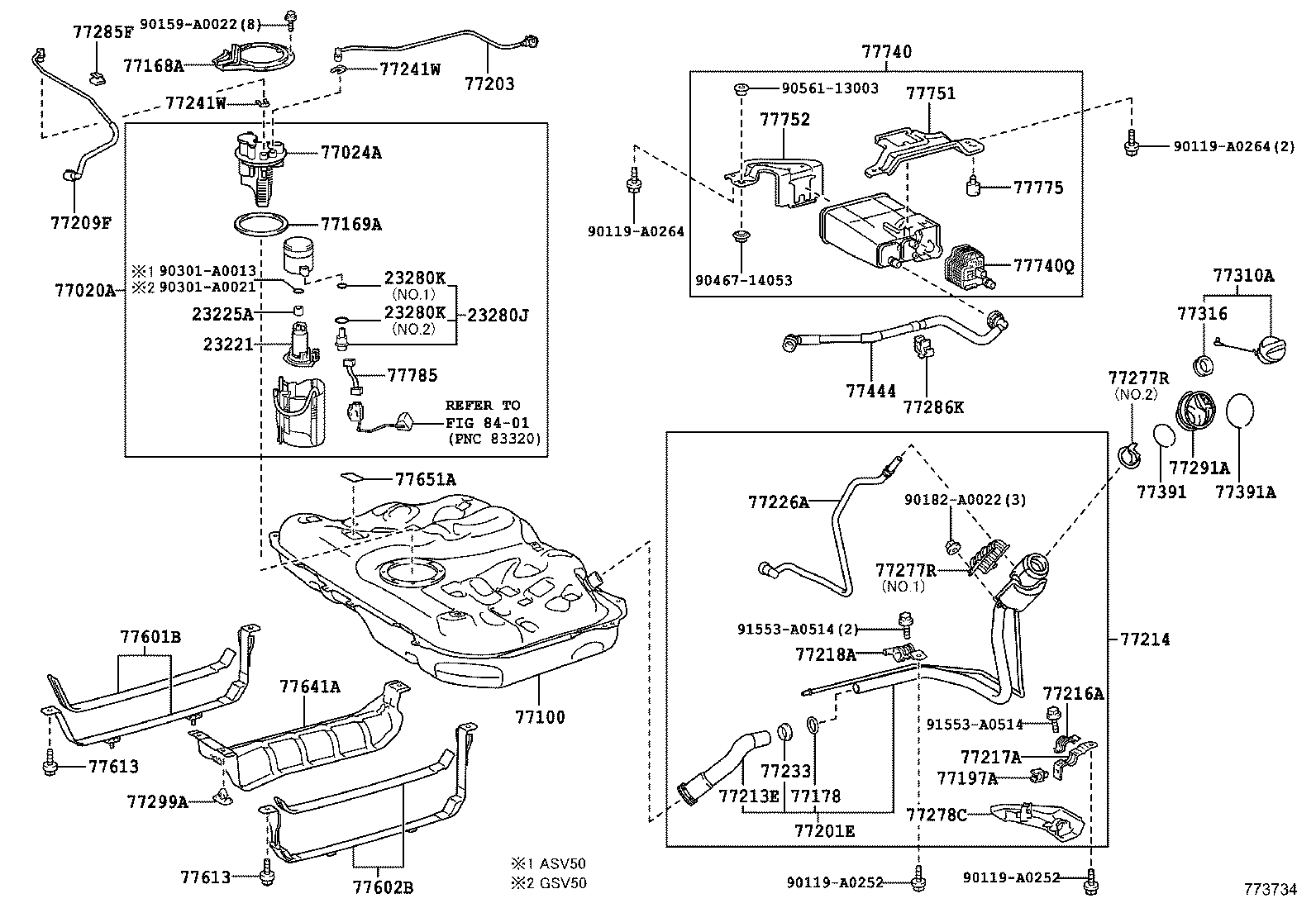

ILLUST NO. 1 OF 3(1409- )ASV50,GSV50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-31370 |
2GRFE..GSV50 |
1 | ||
| 23220-0P180 |
2GRFE..GSV50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GRFE..GSV50 |
1 | ||
| 23225-23010 |
2GRFE..GSV50 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2GRFE..GSV50 |
1 | ||
| 23280-38020 |
2GRFE..GSV50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-06292 |
GSV50 |
1 | ||
| 77020-06295 |
GSV50 |
1 | ||
| 77020-06296 |
GSV50 |
1 | ||
| 77020-06297 |
GSV50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-06271 |
GSV50 |
1 | ||
| 77024-06220 |
GSV50 |
1 | ||
| 77024-06221 |
GSV50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-06190 |
ASV50,AVV50,GSV50 |
1 | ||
| 77001-06190 |
ASV50,AVV50,GSV50 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33070 |
ASV50,AVV50,GSV50 |
1 | ||
| 77168-33070 |
ASV50,AVV50,GSV50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
ASV50,GSV50 |
1 | ||
| 77169-52010 |
ASV50,GSV50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77178-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-0R010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77197-0R010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-06161 |
ASV50,GSV50 |
1 | ||
| 77201-06160 |
ASV50,GSV50 |
1 | ||
| 77203 - TUBE SUB-ASSY, FUEL TANK BREATHER ELBOW | ||||
| 77203-06070 |
ASV50,AVV50,GSV50 |
1 | ||
| 77203-06070 |
ASV50,AVV50,GSV50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 77209-06052 |
ASV50,AVV50,GSV50 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-06060 |
ASV50,AVV50,GSV50 |
1 | ||
| 77213-06060 |
ASV50,AVV50,GSV50 |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-06160 |
ASV50,GSV50 |
1 | ||
| 77210-06162 |
ASV50,GSV50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-06100 |
ASV50,AVV50,GSV50 |
1 | ||
| 77216-06100 |
ASV50,AVV50,GSV50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-06090 |
ASV50,AVV50,GSV50 |
1 | ||
| 77217-06090 |
ASV50,AVV50,GSV50 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-06090 |
ASV50,AVV50,GSV50 |
1 | ||
| 77218-06091 |
ASV50,AVV50,GSV50 (L) |
1 | ||
| 77218-33031 |
ASV50,AVV50,GSV50 (J) |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-06120 |
ASV50,GSV50 |
1 | ||
| 77226-06120 |
ASV50,GSV50 |
1 | ||
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-06020 |
ASV50,AVV50,GSV50 |
1 | ||
| 77233-06030 |
ASV50,AVV50,GSV50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
ASV50,AVV50,GSV50 |
2 | ||
| 77241-06020 |
ASV50,AVV50,GSV50 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
ASV50,AVV50,GSV50 |
2 | ||
| 77241-06020 |
ASV50,AVV50,GSV50 |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-06050 |
ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 77277-33090 |
ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 77277-06050 |
ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 77277-33100 |
ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-06050 |
ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 77277-33090 |
ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 77277-06050 |
ASV50,AVV50,GSV50 NO.1 |
1 | ||
| 77277-33100 |
ASV50,AVV50,GSV50 NO.2 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 77278-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33110 |
ASV50,AVV50,GSV50 |
1 | ||
| 77285-33110 |
ASV50,AVV50,GSV50 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 77286-06050 |
ASV50,AVV50,GSV50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-06110 |
ASV50,AVV50,GSV50 |
1 | ||
| 77291-06160 |
ASV50,AVV50,GSV50 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52010 |
ASV50,AVV50,GSV50 |
3 | ||
| 77299-06070 |
ASV50,AVV50,GSV50 |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06040 |
ASV50,GSV50 |
1 | ||
| 77300-07030 |
ASV50,GSV50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
ASV50,GSV50 |
1 | ||
| 77316-06070 |
ASV50,GSV50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02041 |
ASV50,AVV50,GSV50 |
1 | ||
| 77391-02041 |
ASV50,AVV50,GSV50 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-06130 |
ASV50,AVV50,GSV50 |
1 | ||
| 77391-06070 |
ASV50,AVV50,GSV50 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-06100 |
ASV50,AVV50,GSV50 |
1 | ||
| 77404-06100 |
ASV50,AVV50,GSV50 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-06080 |
ASV50,AVV50,GSV50 |
1 | ||
| 77601-06080 |
ASV50,AVV50,GSV50 |
1 | ||
| 77601-06150 |
ASV50,AVV50,GSV50 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-06080 |
AVV50;ASV50,GSV50..LE,SE,XSE |
1 | ||
| 77602-06160 |
ASV50,GSV50..XLE |
1 | ||
| 77602-06150 |
AVV50;ASV50,GSV50..LE,SE,XSE |
1 | ||
| 77602-06090 |
ASV50,GSV50..XLE |
1 | ||
| 77602-06080 |
ASV50..SE;AVV50,GSV50 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASV50,AVV50,GSV50 (L) |
4 | ||
| 90119-10971 |
ASV50,AVV50,GSV50 (J) |
4 | ||
| 90119-A0267 |
ASV50,AVV50,GSV50 (L) |
4 | ||
| 90119-10971 |
ASV50,AVV50,GSV50 (J) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ASV50,AVV50,GSV50 (L) |
4 | ||
| 90119-10971 |
ASV50,AVV50,GSV50 (J) |
4 | ||
| 90119-A0267 |
ASV50,AVV50,GSV50 (L) |
4 | ||
| 90119-10971 |
ASV50,AVV50,GSV50 (J) |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77641-06010 |
ASV50,AVV50,GSV50 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ASV50,AVV50,GSV50 |
5 | ||
| 77651-20090 |
ASV50,AVV50,GSV50 |
5 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-06180 |
ASV50,GSV50 |
1 | ||
| 77740-06180 |
ASV50,GSV50 |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF004 |
ASV50,GSV50 |
1 | ||
| 90910-AF006 |
ASV50,GSV50 |
1 | ||
| 90910-AF004 |
ASV50,GSV50 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-06110 |
ASV50,GSV50 |
1 | ||
| 77751-06110 |
ASV50,GSV50 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-06050 |
ASV50,GSV50 |
1 | ||
| 77752-06050 |
ASV50,GSV50 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-47010 |
ASV50,GSV50 |
1 | ||
| 77775-47010 |
ASV50,GSV50 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-06120 |
GSV50 |
1 | ||
| 77785-06110 |
GSV50 |
1 | ||
| Common parts | ||||
| 90119-A0252 | ||||
| 90119-A0264 | ||||
| 90159-A0022 | ||||
| 90182-A0022 | ||||
| 90301-A0013 | ||||
| 90301-A0021 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 91553-A0514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
