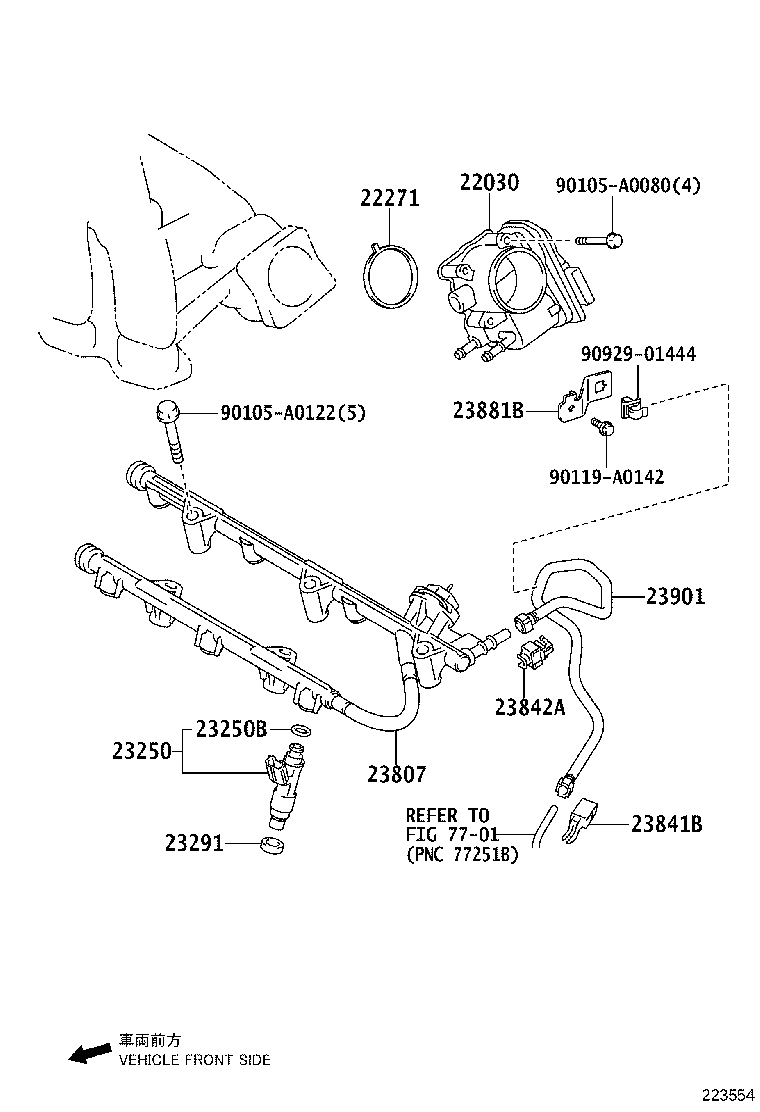

Toyota Camry/hybrid GSV50 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0P050	2GRFE..GSV50	09/2011 - 09/2014	1
22271 - GASKET, THROTTLE BODY
22271-0P020	2GRFE..GSV50	09/2011 - 09/2014	1
23250 - INJECTOR ASSY, FUEL
23209-31090	2GRFE..GSV50 (J)	09/2011 - 09/2014	6
23209-0P010	2GRFE..GSV50 (L)	09/2011 - 09/2014	6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033	2GRFE..GSV50 (J)	09/2011 - 09/2014	6
90301-A0037	2GRFE..GSV50 (L)	04/2012 - 09/2014	6
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010	2GRFE..GSV50	09/2011 - 09/2014	6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23870-0P011	2GRFE..GSV50	09/2011 - 09/2014	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31070	2GRFE..GSV50	09/2011 - 11/2013	1
23841-0P070	2GRFE..GSV50	12/2013 - 09/2014	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31040	2GRFE..GSV50	09/2011 - 09/2014	1
23881B - BRACKET, FUEL HOSE
23881-AD010	2GRFE..GSV50	09/2011 - 09/2014	1
23901 - TUBE SUB-ASSY, FUEL
23901-0P120	2GRFE..GSV50	09/2011 - 09/2014	1
Common parts
90105-A0080
90105-A0122
90119-A0142
90929-01444
Linked diagrams
7701

GSV50L-CETGKA (2011)
