Toyota C-hr (tup) ZGX10 TELEPHONE & MAYDAY

Part #	Description	Period	Qty
86101U - CORD SUB-ASSY, ANTENNA
86101-F4630	ZGX10 HAWAII SPEC&AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86101-F4630	ZGX10 HAWAII SPEC&AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86101-F4630	ZGX10 AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86101-F4630	ZGX10 PUERTO RICO SPEC&AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86101-F4630	ZGX10 AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86101-F4630	ZGX10 PUERTO RICO SPEC&AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86725 - BATTERY, MOBILEPHONE
86725-06010	ZGX10 AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86725-06010	ZGX10 AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-10020	ZGX10 AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86740-10020	ZGX10 AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86742 - COVER, TRANSCEIVER
86742-06010	ZGX10 AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86742-06010	ZGX10 AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86750A - SWITCH ASSY, MAYDAY
86750-F4020	ZGX10 AUDIO-*DA(HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
86750-F4020	ZGX10 AUDIO-DA(NS & HD RADIO) & 6SPEAKER & USB	05/2018 - 09/2019	1
Common parts
90178-W0019
94151-80600

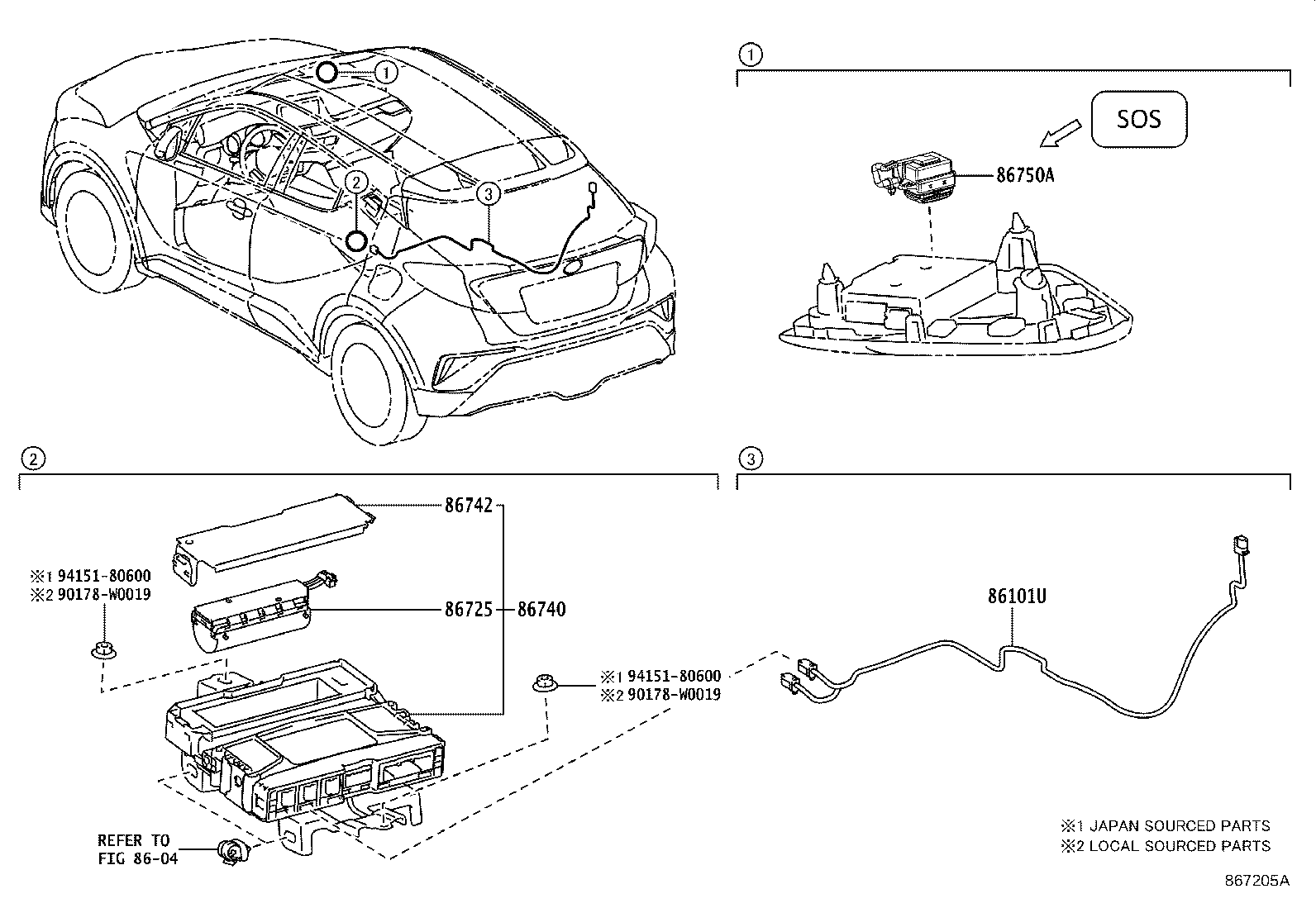

Linked diagrams
8604

ZGX10L-BHXNPA (2017)
