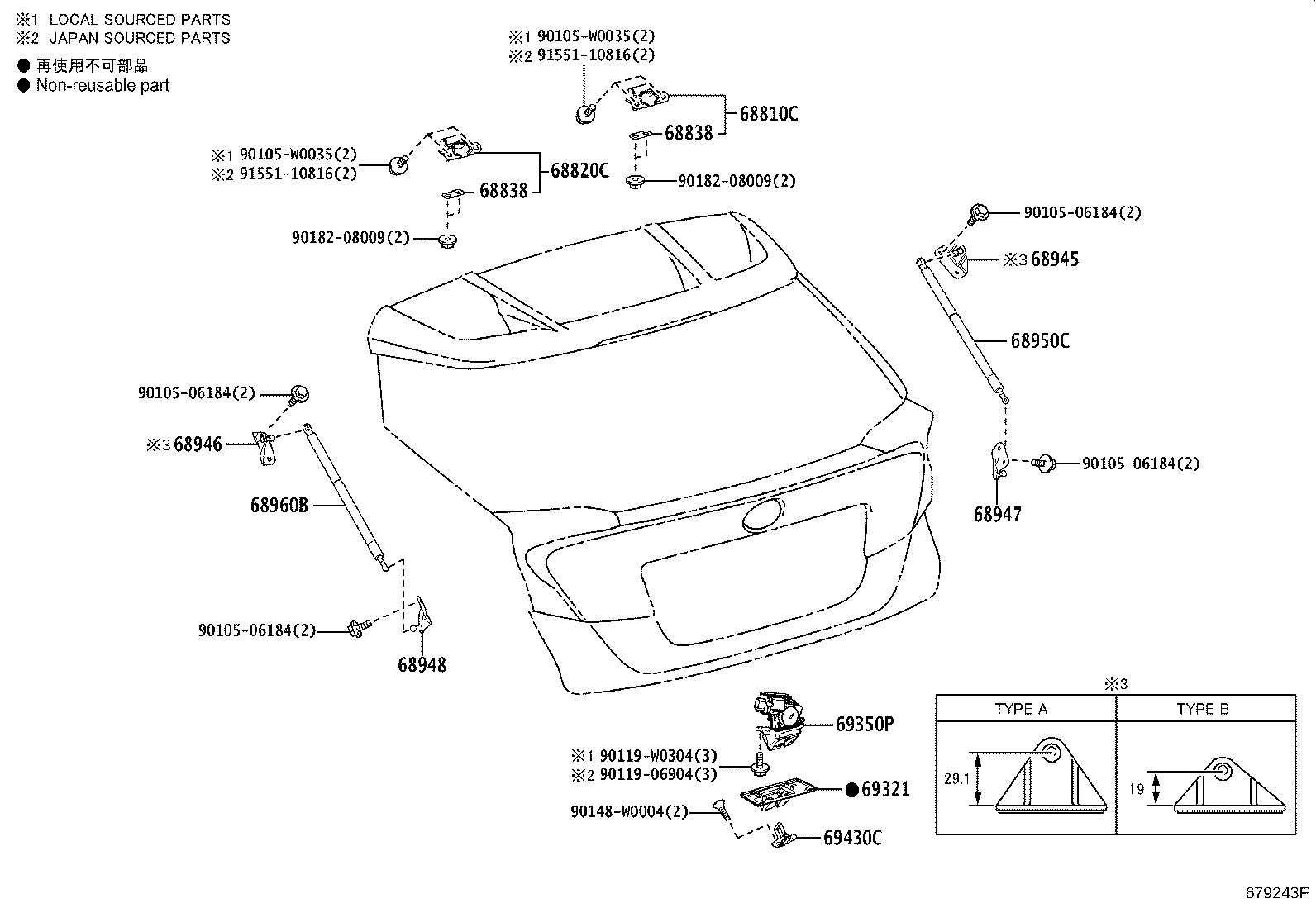

Toyota C-hr (tup) ZGX10 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68810C - HINGE ASSY, BACK DOOR, RH
68810-F4010	ZGX10	02/2017 - 09/2019	1
68820C - HINGE ASSY, BACK DOOR, LH
68810-F4010	ZGX10	02/2017 - 09/2019	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4030	ZGX10 T=2.0	02/2017 - 09/2019	2
68838-F4020	ZGX10 T=1.5	02/2017 - 09/2019	2
68838-F4010	ZGX10 T=1.0	02/2017 - 09/2019	2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4030	ZGX10 T=2.0	02/2017 - 09/2019	2
68838-F4020	ZGX10 T=1.5	02/2017 - 09/2019	2
68838-F4010	ZGX10 T=1.0	02/2017 - 09/2019	2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-F4010	ZGX10 TYPE A:REFER ILLUST.	02/2017 - 02/2019	1
68945-F4010	ZGX10 CANADA SPEC&COLD AREA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68945-F4010	ZGX10 CANADA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68945-F4050	ZGX10 TYPE B:REFER ILLUST.	02/2019 - 09/2019	1
68945-F4010	ZGX10 COLD AREA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-F4010	ZGX10 TYPE A:REFER ILLUST.	02/2017 - 02/2019	1
68946-F4050	ZGX10 TYPE B:REFER ILLUST.	02/2019 - 09/2019	1
68945-F4010	ZGX10 CANADA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68945-F4010	ZGX10 COLD AREA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68945-F4010	ZGX10 CANADA SPEC&COLD AREA SPEC,TYPE A:REFER ILLUST.	02/2019 - 04/2019	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-F4011	ZGX10	01/2018 - 09/2019	1
68947-F4010	ZGX10	02/2017 - 01/2018	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-F4011	ZGX10	01/2018 - 09/2019	1
68948-F4010	ZGX10	02/2017 - 01/2018	1
68950C - STAY ASSY, BACK DOOR, RH
68950-F4010	ZGX10 COLD AREA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68950-F4010	ZGX10 CANADA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68950-F4011	ZGX10 CANADA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68950-F4052	ZGX10	04/2019 - 09/2019	1
68950-F4011	ZGX10 CANADA SPEC&COLD AREA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68950-F4051	ZGX10 PRINT COLOR = RED	04/2018 - 04/2019	1
68950-F4011	ZGX10 COLD AREA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68950-F4050	ZGX10 PRINT COLOR = BLUE	02/2017 - 04/2018	1
68950-F4010	ZGX10 CANADA SPEC&COLD AREA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68960B - STAY ASSY, BACK DOOR, LH
68960-F4052	ZGX10	04/2019 - 09/2019	1
68960-F4010	ZGX10 CANADA SPEC&COLD AREA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68960-F4010	ZGX10 COLD AREA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68960-F4010	ZGX10 CANADA SPEC,PRINT COLOR = BLUE	02/2017 - 04/2018	1
68960-F4011	ZGX10 COLD AREA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68960-F4011	ZGX10 CANADA SPEC&COLD AREA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68960-F4011	ZGX10 CANADA SPEC,PRINT COLOR = RED	04/2018 - 04/2019	1
68960-F4050	ZGX10 PRINT COLOR = BLUE	02/2017 - 04/2018	1
68960-F4051	ZGX10 PRINT COLOR = RED	04/2018 - 04/2019	1
69321 - COVER, BACK DOOR LOCK
69321-F4010	ZGX10	02/2017 - 09/2019	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-F4010	ZGX10	02/2017 - 09/2019	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-F4010	ZGX10	02/2017 - 09/2019	1
Common parts
90105-06184
90105-W0035
90119-06904
90119-W0304
90148-W0004
90182-08009
91551-10816

ZGX10L-BHXNPA (2017)

(1702- )
