Toyota C-hr (tup) ZGX10 BACK DOOR PANEL & GLASS

Manufacturers Home
Toyota
US
C-HR (TUP)
ZGX10L-BHXNPA (2017)
6708 - BACK DOOR PANEL & GLASS

ZGX10L-BHXNPA (2017)

Toyota C-Hr (Tup)

Production Feb 2017 - Sep 2019

Engine 3ZRFAE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

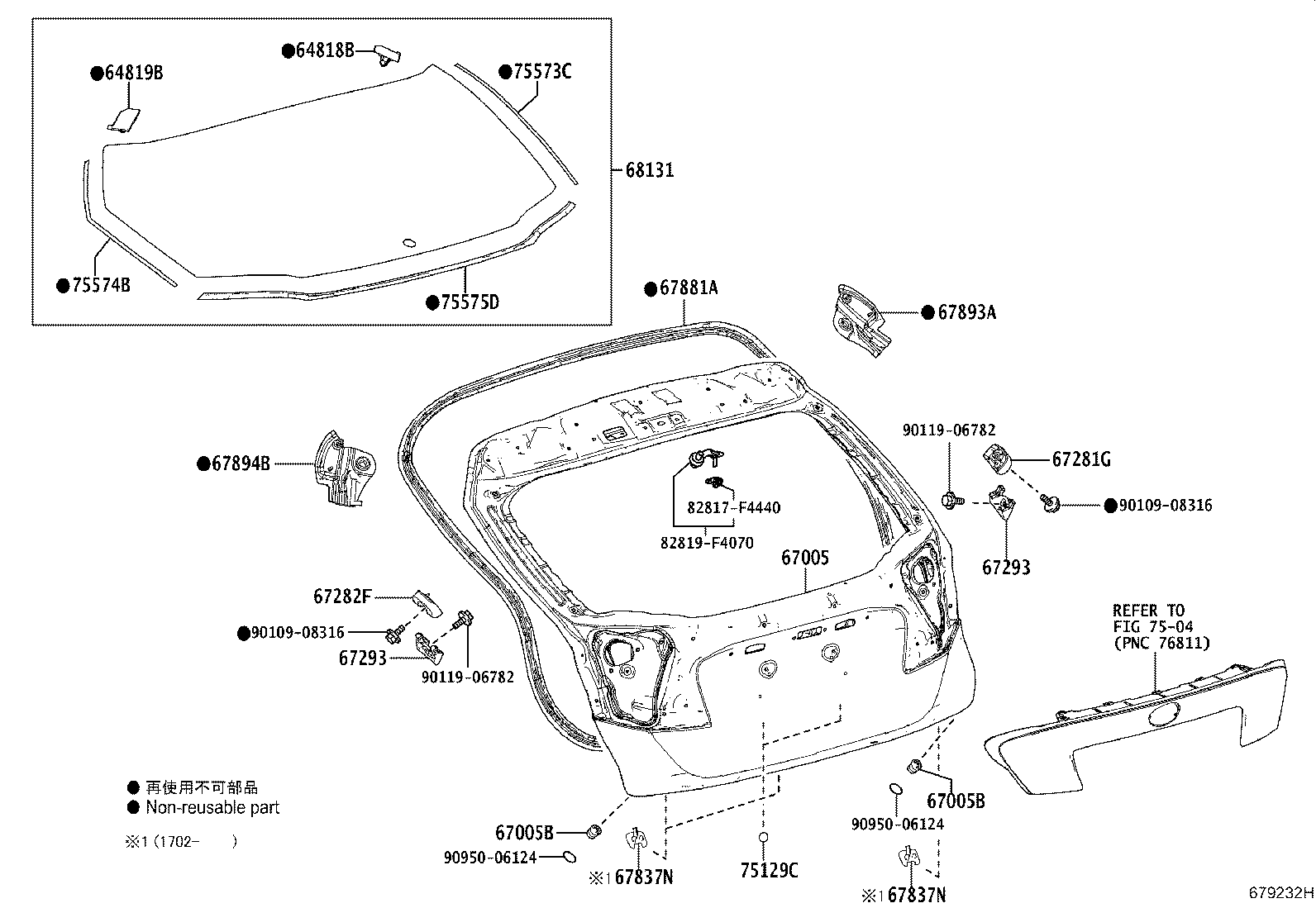

ILLUST NO. 1 OF 2(1702- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-F4010	ZGX10	02/2017 - 09/2019	1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-F4010	ZGX10	02/2017 - 09/2019	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-F4070	ZGX10	02/2017 - 09/2019	1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142	ZGX10	02/2017 - 09/2019	2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142	ZGX10	02/2017 - 09/2019	2
67281G - STOPPER, BACK DOOR, LOWER RH
67281-F4010	ZGX10	02/2017 - 09/2019	1
67282F - STOPPER, BACK DOOR, LWR LH
67281-F4010	ZGX10	02/2017 - 09/2019	1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-F4010	ZGX10 RH	02/2017 - 09/2019	1
67294-F4010	ZGX10 LH	02/2017 - 09/2019	1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-F4010	ZGX10 RH	02/2017 - 09/2019	1
67294-F4010	ZGX10 LH	02/2017 - 09/2019	1
67837N - SEAL, BACK DOOR DUST PROOF
67837-F4070	ZGX10	02/2017 - 09/2019	3
67837N - SEAL, BACK DOOR DUST PROOF
67837-F4070	ZGX10	02/2017 - 09/2019	3
67881A - WEATHERSTRIP, BACK DOOR
67881-F4011	ZGX10	03/2017 - 09/2019	1
67881-F4010	ZGX10	02/2017 - 03/2017	1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-F4010	ZGX10	02/2017 - 09/2019	1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-F4010	ZGX10	02/2017 - 09/2019	1
68131 - GLASS, BACK DOOR
68105-F4011	ZGX10	02/2017 - 09/2019	1
75129C - CUSHION, REAR LICENCE PLATE
75129-40010	ZGX10	02/2017 - 09/2019	2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-F4010	ZGX10	02/2017 - 09/2019	1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-F4010	ZGX10	02/2017 - 09/2019	1
75575D - MOULDING, BACK WINDOW, LOWER
75575-F4010	ZGX10	02/2017 - 09/2019	1
Common parts
82817-F4440
82819-F4070
90109-08316
90119-06782
90950-06124
Linked diagrams
7504

ILLUST NO. 2 OF 2(1702- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
64338C - HOOK, PACKAGE TRAY TRIM GARNISH, RH
64338-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
64338-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
64338D - HOOK, PACKAGE TRAY TRIM GARNISH, LH
64338-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
64338-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
64780A - PANEL ASSY, BACK DOOR TRIM
64780-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
64780-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
64790-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-W0005	ZGX10	02/2017 - 09/2019	13
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10167	ZGX10	02/2017 - 09/2019	2
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10167	ZGX10	02/2017 - 09/2019	2
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67765-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67766-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67767B - COVER, BACK DOOR SERVICE HOLE, NO.3
67767-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67767-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
67847-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67847-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67848-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67937-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010	ZGX10	02/2017 - 09/2019	6
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
67771-58010	ZGX10	02/2017 - 09/2019	6
67938A - GARNISH, BACK DOOR SIDE, LH
67938-F4010C1	ZGX10 BLACK,TRIM2#	05/2018 - 09/2019	1
67938-F4010C0	ZGX10 EU BLACK,TRIM2#	02/2017 - 05/2018	1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-W0005	ZGX10	02/2017 - 09/2019	4
Common parts
90164-40105
Linked diagrams
7401

ZGX10L-BHXNPA (2017)

ILLUST NO. 1 OF 2(1702- )

ILLUST NO. 2 OF 2(1702- )
