ZGX10L-BHXNPA (2017)
Toyota C-Hr (Tup)

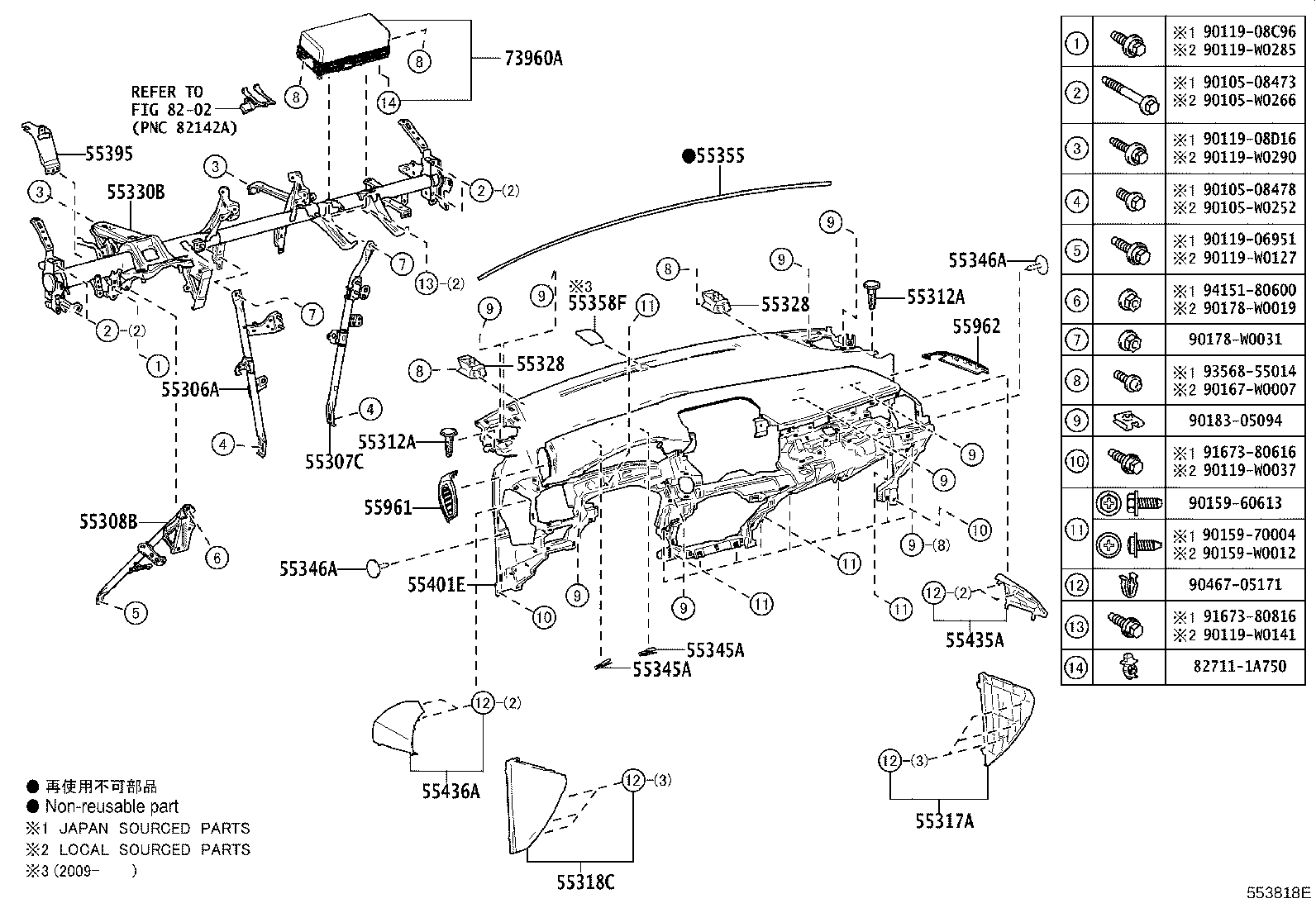

ILLUST NO. 1 OF 2(1702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-F4010 |
ZGX10 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-F4010 |
ZGX10 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-F4010 |
ZGX10 |
1 | ||
| 55308-F4011 |
ZGX10 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
ZGX10 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
ZGX10 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55317-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55318-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-F4030 |
ZGX10 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-F4030 |
ZGX10 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-F4010 |
ZGX10 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
ZGX10 |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
ZGX10 |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-05161C0 |
ZGX10 BLACK,(J) |
2 | ||
| 90467-W0001C0 |
ZGX10 BLACK,(L) |
2 | ||
| 90467-05161C9 |
ZGX10 BLACK,(J) |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-05161C0 |
ZGX10 BLACK,(J) |
2 | ||
| 90467-W0001C0 |
ZGX10 BLACK,(L) |
2 | ||
| 90467-05161C9 |
ZGX10 BLACK,(J) |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-F4010 |
ZGX10 |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-F4010 |
ZGX10 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-F4020C1 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55401-F4090C2 |
ZGX10 LICORICE,TRIM20 |
1 | ||
| 55401-F4090C4 |
ZGX10 BLACK,TRIM20,21,22 |
1 | ||
| 55401-F4090C3 |
ZGX10 BLACK,TRIM20,21,22 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55435-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55436-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55961-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55962-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-F4020 |
ZGX10 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-W0252 | ||||
| 90105-W0266 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90119-W0141 | ||||
| 90119-W0285 | ||||
| 90119-W0290 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-W0012 | ||||
| 90167-W0007 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

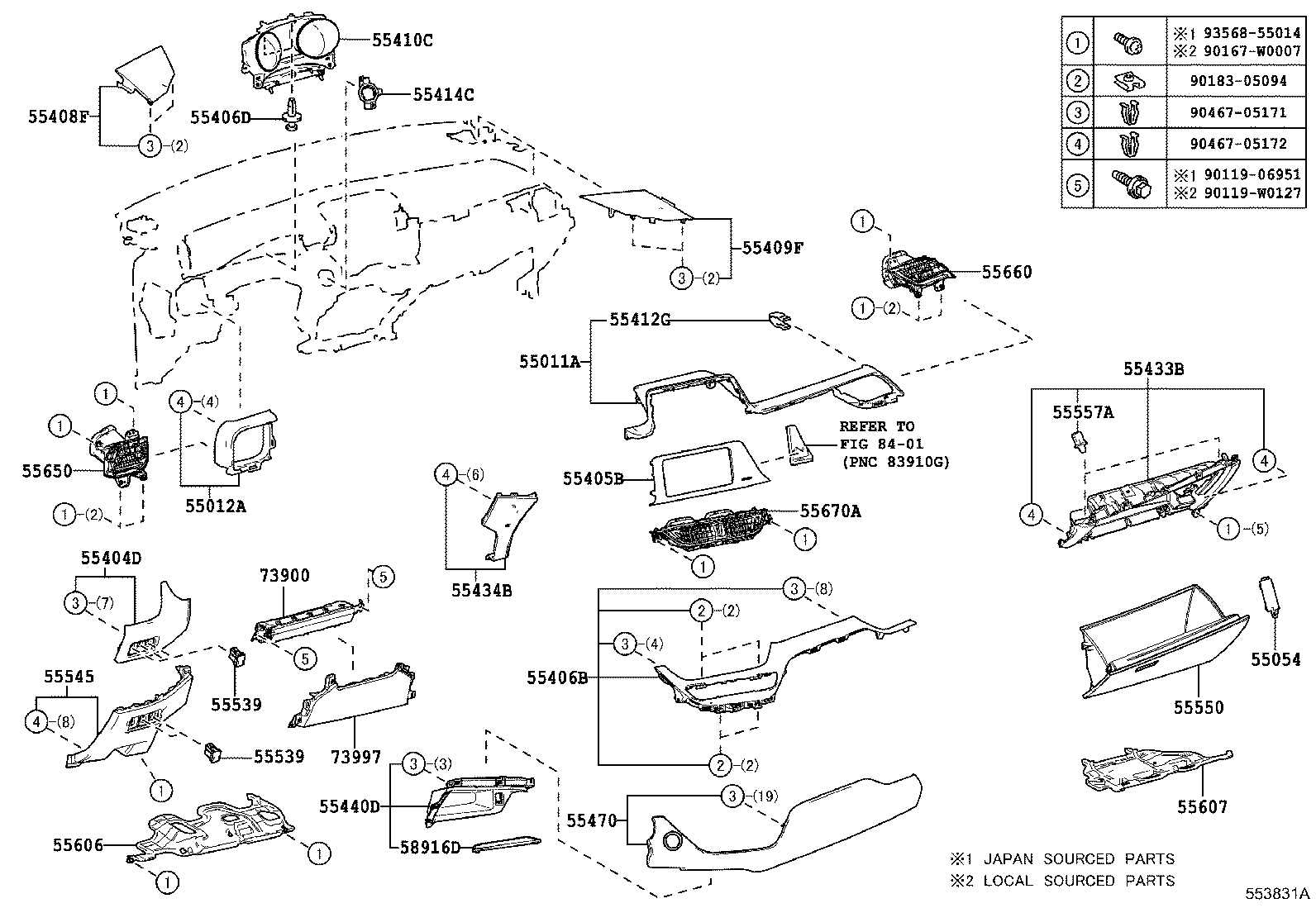

ILLUST NO. 2 OF 2(1702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-F4090B1 |
ZGX10 SOFT SILVER,TRIM20,21 |
1 | ||
| 55011-F4010B0 |
ZGX10 GUN METAL,TRIM2# |
1 | ||
| 55011-F4090B0 |
ZGX10 GUN METAL,TRIM20 |
1 | ||
| 55011-F4090J0 |
ZGX10 CYAN,TRIM22 |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-F4010B0 |
ZGX10 GUN METAL,TRIM2# |
1 | ||
| 55012-F4010B0 |
ZGX10 GUN METAL,TRIM20 |
1 | ||
| 55012-F4010J1 |
ZGX10 CYAN,TRIM22 |
1 | ||
| 55012-F4010B1 |
ZGX10 SOFT SILVER,TRIM20,21 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZGX10 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55404-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-F4190 |
ZGX10 |
1 | ||
| 55405-F4020 |
ZGX10 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-F4010 |
ZGX10 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
ZGX10 BLACK |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55408-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55409-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-F4010 |
ZGX10 |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-05172 |
ZGX10 |
11 | ||
| 90467-05172 |
ZGX10 |
9 | ||
| 55414C - BEZEL, STARTER SWITCH | ||||
| 55414-F4030 |
ZGX10 WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55433-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55434-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-F4010 |
ZGX10 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-F4020C0 |
ZGX10 WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)),EU BLACK,TRIM2# |
1 | ||
| 55470-F4020C1 |
ZGX10 WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)),BLACK,TRIM2# |
1 | ||
| 55470-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55470-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C1 |
ZGX10 BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM),BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 CLEARANCE & BACK SONAR-WITH(*IPA) & WITH(*ICS),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C1 |
ZGX10 BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM),BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK |
1 | ||
| 55539-28160C1 |
ZGX10 CLEARANCE & BACK SONAR-WITH(*IPA) & WITH(*ICS),BLACK |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-F4040C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55545-F4040C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-F4032C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 55550-F4030C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
ZGX10 |
2 | ||
| 55557-78010 |
ZGX10 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-F4011 |
ZGX10 |
1 | ||
| 55606-F4010 |
ZGX10 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-F4010 |
ZGX10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-F4010 |
ZGX10 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-F4010 |
ZGX10 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-F4010 |
ZGX10 |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-F4010 |
ZGX10 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73901-F4010 |
ZGX10 |
1 | ||
| 73997 - DOOR, INSTRUMENT PANEL AIR BAG, LOWER NO.1 | ||||
| 73997-F4010C1 |
ZGX10 BLACK,TRIM2# |
1 | ||
| 73997-F4010C0 |
ZGX10 EU BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
