ZGX10L-AHXNPA (2018)

Toyota C-Hr (Jpp)

Production Jan 2018 - Oct 2019
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1801- )

Click highlighted areas on diagram

diagram 04423 42601 42601A 42601C 42607 42611G 42611J
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

ZGX10

 4
42601 - WHEEL, DISC
42611-10360

ZGX10

18X7J,#,TYPE C:REFER ILLUST.

 4
42611-F4010

ZGX10

17X6.5J,#,TYPE F:REFER ILLUST.

 4
42611-10340

ZGX10

17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE A:REFER ILLUST.

 4
42611-10350

ZGX10

17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE B:REFER ILLUST.

 4
42611-10371

ZGX10

18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE,TYPE D:REFER ILLUST.

 4
42611-10440

ZGX10

17X6.5J,#,TYPE F:REFER ILLUST.

 4
42611-10371

ZGX10

18X7J,#,TYPE D:REFER ILLUST.

 4
42611-10360

ZGX10

18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE,TYPE C:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-30F31

ZGX10

18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.

 1
42611-30F32

ZGX10

18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.

 1
42611-30F31

ZGX10

18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST.

 1
42611-21280

ZGX10

16X4T,TYPE E:REFER ILLUST.

 1
42611-30F32

ZGX10

18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

ZGX10

TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE

 20
90942-01033

ZGX10

TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE

 20
90942-01007

ZGX10

 20
90942-01033

ZGX10

 20
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-33050

ZGX10

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05039

ZGX10

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

ZGX10

 1

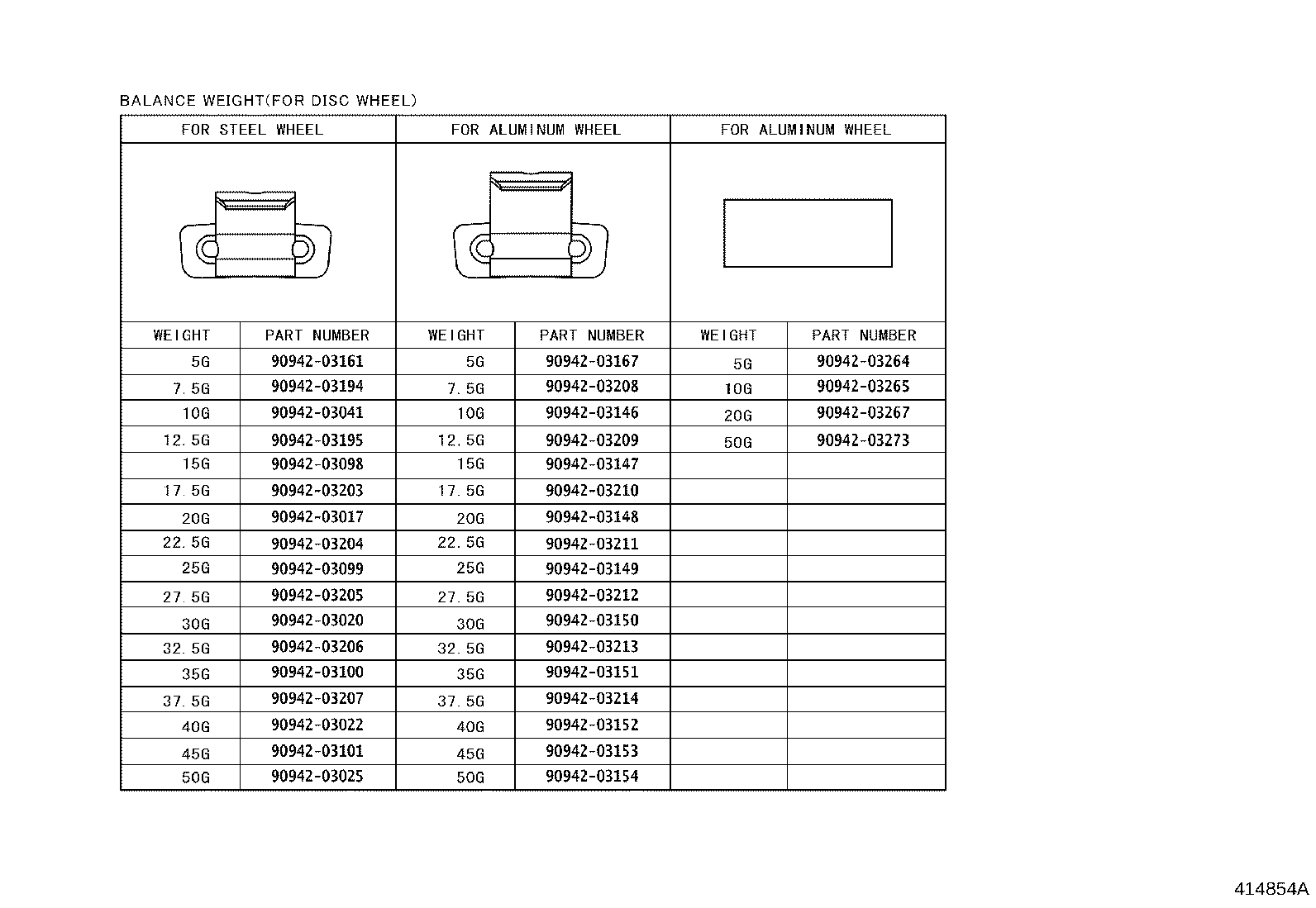

ILLUST NO. 3 OF 3(1806- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203041 9094203098 9094203099 9094203100 9094203101 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ILLUST NO. 2 OF 3(1801- )

Click highlighted areas on diagram

diagram 42601 42601A 42603 42621
Part # Description Qty Price
42601 - WHEEL, DISC
42611-10360

ZGX10

18X7J,#,TYPE C:REFER ILLUST.

 4
42611-F4010

ZGX10

17X6.5J,#,TYPE F:REFER ILLUST.

 4
42611-10340

ZGX10

17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE A:REFER ILLUST.

 4
42611-10350

ZGX10

17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE B:REFER ILLUST.

 4
42611-10371

ZGX10

18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE,TYPE D:REFER ILLUST.

 4
42611-10440

ZGX10

17X6.5J,#,TYPE F:REFER ILLUST.

 4
42611-10371

ZGX10

18X7J,#,TYPE D:REFER ILLUST.

 4
42611-10360

ZGX10

18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE,TYPE C:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-30F31

ZGX10

18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.

 1
42611-30F32

ZGX10

18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.

 1
42611-30F31

ZGX10

18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST.

 1
42611-21280

ZGX10

16X4T,TYPE E:REFER ILLUST.

 1
42611-30F32

ZGX10

18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST.

 1
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-48140

ZGX10

*ALU,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE

 4
42603-48140

ZGX10

*ALU

 4
42603-48140

ZGX10

*ALU,TIRE & DISC WHEEL-225/50R18 ALUMINUM ALL SEASON TIRE

 4
42621 - CAP, WHEEL
42602-F4010

ZGX10

 4
42602-10180

ZGX10

 4
