ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

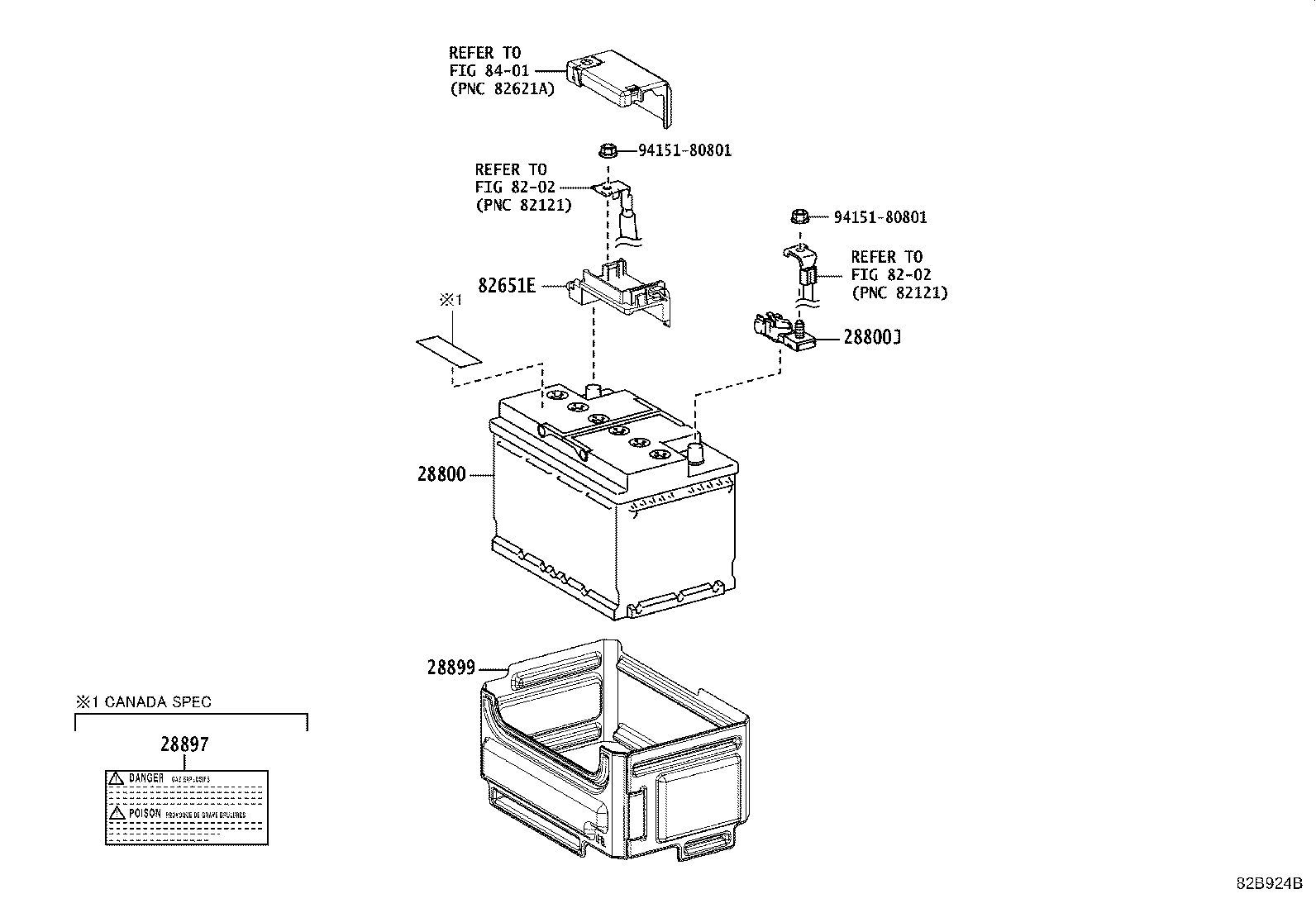

Click highlighted areas on diagram

diagram 28800 28800J 28897 28899 8202 8202 82651E 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-25010

3ZRFAE..ZGX10

LN2

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

3ZRFAE..ZGX10

 1
28897 - PLATE, BATTERY CAUTION
28897-31021

3ZRFAE..ZGX10

CANADA SPEC

 1
28899 - INSULATOR, BATTERY
28899-47040

3ZRFAE..ZGX10

 1
82651E - BLOCK, TERMINAL
82651-10010

ZGX10

 1
Common parts
94151-80801
Linked diagrams
8202
8401
